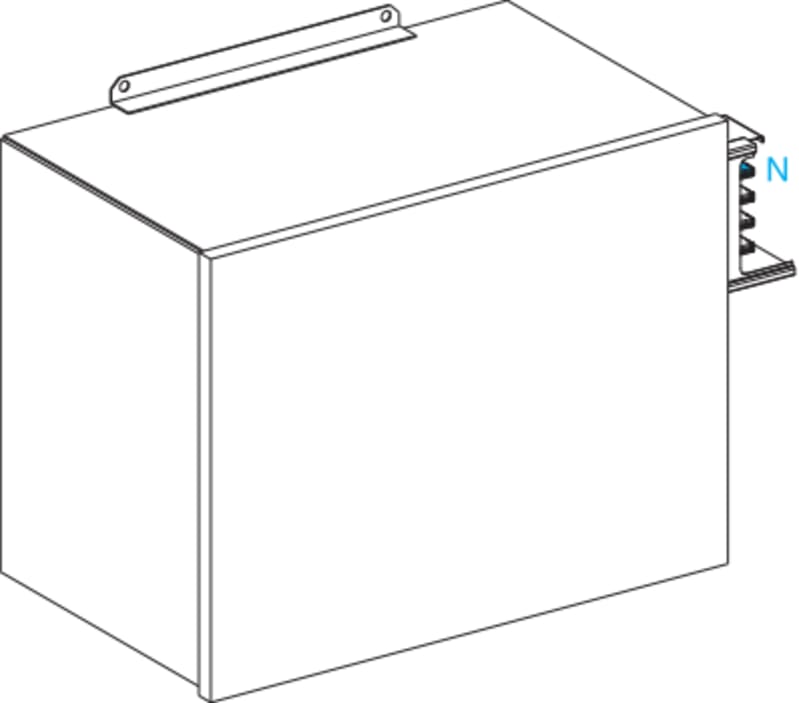

End feed LH 800-1000A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA1000ABG4 End feed V 800-1000A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA1000ABG4
- EAN / GTIN
- 3606480003479
- Sales unit
- pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Classic
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 1000 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 240 mm² flexible; Lug for 300 mm² rigid
- Width
- 753 mm
- Depth
- 370 mm
- Height
- 457 mm
- Product weight
- 25 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 40.500 cm
- Package 1 Width
- 52.500 cm
- Package 1 Length
- 78.000 cm
- Package 1 Weight
- 29.600 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 1229 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated current AC 50 Hz
- 1000 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480003479
- SAP 1200422154
- Code 82471000
Product Documentation
More from Schneider Electric
Schneider Electric

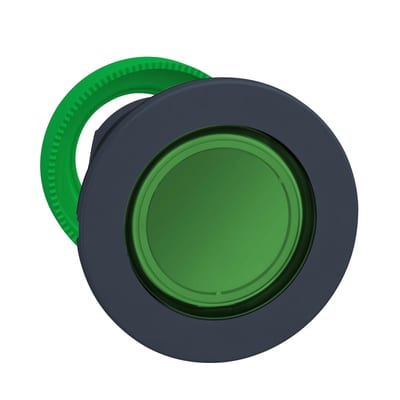

Push-button flush for LED green (ZB5FH033)
Schneider Electric
Cableminneforleng 4P G265-500
LA9G4102
Schneider Electric

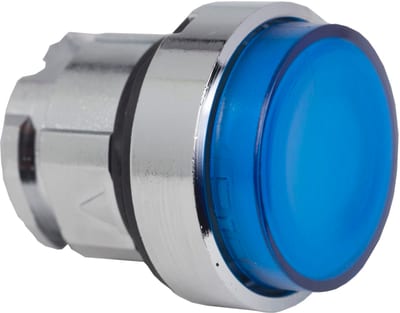

Schneider Electric Harmony XB4 Illuminated Push-Button Head, Projecting, Blue, BA9s
ZB4BW16
Schneider Electric

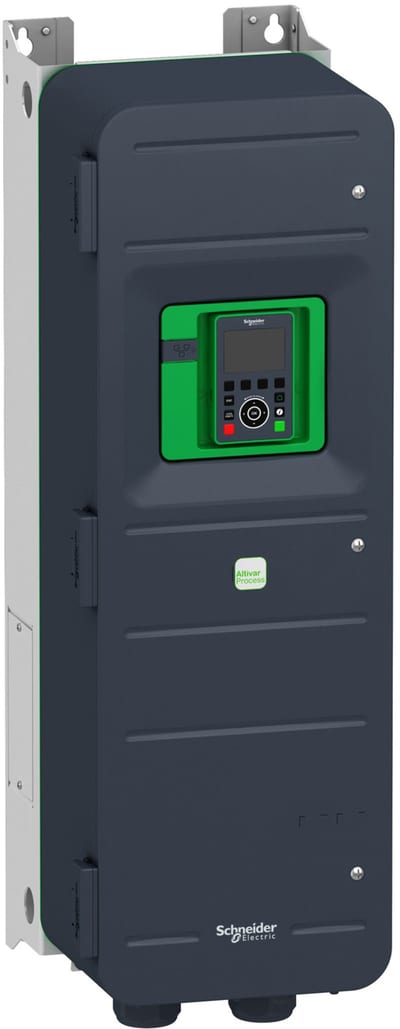

Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 37kW, 400 to 480V, with braking unit, IP55 ATV950D37N4
Schneider Electric

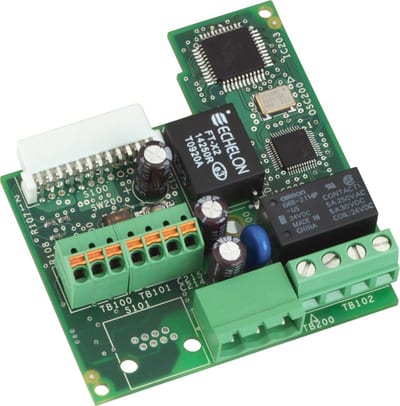

Schneider Electric communication card LonWorks VW3A21212
Schneider Electric

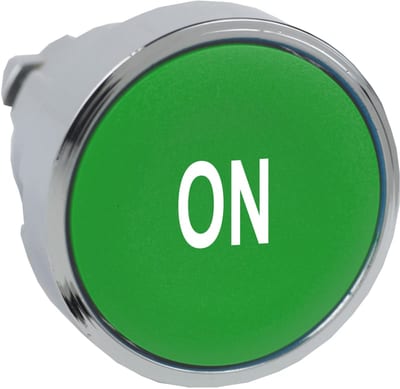

Push-Button Head GREEN,MERK.ON
ZB4BA341
Schneider Electric

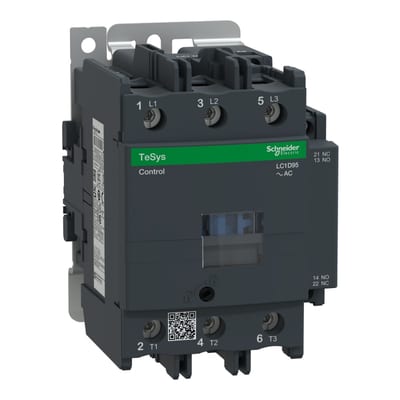

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 95A, 440V, AC 50/60Hz coil, screw clamp terminals LC1D95R7
Schneider Electric

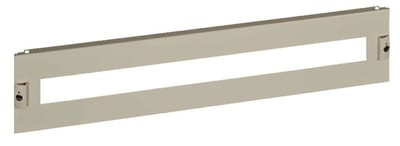

Front plate 4M ModProd B850MM PrismaSeT G
