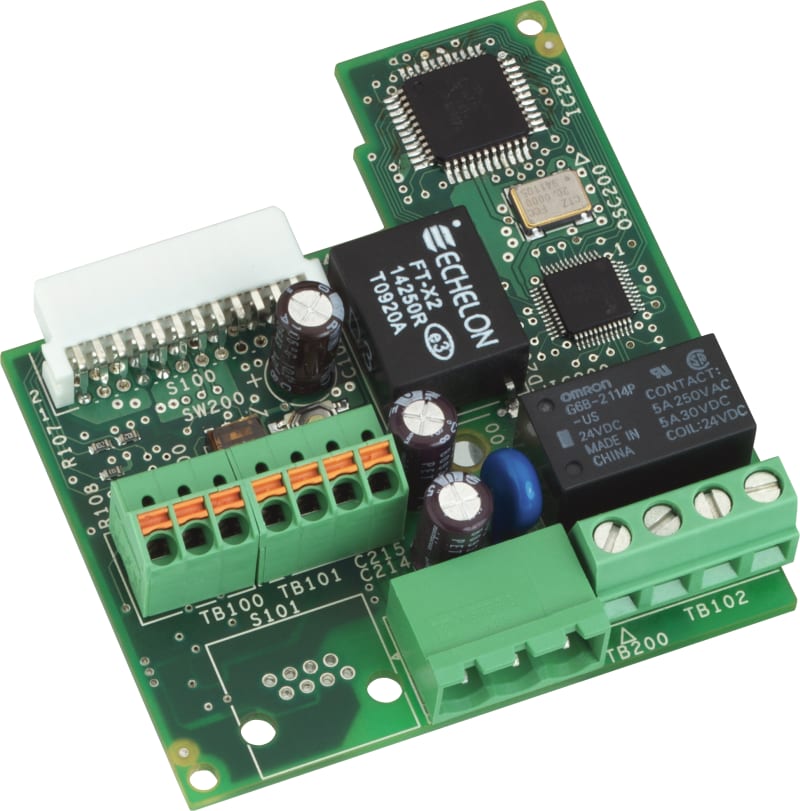

Schneider Electric communication card LonWorks VW3A21212
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A21212 LonWorks short for ATV212.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A21212
- EAN / GTIN
- 3606480388590
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Product or component type
- Communication card
- Range compatibility
- Altivar 212
- Communication port protocol
- LonWorks
- Electrical connection
- Screw terminal NETA, NETB LonWorks transmission/reception data; Screw terminal SHLD LonWorks communication shield; Screw terminal G/E grounding terminal; Spring terminal F programmable logic input; Spring terminal R programmable contact input; Spring terminal VIB multifunction programmable analog input; Spring terminal CC control circuit equipotential; Spring terminal P24 power supply output; Screw terminal FLA, FLB, FLC multifunction programmable relay output
- Input type
- Multifunction programmable logic input F < 24 V DC 5 mA sink or source; Multifunction programmable contact input R < 24 V DC 5 mA sink or source; Multifunction programmable analog input VIB 10 V DC 30 kOhm
- Output type
- Multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1; Multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4; Multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A; Power supply output P24 24 V DC 50 mA
- Product weight
- 0.05 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Country of origin
- ID
- Warranty (in months)
- 18
- Type of accessory/spare part
- Communication module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606480388590
- SAP 1000473337
- Code 8133629
Product Documentation
