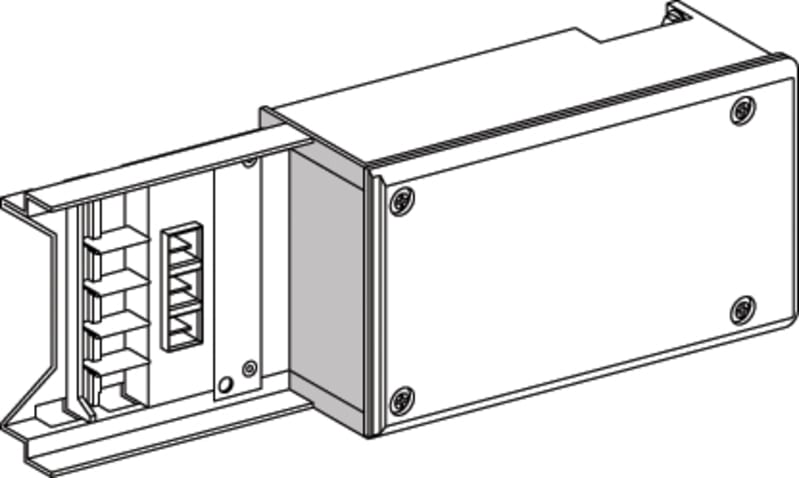

End feed 100A LH/PURE WHITE (KNA100AB4)

Schneider Electric KNA100AB4 End feed 100A V/H.

Manufacturer part number (MPN)

KNA100AB4

EAN / GTIN

3606480002991

Sales unit

pcs

Rated current

100 A

Range of product

Canalis

Product name

KN

Device short name

KNA

Product compatibility

Canalis KNA busbar trunking 100 A

Product or component type

Feed unit

Conductors material

Aluminium

[Ie] rated operational current

100 A

[Ue] rated operational voltage

230...500 V

Number of circuits

1

Busbar trunking polarity

3L + N + PE; L + N + PE

Protection type

Without protection

Control type

Without

Colour

White (RAL 9001)

Provided equipment

End cover

Mounting location

Left; Right

mounting mode

By clips

Mounting support

Busbar

Connections - terminals

Lug for 35 mm² flexible; Lug for 50 mm² rigid

Width

340 mm

Depth

112 mm

Height

127 mm

Product weight

1.12 kg

Standards

IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.500 cm

Package 1 Width

14.000 cm

Package 1 Length

35.000 cm

Package 1 Weight

1.170 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

45

Package 2 Height

73.000 cm

Package 2 Width

62.000 cm

Package 2 Length

92.000 cm

Package 2 Weight

81.500 kg

Country of origin

FR

Warranty (in months)

18

Model

Single

RAL-number

9001

Number of poles

4

Length

340 mm

Degree of protection (IP)

IP55

Power supply position

End

Rated current AC 50 Hz

100 A

HS Code

8536.90

• EAN 3606480002991
• SAP 1000470783
• Code 8787944
