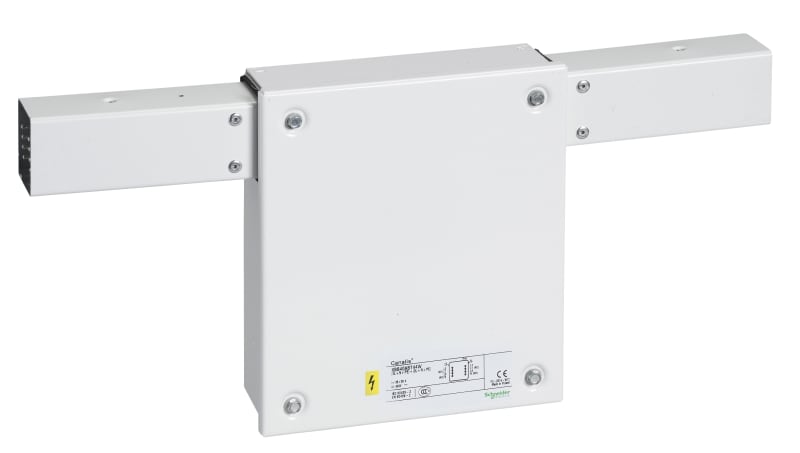

Schneider Electric Canalis KBB 40 A Central Feed Unit 3L+3L+N

Schneider Electric KBB40ABT44W is a central feed unit for Canalis KBB busbar trunking rated 25 to 40 A. It supplies two circuits with 3L+N+PE configuration and integrates a DALI communication port. The unit clips onto the busbar and ships with an end cover. Housing is white RAL 9003 with IP55 protection.

Manufacturer part number (MPN)

KBB40ABT44W

EAN / GTIN

3606480001130

Sales unit

pcs

Package quantity

22 pcs

Rated current

40 A

Range of product

Canalis

Device short name

KBB

Product compatibility

Canalis KBB busbar trunking 25…40 A

Offer type

Classic; Control system

Product or component type

Feed unit

Conductors material

Aluminium

[Ie] rated operational current

40 A; 25 A

[Ue] rated operational voltage

230...400 V

Number of circuits

2

Busbar trunking polarity

3L + N + PE; L + N + PE

Protection type

Without protection

Control type

Communicating

Communication port protocol

DALI

Colour

White (RAL 9003)

Provided equipment

End cover

Mounting location

Central

mounting mode

By clips

Mounting support

Busbar

Connections - terminals

Terminal block - Pg 21 - screw clamp connector for 6…10 mm²

Width

244 mm

Depth

103.5 mm

Height

75.5 mm

Product weight

500 g

Standards

IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

Country of origin

CZ

Warranty (in months)

18

Model

Double

RAL-number

9003

Number of poles

10

Length

244 mm

Degree of protection (IP)

IP55

Power supply position

Centre

Rated voltage AC 50 Hz

230–400 V

Rated current AC 50 Hz

40 A

HS Code

8536.90

• EAN 3606480001130
• SAP 1200270032
• Code 82238271
