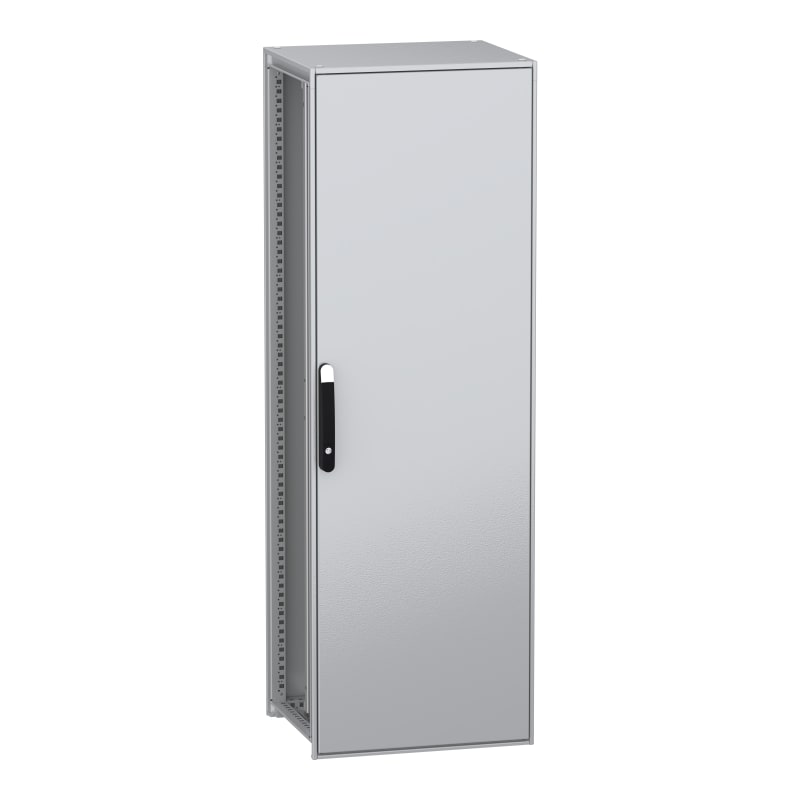

Floor-standing cabinet SFN m/m.pl 1800X600X500
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN18650P Floor-standing cabinet byggbart, PanelSeT SFN, with mounting plate, IP55, 1800x600x500.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN18650P
- EAN / GTIN
- 3606486102749
- Sales unit
- pcs
- Dimensions
- 1800×600×500
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 1800 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 500 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 1 mounting plate
- Structure type
- Formed from a single section; Vertical uprights joined with top and bottom frames; Panels and doors built into the structure; Perforated structure with a pitch of 25 mm
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Plain
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Front; Rear
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 84.0 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 1800 mm
- Depth
- 500 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486102749
- SAP 1200727698
- Code 83866978
