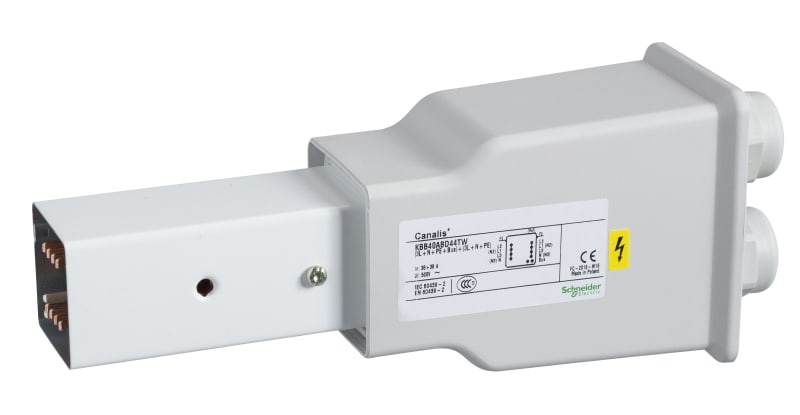

End feed 40A PURE WHITE 2X3L+N TW
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KBB40ABD44TW End feed 40A H 2X3L+N TW.
Technical Specifications
- Manufacturer part number (MPN)
- KBB40ABD44TW
- EAN / GTIN
- 3606480000966
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 40 A
- Range of product
- Canalis
- Device short name
- KBB
- Product compatibility
- Canalis KBB busbar trunking 25…40 A
- Offer type
- Control system
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 40 A; 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 2
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Communicating
- Communication port protocol
- DALI; KNX
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Right
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 21 - screw clamp connector for 6…10 mm²
- Width
- 244 mm
- Depth
- 103.5 mm
- Height
- 75.5 mm
- Product weight
- 500 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Double
- RAL-number
- 9003
- Number of poles
- 10
- Length
- 244 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–400 V
- Rated current AC 50 Hz
- 40 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480000966
- SAP 1000572008
- Code 81084363
Product Documentation
More from Schneider Electric
Schneider Electric

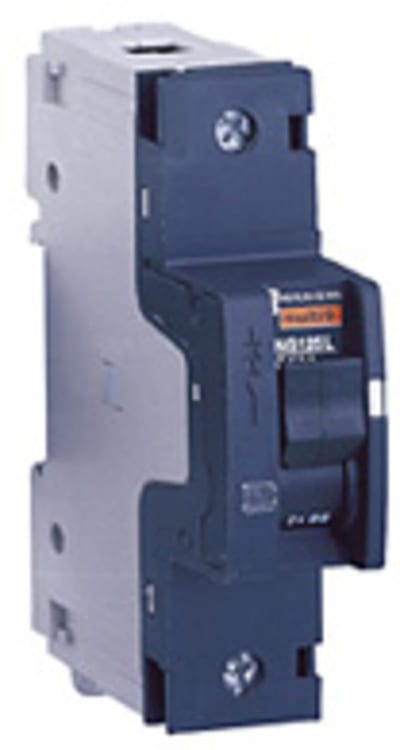

NG125L/B 40-1 Modular Power Switch
18746
Schneider Electric

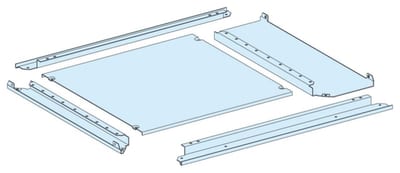

Bottom plate IP55 PrismaSeT P B650+150 D400
LVS08487
Schneider Electric

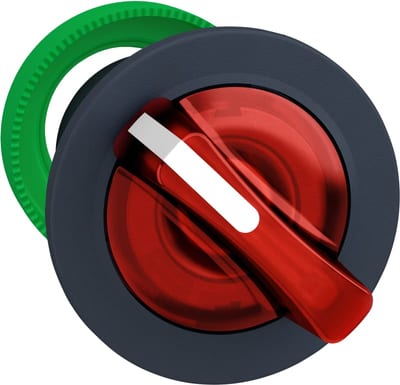

Selector switch flush for LED 2 pos red (ZB5FK1243)
Schneider Electric

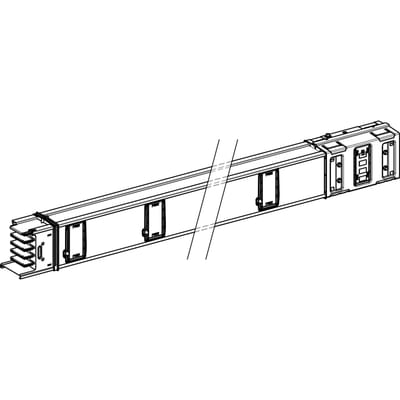

RAIL 500A 5M 10 Outlet
KSA500ED45010
Schneider Electric

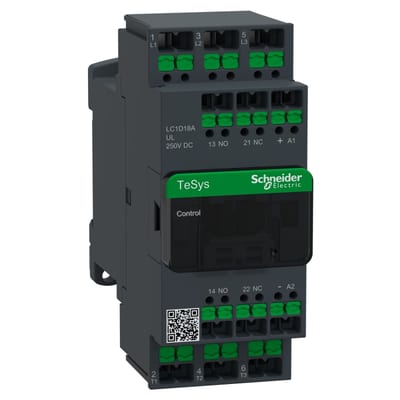

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 18A, 250 V DC coil, snap-in terminals LC1D18AUD
Schneider Electric

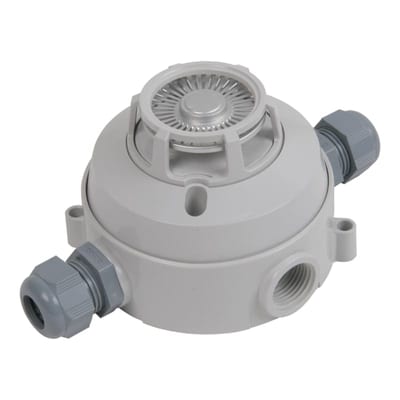

Schneider Electric FFS06406296 Conventional Heat Detector 80°C
Schneider Electric
Motordrossel 481A X3 IP00
VW3A5106
Schneider Electric

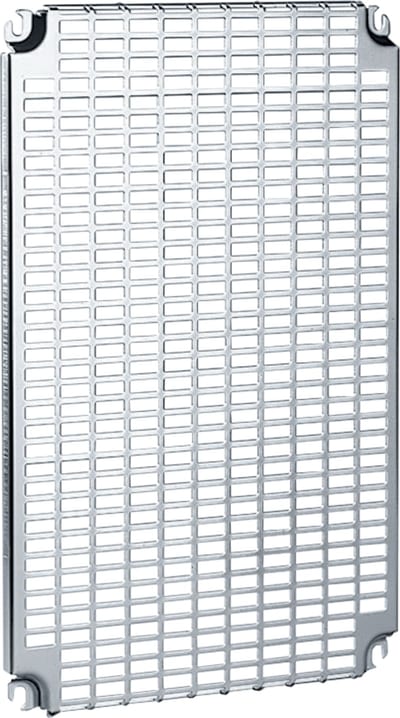

Telequick plate for 36X54 PLS
