Motordrossel 481A X3 IP00
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5106 Motordrossel 481A X3 IP00.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5106
- EAN / GTIN
- 3389119201537
- Sales unit
- pcs
- IP rating
- IP00
- Product or component type
- Motor choke
- Range compatibility
- Altivar 61; Altivar 71; Altivar Process ATV600; Altivar 61Q; Altivar Process ATV900; Altivar 71Q
- Product specific application
- Output filter
- [In] rated current
- 481 A
- Product compatibility
- ATV61HC16N4; ATV61HC22N4; ATV61HC31Y; ATV61HC40Y; ATV61HD90M3X; ATV61QC20N4; ATV61QC25N4; ATV61QC25Y; ATV61QC31Y; ATV71HC16N4; ATV71HC20N4; ATV71HC25N4; ATV71HC25Y; ATV71HC31Y; ATV71QC16N4; ATV71QC20N4; ATV71QC20Y; ATV71QC25Y; ATV630 variable speed drive wall mount - 220 kW, 380...480 V; ATV930 variable speed drive wall mount - 220 kW, 380...480 V
- nedded quantity
- 3
- Electrical connection
- Tag connector 2 x M12
- Maximum motor cable length
- 250 m shielded cable P motor 90 kW at 200...240 V; 300 m unshielded cable P motor 90 kW at 200...240 V; 250 m shielded cable P motor 160…220 kW at 380...480 V 1; 300 m unshielded cable P motor 160…220 kW at 380...480 V 1; 150 m shielded cable P motor 250…400 kW at 500...690 V 1; 250 m unshielded cable P motor 250…400 kW at 500...690 V 1; 250 m shielded cable P motor 250…400 kW at 500...690 V 2; 400 m unshielded cable P motor 250…400 kW at 500...690 V 2
- dv/dt
- 500 V/µs max at 400 V; 750 V/µs max at 500 V; 1000 V/µs max at 690 V
- Thermal losses
- 530 W
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C
- Product weight
- 58 kg
- IP degree of protection
- IP20 (with kits VW3A9612,613); IP00
- Ambient air temperature for storage
- -25…70 °C
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3389119201537
- SAP 1000528307
- Code 8643390
Product Documentation
More from Schneider Electric
Schneider Electric
Telequick plate for 36X54 PLS
NSYPMR3654
Schneider Electric

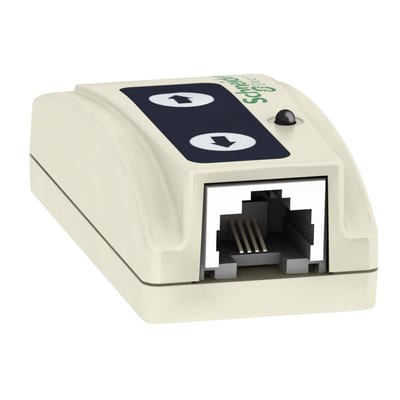

Single lagre and overf. unit
VW3A8120
Schneider Electric

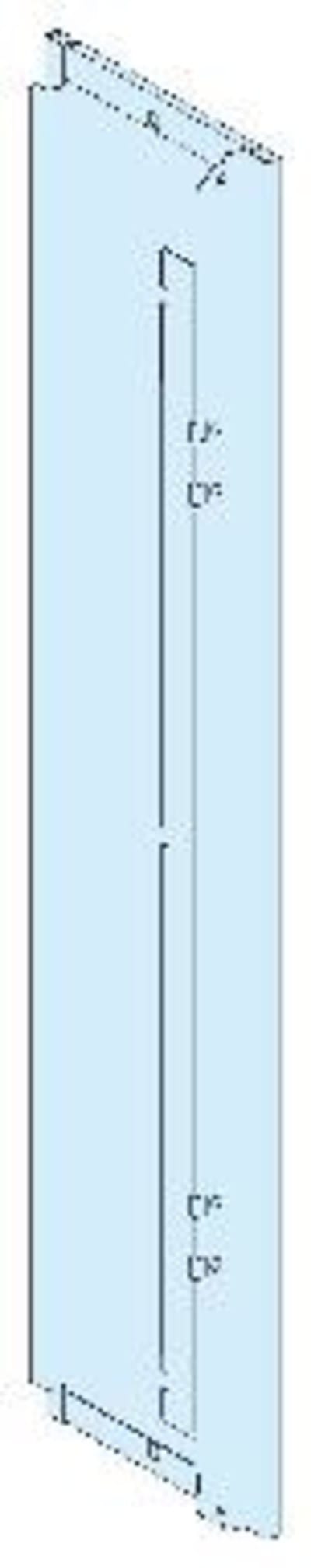

Side panel PrismaSeT G IP30 30M
LVS01034
Schneider Electric

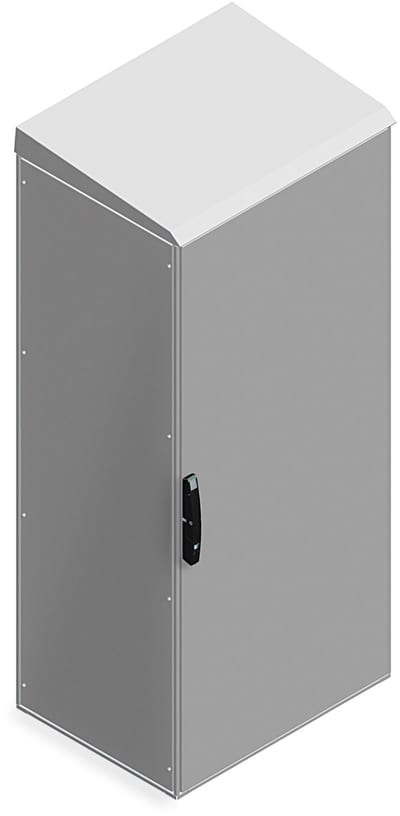

Rain hood 10X5 (NSYSC1050)
Schneider Electric

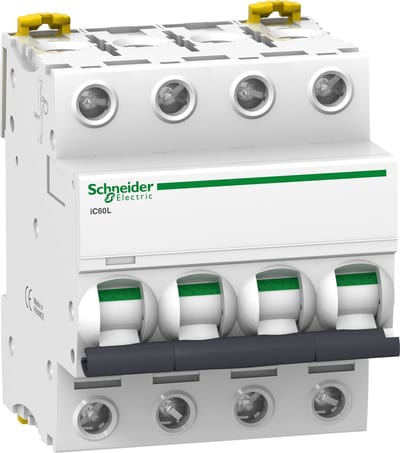

Schneider Electric A9F95404 ACTI9 IC60L Miniature Circuit Breaker 4P 4 A, Curve K
Schneider Electric

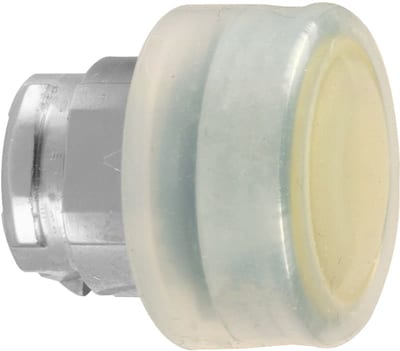

Schneider Electric ZB4BP5 Harmony XB4 Push-Button Head — Ø22 mm, Yellow, projecting, spring return, non-illuminated, metal bezel, booted
Schneider Electric

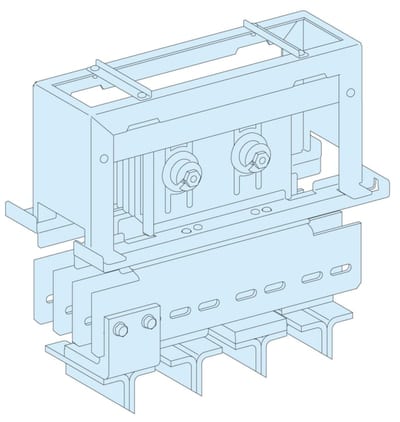

Schneider Electric CANALIS Connection 3200A MTZ2/NW 3P Prisma P LVS04735
