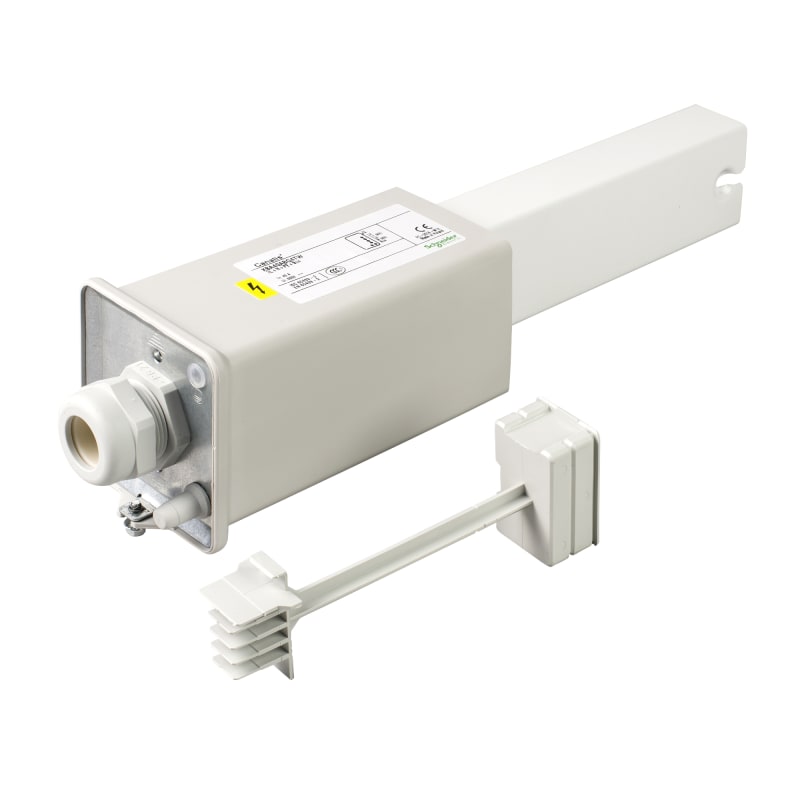

Endemating 40A Venst White

Schneider Electric KBA40ABG4W Endemating 40A Venst White.

Manufacturer part number (MPN)

KBA40ABG4W

EAN / GTIN

3606480000263

Sales unit

pcs

Package quantity

15 pcs

Rated current

40 A

Range of product

Canalis

Device short name

KBA

Product compatibility

Canalis KBA busbar trunking 25…40 A

Offer type

Classic; Control system

Product or component type

Feed unit

Conductors material

Aluminium

[Ie] rated operational current

40 A; 25 A

[Ue] rated operational voltage

230...400 V

Number of circuits

1

Busbar trunking polarity

3L + N + PE; L + N + PE

Protection type

Without protection

Control type

Communicating

Communication port protocol

DALI

Colour

White (RAL 9003)

Provided equipment

End cover

Mounting location

Left

mounting mode

By screws

Mounting support

Busbar

Connections - terminals

Terminal block - Pg 21 - screw clamp connector for 10 mm²

Width

300 mm

Depth

75.5 mm

Height

78.5 mm

Product weight

400 g

Standards

IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

15

Number of Units in Package 3

120

Country of origin

CZ

Warranty (in months)

18

Model

Single

RAL-number

9003

Number of poles

5

Length

300 mm

Degree of protection (IP)

IP55

Power supply position

End

Rated voltage AC 50 Hz

230–400 V

Rated current AC 50 Hz

40 A

HS Code

8536.90

• EAN 3606480000263
• SAP 1000571960
• Code 81084339
