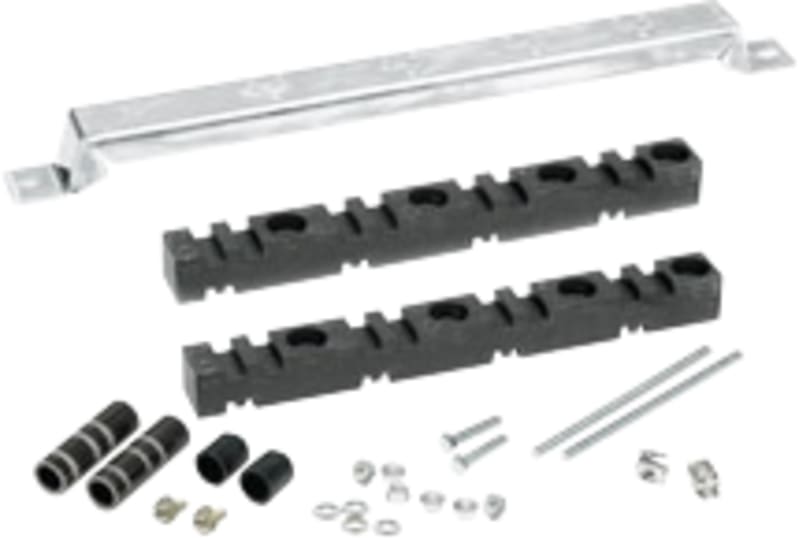

Schneider Electric Vertical bar support up to 3200 A 400X400 mm NSYBVS400
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYBVS400 Vert.Support Inntakskinne L=400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYBVS400
- EAN / GTIN
- 3606480062988
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Busbar accessory
- Product or component type
- Busbar support
- Anwendung
- Prisma application; Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- On structure of enclosure
- Busbar position
- Vertical
- Range compatibility
- PanelSeT PanelSeT SF
- Device composition
- fixing elements; 1 metal support; 2 insulating bar support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element
- Width
- Fixing centers: 350 mm; Nominal: 400 mm
- Depth
- 39 mm
- [In] rated current
- 3200 A
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 15.000 cm
- Package 1 Length
- 39.000 cm
- Package 1 Weight
- 1.520 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 125
- Package 2 Height
- 55.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 200.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 3200 A
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480062988
- SAP 1000088938
- Code 8581234
