Emdetilkobl 40A Right-hand White
Pricing
Request a quote
We reply within 24 hours
Product Description

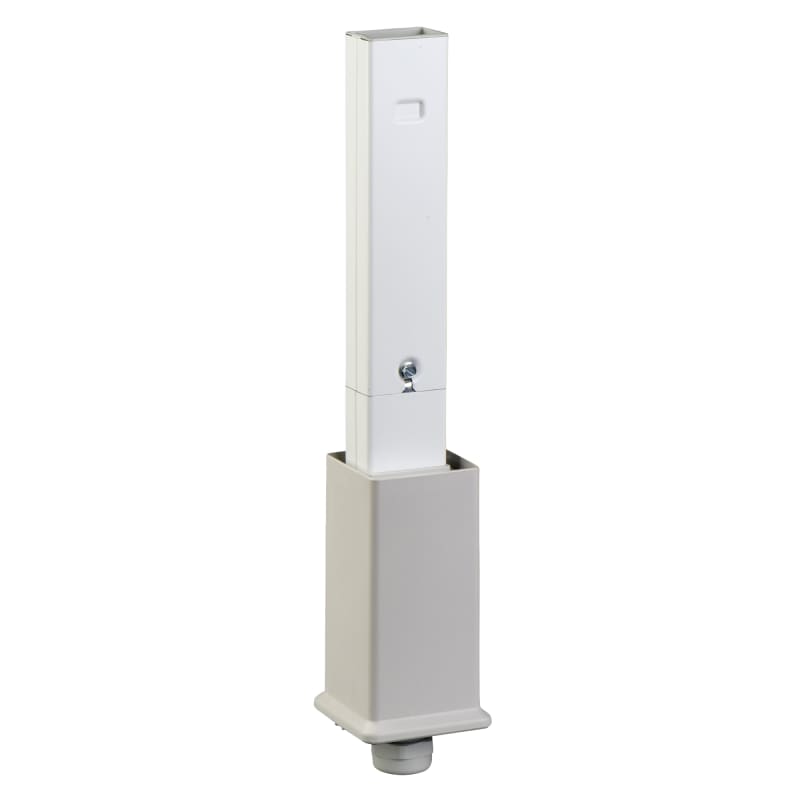

Schneider Electric KBA40ABD4W Emdetilkobl 40A Right-hand White.
Technical Specifications
- Manufacturer part number (MPN)
- KBA40ABD4W
- EAN / GTIN
- 3606480000225
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Rated current
- 40 A
- Range of product
- Canalis
- Device short name
- KBA
- Product compatibility
- Canalis KBA busbar trunking 25…40 A
- Offer type
- Classic; Control system
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 40 A; 25 A
- [Ue] rated operational voltage
- 230...400 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE; L + N + PE
- Protection type
- Without protection
- Control type
- Communicating
- Communication port protocol
- DALI
- Colour
- White (RAL 9003)
- Provided equipment
- End cover
- Mounting location
- Right
- mounting mode
- By screws
- Mounting support
- Busbar
- Connections - terminals
- Terminal block - Pg 21 - screw clamp connector for 10 mm²
- Width
- 320 mm
- Depth
- 75.5 mm
- Height
- 78.5 mm
- Product weight
- 500 g
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 64
- Country of origin
- CZ
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9003
- Number of poles
- 5
- Length
- 320 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated current AC 50 Hz
- 40 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480000225
- SAP 1000470750
- Code 8787928
