Front plate INS250 Horizontal PrismaSeT P
Pricing
Request a quote
We reply within 24 hours
Product Description

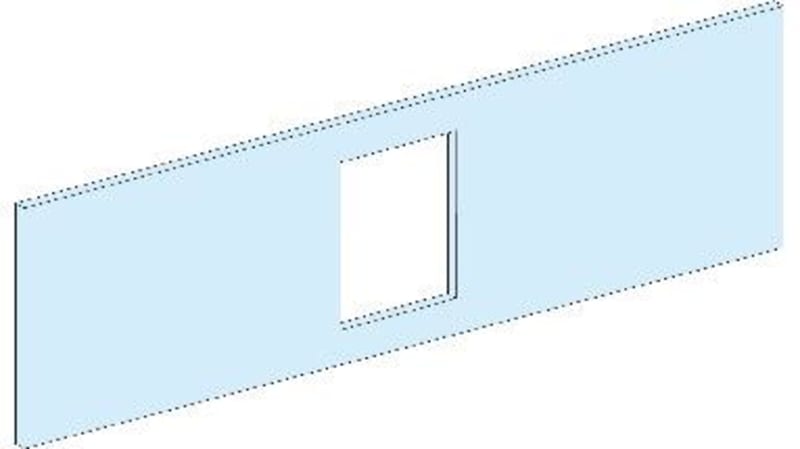

Schneider Electric LVS03617 Front plate for INS250-Horizontal mounting-PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03617
- EAN / GTIN
- 3606481872531
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation
- Poles description
- 1 x 3P: mounting plate support: INS250 horizontal installation; 1 x 4P: mounting plate support: INS250 horizontal installation; 1 x 3P: mounting plate support: INV250 horizontal installation; 1 x 4P: mounting plate support: INV250 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 200 mm
- Product weight
- 0.82 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle horizontal 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle horizontal 4P 1 direct 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 14
- Number of Units in Package 3
- 168
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 4
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872531
- SAP 1200546712
- Code 82879383
