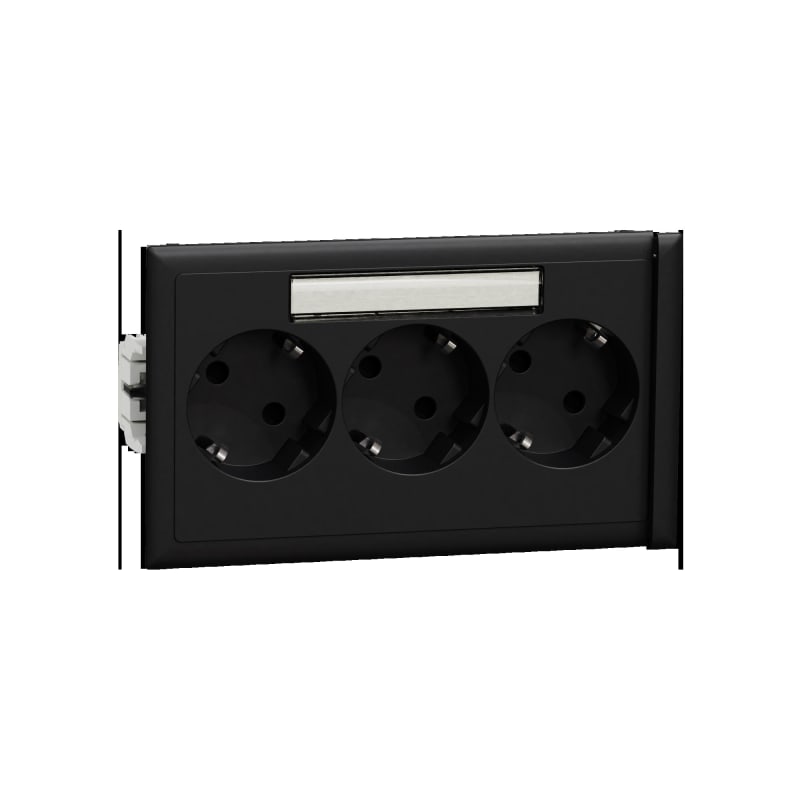

CYB-PS 3-Way master outlet, black, with screw
Pricing
Request a quote
We reply within 24 hours
Product Description
Outlet, Thorsman, CYB-PS 3-way master, 37°, with screw, black.
Technical Specifications
- Manufacturer part number (MPN)
- INS60702
- EAN / GTIN
- 3606481069313
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Wall duct
- Assembly arrangement
- Basic element with complete housing
- Colour
- Black
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 3
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 3
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- Yes
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- None
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- Data
- RAL-number (similar)
- 9016
- Impact strength
- IK05
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 50 mm
- Device height
- 84 mm
- Device depth
- 50 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 6
- Protective earth pin round
- No
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- With built-in bluetooth speaker
- No
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481069313
- SAP 1200696675
- Code 83551857
Product Documentation
