Rittal

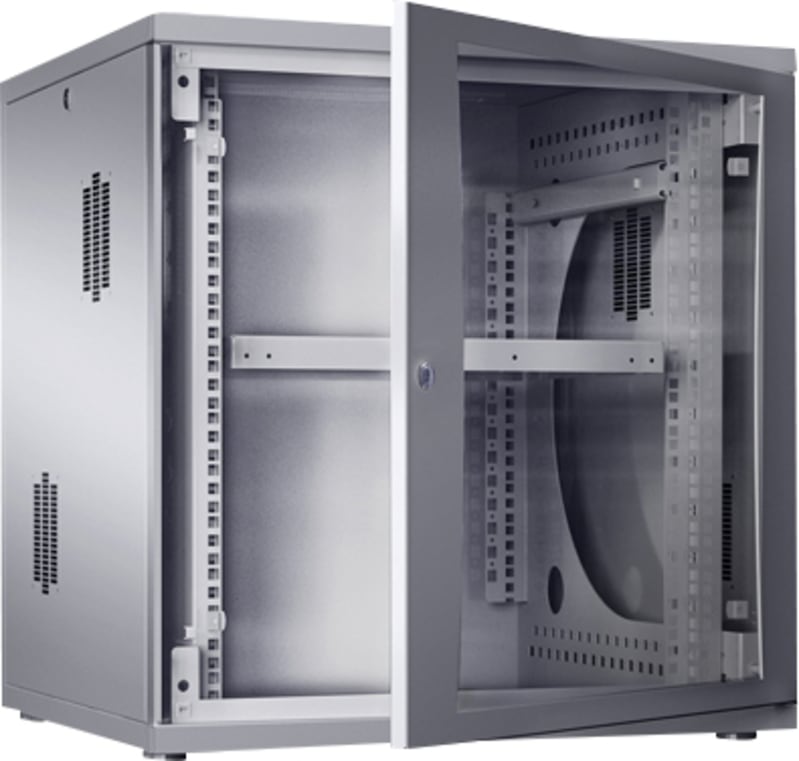

FlatBox 9HE, 600mm deep
Part number7507110EAN / GTIN4028177551442HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7507110 Manufacturer description: DK FlatBox, WHD: 600x492x600 mm, 9 U, with 482.6 mm (19") mounting angles. FlatBox 9HE, 600mm deep.
Technical Specifications
- Manufacturer part number (MPN)
- 7507110
- EAN / GTIN
- 4028177551442
- Sales unit
- pcs
- Model designation
- DK 7507.110
- Product type
- FlatBox
- Version
- with 19" mounting rails
- Material
- Carbon steel; Viewing window: Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Supply includes
- Flat-packed enclosure; 1 wall section; 2 basic supports; 2 roof/base plates, with cut-outs for cable entry via brush strips; 2 side panels, lockable; 1 glazed door, lockable, security lock 3524 E, door catch freely selectable; Connection components for tool-free, fast assembly; Grounding kit for system-compatible grounding of all enclosure parts; 19" profile rails
- Height units
- 9U
- Dimensions
- Width: 600 mm; Height: 492 mm; Depth: 600 mm
- Installation height for components
- 9U
- Load capacity
- max. 450 N
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 24.42 kg
- Gross weight
- 26.3 kg
- PCF/VE (cradle-to-gate)
- 102.9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ETIM 8
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- Passive
- Width
- 600 mm
- Height
- 492 mm
- Depth
- 600 mm
- Number of height units
- 9
- Max. load capacity
- 45 kg
- With roof plate
- No
- With earthing
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177551442
- SAP 1000615300
- Code 8475920
Product Documentation
Document preview: Rittal 7507110 — Data Sheet (OEM)
More from Rittal
Rittal

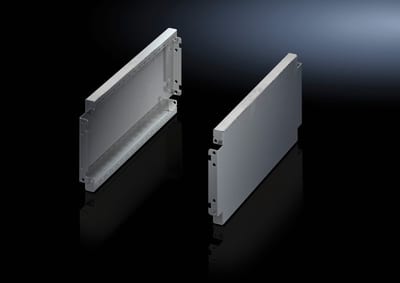

Plinth VX rf side B 200X500
8620081
Rittal
Mounting plate KX 75X785
1574800
Rittal

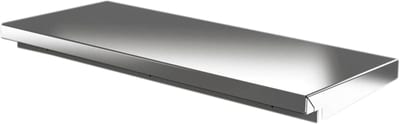

Rain hood AX 300X210 Rf
2361010
Rittal
PDU managed 16A/3P 42XC13
7979442
Rittal
CB-device adapter 3-pole (9635100)
Rittal

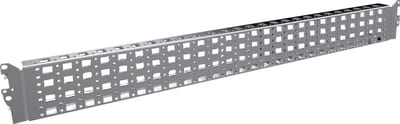

System chassis VX 23X89 rf 800
8100733
Rittal

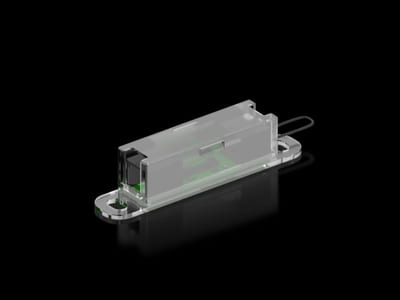

CMC III access sensor VX
7030128
Rittal

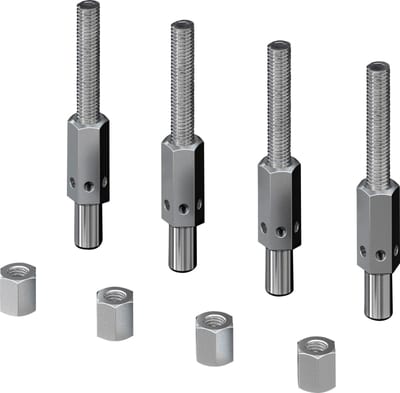

Rittal 8100711 VX Levelling Component for 200 mm Base/Plinth
