Rittal

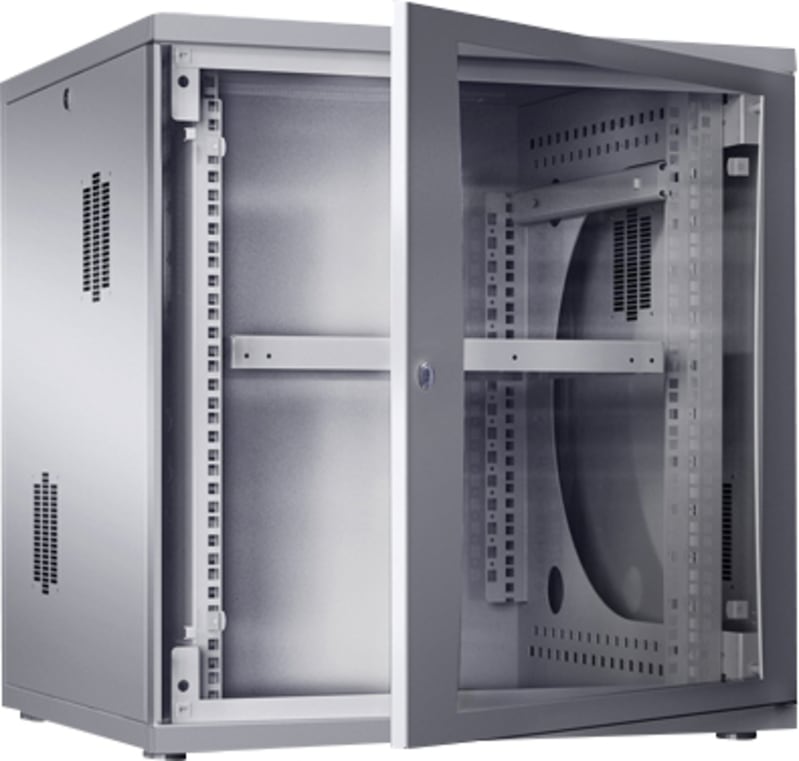

FlatBox 9HE, 400mm deep
Part number7507010EAN / GTIN4028177551404HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7507010 Manufacturer description: DK FlatBox, WHD: 600x492x400 mm, 9 U, with 482.6 mm (19") mounting angles. FlatBox 9HE, 400mm deep.
Technical Specifications
- Manufacturer part number (MPN)
- 7507010
- EAN / GTIN
- 4028177551404
- Sales unit
- pcs
- Model designation
- DK 7507.010
- Product type
- FlatBox
- Version
- with 19" mounting rails
- Material
- Carbon steel; Viewing window: Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Supply includes
- Flat-packed enclosure; 1 wall section; 2 basic supports; 2 roof/base plates, with cut-outs for cable entry via brush strips; 2 side panels, lockable; 1 glazed door, lockable, security lock 3524 E, door catch freely selectable; Connection components for tool-free, fast assembly; Grounding kit for system-compatible grounding of all enclosure parts; 19" profile rails
- Height units
- 9U
- Dimensions
- Width: 600 mm; Height: 492 mm; Depth: 400 mm
- Installation height for components
- 9U
- Load capacity
- max. 450 N
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 19.834 kg
- Gross weight
- 20.8 kg
- PCF/VE (cradle-to-gate)
- 79.5 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ETIM 8
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- Passive
- Width
- 600 mm
- Height
- 492 mm
- Depth
- 400 mm
- Number of height units
- 9
- Max. load capacity
- 45 kg
- With roof plate
- No
- With earthing
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177551404
- SAP 1000716081
- Code 8335370
Product Documentation
Document preview: Rittal 7507010 — Data Sheet (OEM)
More from Rittal
Rittal

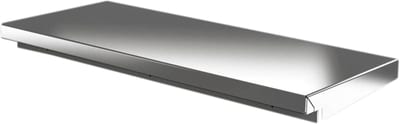

Rain hood AX 800X300 Rf
2475010
Rittal

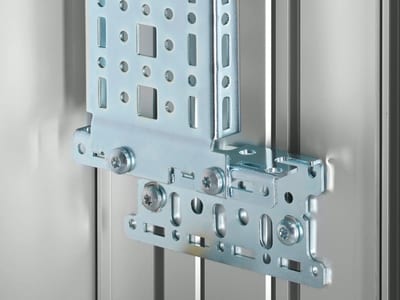

CP Mounting bracket (6205100)
Rittal
Mounting plate KX 375X385
1571800
Rittal

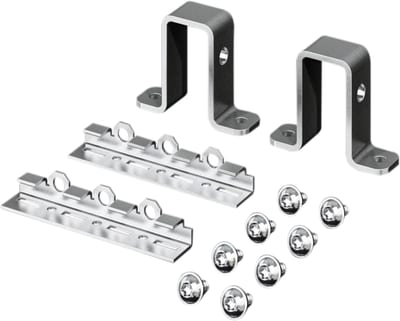

Fastsett bolt VX cablefangsk
8620400
Rittal

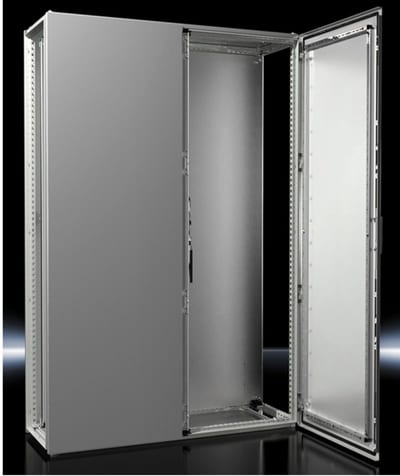

Floor-standing cabinet VX 1200X1800X400
8284000
Rittal
Sammenbuildingningssett VX out
8617502
Rittal
VX IT Flange Plate-module 800X237,5 moh (5301333)
Rittal

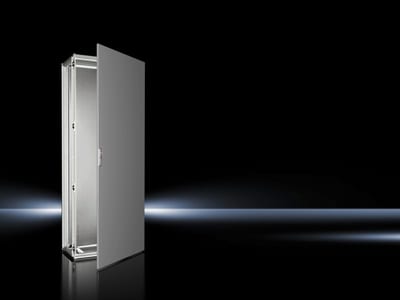

Floor-Standing Enclosure VX 800X2000X800
