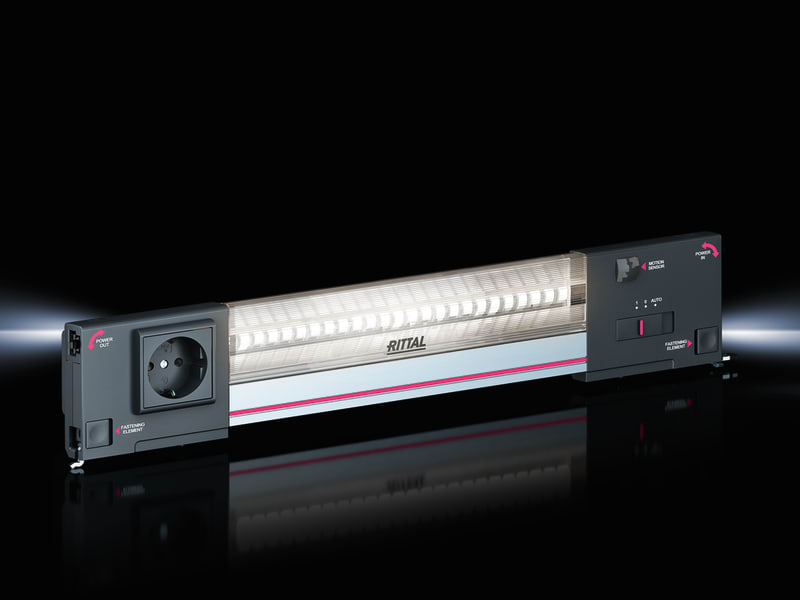

Rittal SZ 2500.300 LED Enclosure Light 1200 lm with Motion Detector
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2500300 SZ LED enclosure system light, 1200 lm, 437 mm long, 100-230 V AC, with integrated motion detector and on/off switch. Extruded aluminium body with polycarbonate cover, 4000 K neutral white, IP20, tool-free mounting.
Technical Specifications
- Manufacturer part number (MPN)
- 2500300
- EAN / GTIN
- 4028177809864
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Model designation
- SZ 2500.300
- Product type
- LED system light
- Version
- with motion detector
- Material
- Light body: Extruded aluminum; Light cover: polycarbonate; Light ends: PC-ABS
- Color
- Enclosure: RAL 7016
- Supply includes
- Assembly screws
- Rated power
- 13 W
- Connection options
- Power Supply, 3-pole; Through-wiring, 3-pole
- Motion detector
- Yes
- Overvoltage category
- II
- Protection category
- II (total insulation)
- Light – installation type
- Screw fastening; Clip fastening; Magnetic fastener (accessories)
- Rated insulation voltage
- 300 V AC
- Installation options
- Directly onto the enclosure section with 25 mm pitch pattern
- Luminous flux
- 1,200 lm
- Light color
- 4000 K (neutral white)
- Dimensions
- Width: 437 mm; Height: 85 mm; Depth: 37 mm
- Operating temperature range
- -20 °C...55 °C; -4 °F...131 °F
- Rated operating voltage
- 100 V - 230 V, 1~, 50 Hz/60 Hz
- Protection category IP to IEC 60 529
- IP 20
- Packaging unit
- 1 pc(s).
- Net weight
- 0.488 kg
- Gross weight
- 0.65 kg
- PCF/VE (cradle-to-gate)
- 15.9
- Customs tariff number
- 94054940
- ETIM 9
- EC000321
- ETIM 8
- EC000321
- ECLASS 8.0
- 27189241
- Approvals
- CCC exception letter; ENEC; 30 - KC Korea; UL
- Lamp power
- 13 W
- Voltage type
- AC
- Rated voltage
- 240 V
- With socket outlet
- No
- With on/off switch
- Yes
- With light sensor
- No
- Length
- 437 mm
- Lamp type
- LED not exchangeable
- Suitable for 19 inch mounting
- No
- Type of electric connection
- Plug/connector
- Degree of protection (IP)
- IP20
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 4028177809864
- SAP 1000760260
- Code 8529687
Product Documentation
