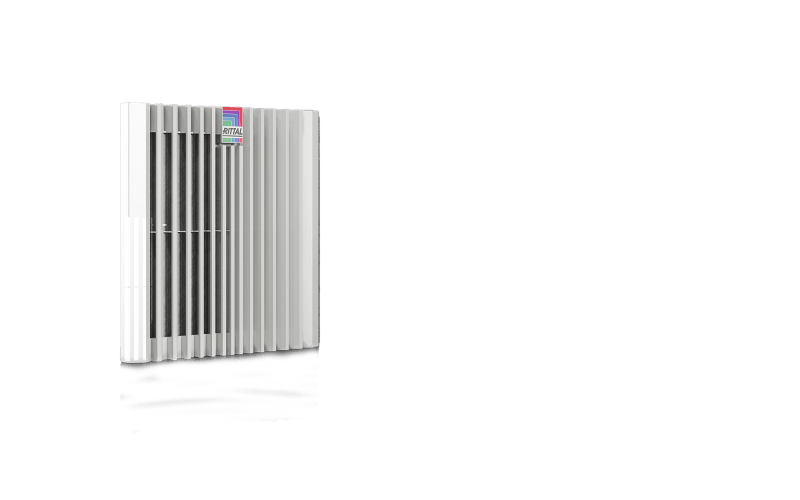

Rittal SK 3240.300 Blue e+ Outlet Filter 255 x 255 mm, RAL 7035
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3240300 is an SK Blue e+ wall-mounted outlet filter with pleated media, sized 255 x 255 x 45.2 mm in RAL 7035 plastic. It is designed as a companion outlet to the SK 3240.7xx / 3240.9xx / 3241.7xx / 3241.9xx filter fans and reaches IP 54-56 depending on media configuration.
Technical Specifications
- Manufacturer part number (MPN)
- 3240300
- EAN / GTIN
- 4028177998360
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- SK 3240.300
- Product type
- Blue e+ outlet filter
- Version
- wall-mounted
- Material
- Plastic
- Color
- RAL 7035
- Supply includes
- Outlet Filters; Pleated filter
- Mounting cut-out
- Width of opening: 224 mm; Cut-out height: 224 mm
- Suitable for Model No.
- SK 3240.7xx/3240.9xx/3241.7xx/3241.9xx
- Dimensions
- Width: 255 mm; Height: 255 mm; Depth: 45.2 mm
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.4 kg
- Gross weight
- 0.67 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- CSA; UL + C-UL - FTTA; UR + C-UR (recognized)
- Colour
- Grey
- Width
- 255 mm
- Height
- 255 mm
- Depth
- 45.2 mm
- EMC-version
- No
- Degree of protection (IP)
- IP54
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177998360
- SAP 1200740738
- Code 83882281
Product Documentation
