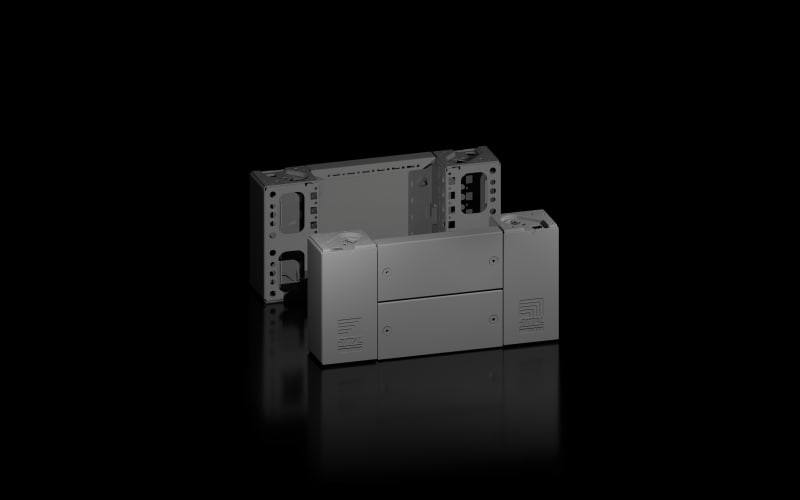

Plinth VX incl. front/rear panel 200X400
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8660021 Manufacturer description: VX base corner piece with base trim panel, front and rear, : 200 mm, for W H: 400 mm, carbon steel. VX plinth corner profile with plinth panel, front and rear, H: 200 mm, for B: 400 mm, steel plate.
Technical Specifications
- Manufacturer part number (MPN)
- 8660021
- EAN / GTIN
- 4028177978126
- Sales unit
- pack
- Package quantity
- 2 pack
- Model designation
- VX 8660.021
- Material
- Base/plinth corner piece: Carbon steel; Base/plinth trim panels, front/rear: Carbon steel; Corner and baying covers: Plastic
- Color
- RAL 9005
- Supply includes
- 4 x corner covers; Assembly components; 4 x base/plinth corner pieces, 200 mm high; 1 base/plinth trim panel, front/rear, 200 mm; 2 x base/plinth trim panels, front/rear, 100 mm high
- Dimensions
- Height: 200 mm
- Type rating according to UL 50E
- Type 1; Type 12
- Weight/packaging unit
- 5.85 kg; 12.9 lb.
- Packaging unit
- 2 pc(s).
- Net weight
- 5.846 kg
- Gross weight
- 5.85 kg
- PCF/VE (cradle-to-gate)
- 22.05 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC000721
- ETIM 8
- EC000721
- ECLASS 8.0
- 27182003
- Approvals
- UL + C-UL - FTTA
- Colour
- Black
- Width
- 400 mm
- Model
- Base front/back
- Height
- 200 mm
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building width
- 400 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177978126
- SAP 1200718182
- Code 83833440
Product Documentation
More from Rittal
Rittal
System Enclosure VX SE 1200X2000X300
5825600
Rittal
PDU metered 16A/3P 18XSCHUKO
7979233
Rittal
Base panels VX on the side 100X600
8660033
Rittal
PDU metered 16A/1P 10XSCHUKO
7979211
Rittal
Support rail VX 45X25MM 1200
8617830
Rittal
Cablefangrail VX 1600
8619450
Rittal
PDU switch 16A/1P 12XC13+1XC19
7979310
Rittal
Rittal VX Lock Insert, Type G, 3 mm Double-Bit, Die-Cast Zinc
8618306
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8660021?
- 8660021 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 8660021.
- What is the HS code for 8660021?
- The customs tariff (HS) code for 8660021 is 9403.99.
- Who manufactures 8660021?
- 8660021 is a Rittal product in the Enclosures range.
- Is a datasheet available for 8660021?
- Yes — the 8660021 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8660021?
- The minimum order quantity is 1.
- Is 8660021 available?
- Yes — 8660021 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
