Rittal AX Operating Enclosure with Handle Strips 300 x 300 x 210 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 6315150 is an AX operating enclosure with side handle strips and a Ø130 mm support-arm connection cut-out. The carbon-steel body and door are powder-coated RAL 7035 with an all-round PU seal, and the aluminium front panel is naturally anodised and machinable. Rated NEMA 1/12 (UL Type 1/12) with IK08 impact resistance. Dimensions 300 by 300 by 210 mm with a 3 mm double-bit cam lock. Available on quote-to-invoke terms via cBallast.
Technical Specifications
- Manufacturer part number (MPN)
- 6315150
- EAN / GTIN
- 4028177923232
- Sales unit
- pcs
- Model designation
- AX 6315.150
- Product type
- Operating housing AX with handle
- Version
- Support arm connection Ø 130 mm
- Material
- Housing: Carbon steel; Door: Carbon steel, all-round foamed-in PU seal; Front panel: Aluminum; Cover caps: Plastic
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Handle strip: Natural anodized; Front panel: Natural anodized.
- General color
- RAL 7035
- Color
- Housing and door: RAL 7035; Handle strip: Natural anodized; Front panel: Natural anodized.; Cover caps: Similar to RAL 7024
- Supply includes
- Housing with cut-out and reinforcement for support arm connection; Ø 130 mm; Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel; Side handle strips with cover caps; Integral interior mounting bracket with system punchings; Cam lock with 3 mm double-bit insert
- Dimensions
- Width: 300 mm; Height: 300 mm; Depth: 210 mm
- Protection category NEMA
- NEMA 1; NEMA 12
- Type rating according to UL 50E
- Type 1; Type 12
- IK code
- IK08
- Base material
- Carbon steel
- Note on Model No.
- Compatible mounting plate 5051.368 with shipping bag 5051.300
- Packaging unit
- 1 pc(s).
- Net weight
- 6.74 kg
- Gross weight
- 7.02 kg
- PCF/VE (cradle-to-gate)
- 30.2 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002504
- ETIM 8
- EC002504
- ECLASS 8.0
- 27180505
- Approvals
- UL + C-UL (listed)
- Width
- 300 mm
- Height
- 300 mm
- Depth
- 210 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (NEMA)
- 12
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8302.49
Cross References
- EAN 4028177923232
- SAP 1200380106
- Code 82389439
Product Documentation
More from Rittal
Rittal

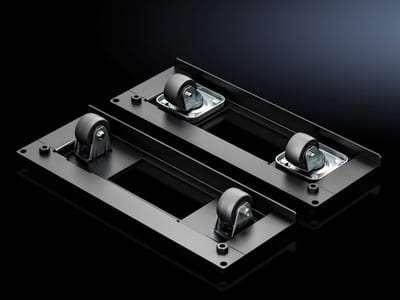

VX IT-wheel module for B: 800 mm
5301518
Rittal

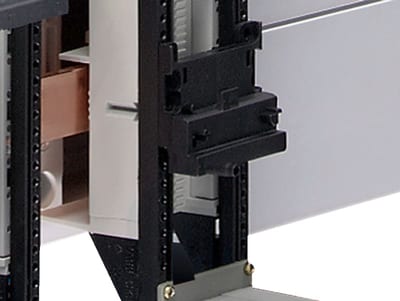

Pinblog Plus 5 pcs (9342820)
Rittal

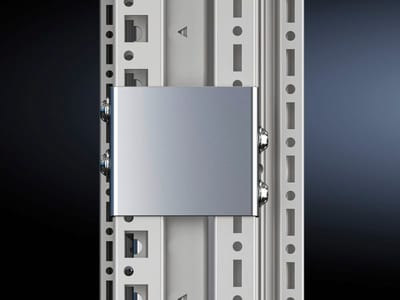

VX IT / TS External Mounting Bracket
5301312
Rittal
Aluminium rivets VX 100/pk
8800770
Rittal

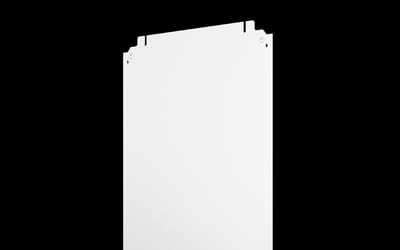

Mounting plate KX 135X125
1560800
Rittal

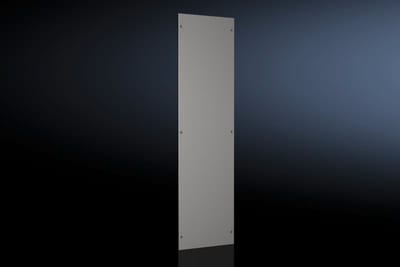

Wall VX rf 2000X600 (8700050)
