Rittal

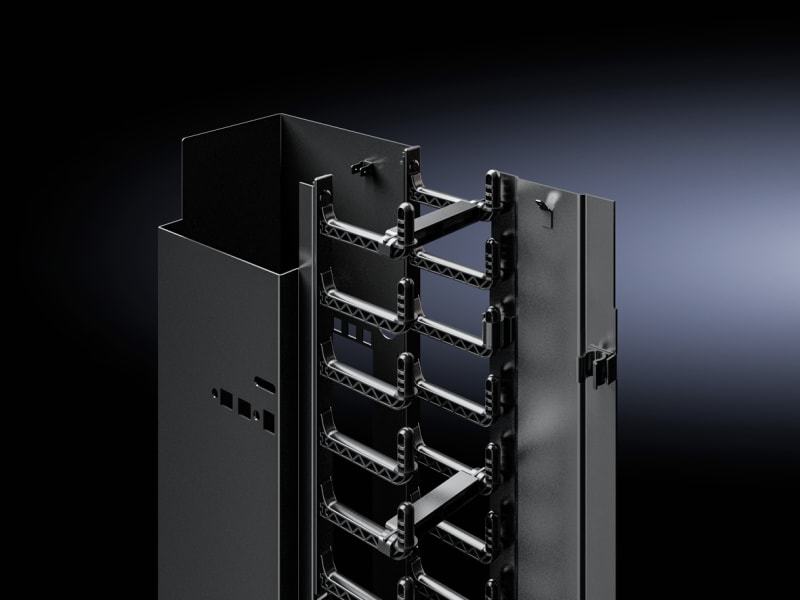

Cable Trunking for VX IT 38HE
Part number5302051EAN / GTIN4028177958579HS code7326.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5302051 Cable Trunking with double-sided hinged, avtakbar cable cover.
Technical Specifications
- Manufacturer part number (MPN)
- 5302051
- EAN / GTIN
- 4028177958579
- Sales unit
- pcs
- Model designation
- DK 5302.051
- Product type
- Cable duct
- Technical specifications
- Integrated 19" mounting cut-outs (1 U): 4 pc(s).
- Material
- Carbon steel; Plastic to UL 94-HB
- Color
- RAL 9005
- Supply includes
- Cable duct; 2 covers; 14 cable fingers, 6 U; 10 cable retention bars; Assembly components
- Height units
- 38 U
- Dimensions
- Width: 109.5 mm; Depth: 314.5 mm; Length: 1,699 mm
- Suitable for width
- 800 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 7.4 kg
- Gross weight
- 7.98 kg
- PCF/VE (cradle-to-gate)
- 30.4 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC000012
- ECLASS 8.0
- 27400703
- Colour
- Black
- Width
- 110 mm
- Halogen free
- No
- Height
- 315 mm
- Flexible
- No
- Type of side wall
- Slotted
- RAL-number
- 9005
- Self-extinguishing
- No
- Length
- 1699 mm
- Type of fastening
- Bottom perforation
- Usable cross section
- 38 mm²
- With cover
- Yes
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177958579
- SAP 1200577952
- Code 82935333
Product Documentation
Document preview: Rittal 5302051 — Data Sheet (OEM)
More from Rittal

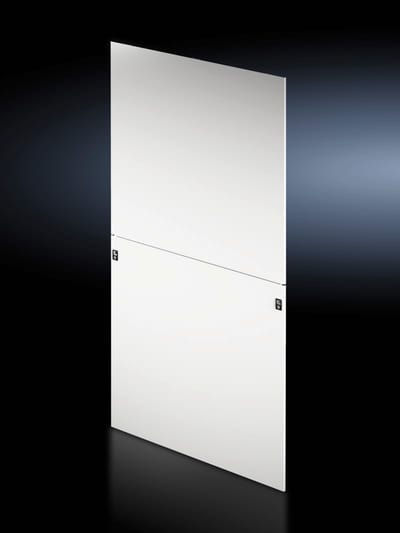

Rittal
Sidewall split hor. VX IT 2200X1200
5301261

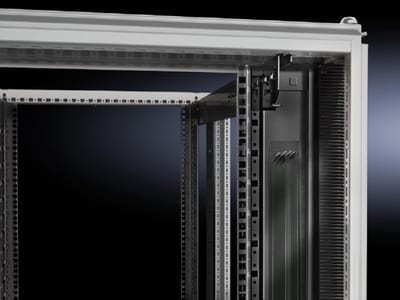

Rittal
VX IT Air control plate 800X1800 std
5302013

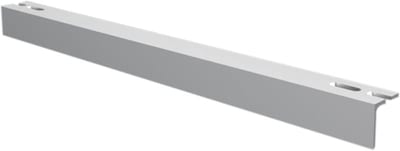

Rittal
Cablefangsrail VX 600 2 pcs
8619410

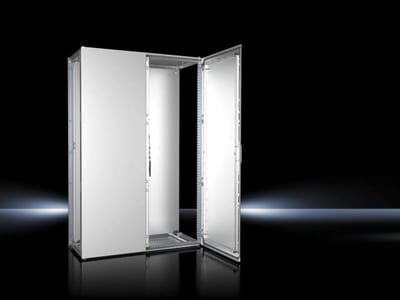

Rittal
Floor-Standing Enclosure VX rf 600X1800X500
8457000
Rittal

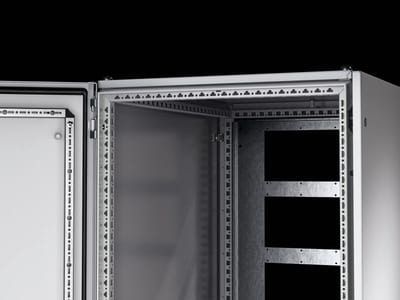

VX IT Partition plate Vert Diff HD 2200*1000
5301291

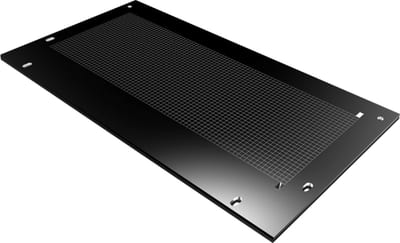

Rittal
Gland Plate, Plastic, for Functional Compartment Dividers, Width 600 mm
9683506

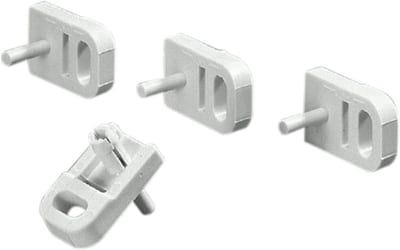

Rittal
Wall Mounting Brackets PK, Polyamide, 40 pcs
9583000

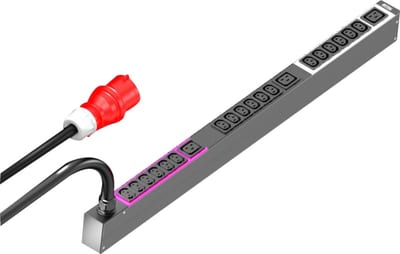

Rittal
