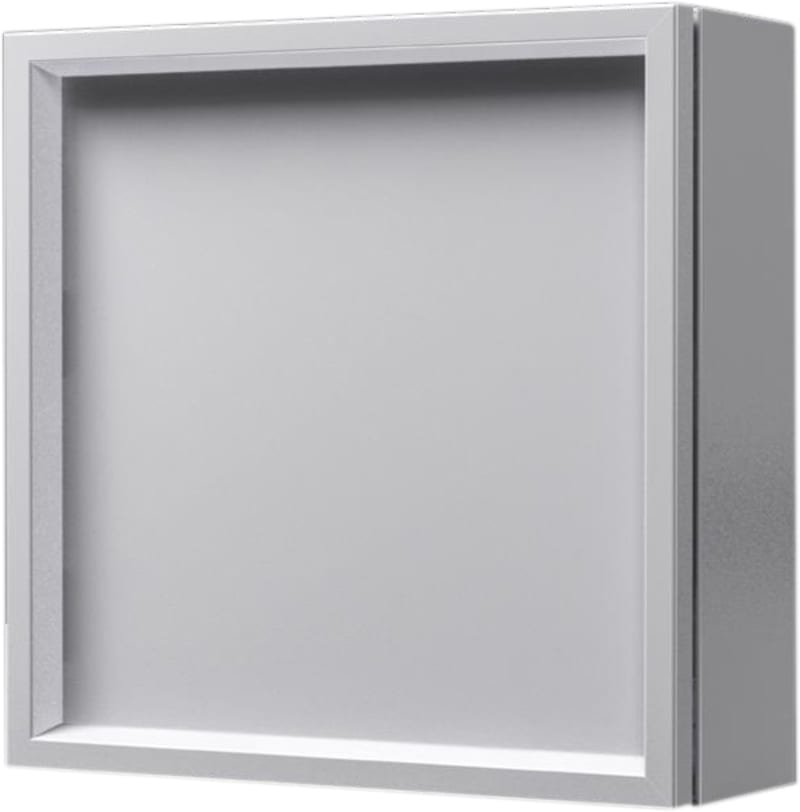

Rittal AX 2745.010 Operating Panel 497 x 497 x 36 mm, Anodised Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2745010 AX operating panel with anodised aluminium frame, display panel, hinges and mounting brackets, external dimensions 497 x 497 x 36 mm. IP54 rated with a 443 x 443 mm mounting plate suitable for enclosure model 1007.000.
Technical Specifications
- Manufacturer part number (MPN)
- 2745010
- EAN / GTIN
- 4028177938557
- Sales unit
- pcs
- Model designation
- AX 2745.010
- Product type
- Operating panel
- Material
- Aluminum, natural anodized
- Supply includes
- Aluminum frame; Display panel; Hinges; Brackets
- Protection category IP to EN 60 529
- IP 54
- Suitable for Model No.
- 1007.000
- Dimensions
- Width: 497 mm; Height: 497 mm; Depth: 36 mm
- Dimensions of aluminium plate
- Width: 443 mm; Height: 443 mm
- Area available for population
- Width: 427 mm; Height: 427 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 3.343 kg
- Gross weight
- 3.543 kg
- Customs tariff number
- 76169990
- ETIM 9
- EC000747
- ETIM 8
- EC000747
- ECLASS 8.0
- 27182204
- Width
- 497 mm
- Height
- 497 mm
- Depth
- 36 mm
- EMC-version
- No
- Degree of protection (IP)
- IP54
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 4028177938557
- SAP 1200380191
- Code 82389182
