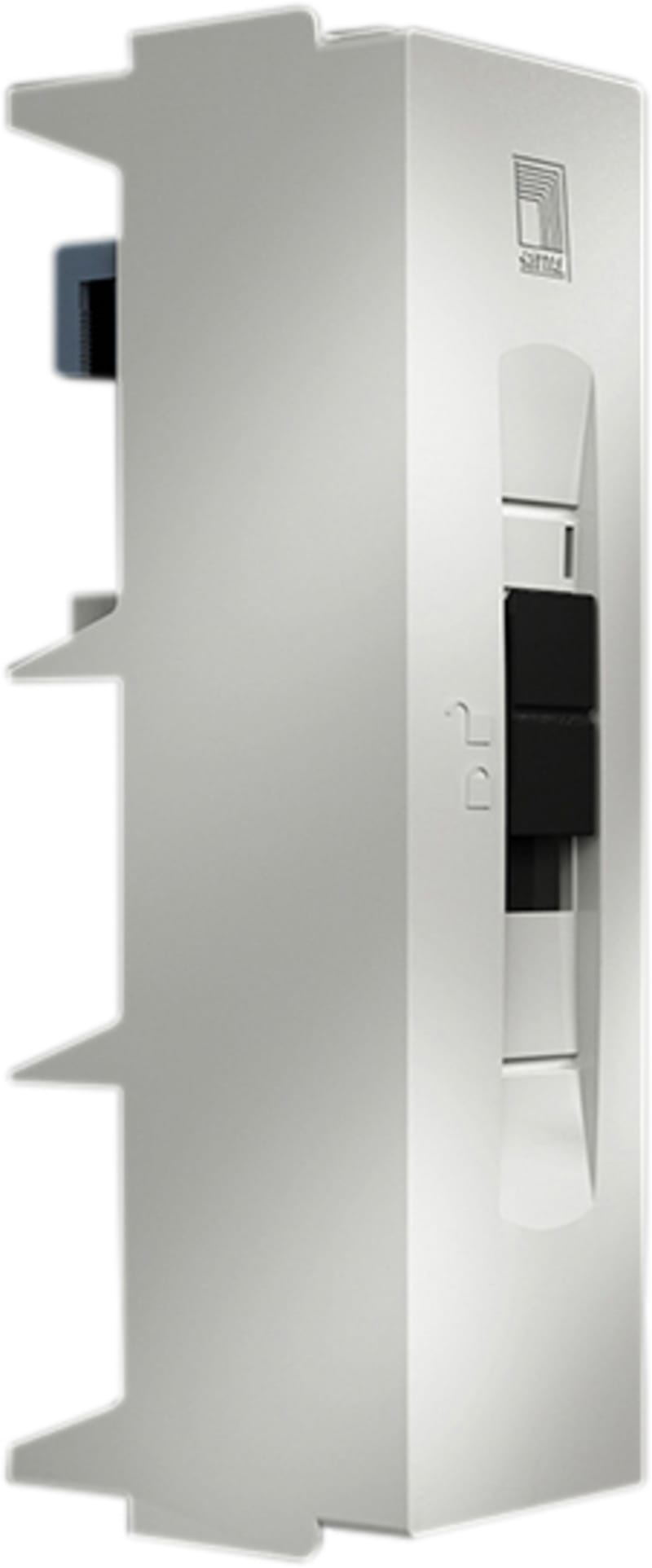

Connection Adapter 125A
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342220 Manufacturer description: SV Connection adaptor, 125 A, 690 V, 3-pole, cable outet top/ bottom, round conductor connection 10-35 mm², clamping area WH:; 10x7,8 mm. For connection round conductors or lam. copper busbars. For rails m. 60 mm senter-for-senter spacer.
Technical Specifications
- Manufacturer part number (MPN)
- 9342220
- EAN / GTIN
- 4028177503618
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- SV 9342.220
- Product type
- Connection Adapters
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 3~
- Cable outlet
- Top/bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 55 mm; Height: 210 mm
- Suitable for busbars
- Height: 5, 10 mm
- For busbar thickness
- 25 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.417 kg
- Gross weight
- 0.42 kg
- Copper weight (kg per piece)
- 0.052
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
- Rated current
- 125 A
- Mounting rail armament
- None
- Rated current In
- 125 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 55 mm
- Rail width
- 10 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177503618
- SAP 1000116791
- Code 81082467
Product Documentation
More from Rittal
Rittal
Partition VX 2000X800
8609206
Rittal
Rittal AX 2580.012 Sealing Insert for Modular Cable Entry, 12 mm
2580012
Rittal
Rittal VX 8618.800 Centre Cable-Entry Section 600 mm
8618800
Rittal
Cable Set AWG 10 15 pcs
9340870
Rittal
System Enclosure VX SE 800X1800X300
5822600
Rittal
Cable Set AWG 12 15 pcs
9340860
Rittal
Sidewall VX 1600X800 2 pcs
8168245
Rittal

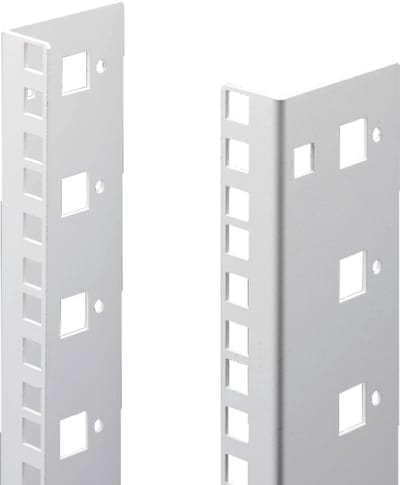

Mounting rail trailing edge 12U
