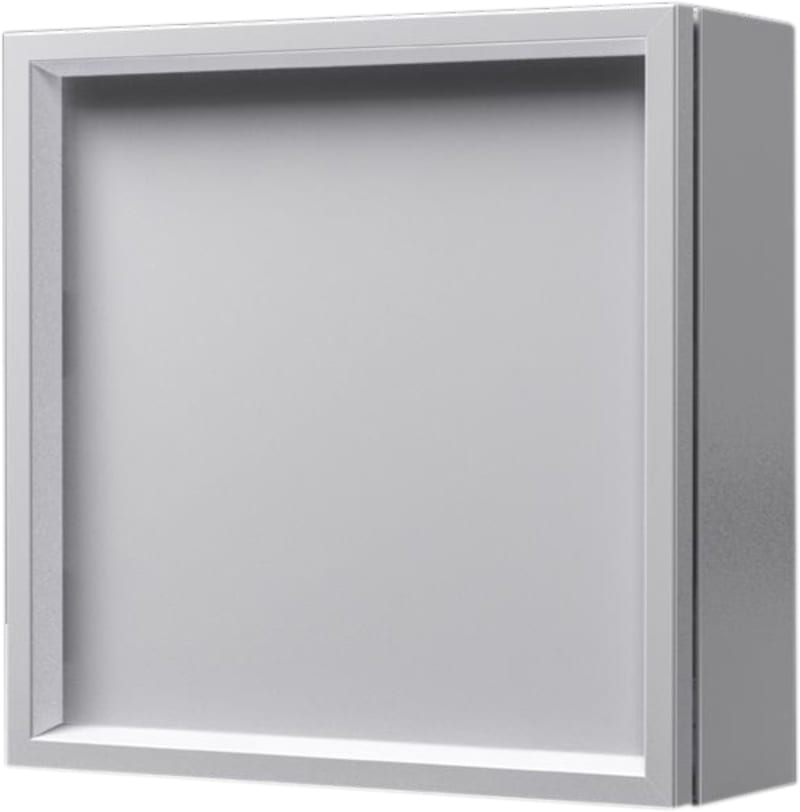

Rittal AX Operating Panel 377x377x36 mm Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal AX 2742.010 is a naturally anodised aluminium operating panel measuring 377 by 377 by 36 mm. Supply includes the aluminium frame, display panel, hinges and mounting brackets. Protection category is IP54 to EN 60529. The panel suits pairing with enclosure model 1006.000.
Technical Specifications
- Manufacturer part number (MPN)
- 2742010
- EAN / GTIN
- 4028177938526
- Sales unit
- pcs
- Model designation
- AX 2742.010
- Product type
- Operating panel
- Material
- Aluminum, natural anodized
- Supply includes
- Aluminum frame; Display panel; Hinges; Brackets
- Protection category IP to EN 60 529
- IP 54
- Suitable for Model No.
- 1006.000
- Dimensions
- Width: 377 mm; Height: 377 mm; Depth: 36 mm
- Dimensions of aluminium plate
- Width: 323 mm; Height: 323 mm
- Area available for population
- Width: 307 mm; Height: 307 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 2.52 kg
- Gross weight
- 2.54 kg
- Customs tariff number
- 76169990
- ETIM 9
- EC000747
- ETIM 8
- EC000747
- ECLASS 8.0
- 27182204
- Width
- 377 mm
- Height
- 377 mm
- Depth
- 36 mm
- EMC-version
- No
- Degree of protection (IP)
- IP54
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 4028177938526
- SAP 1200380188
- Code 82389172
