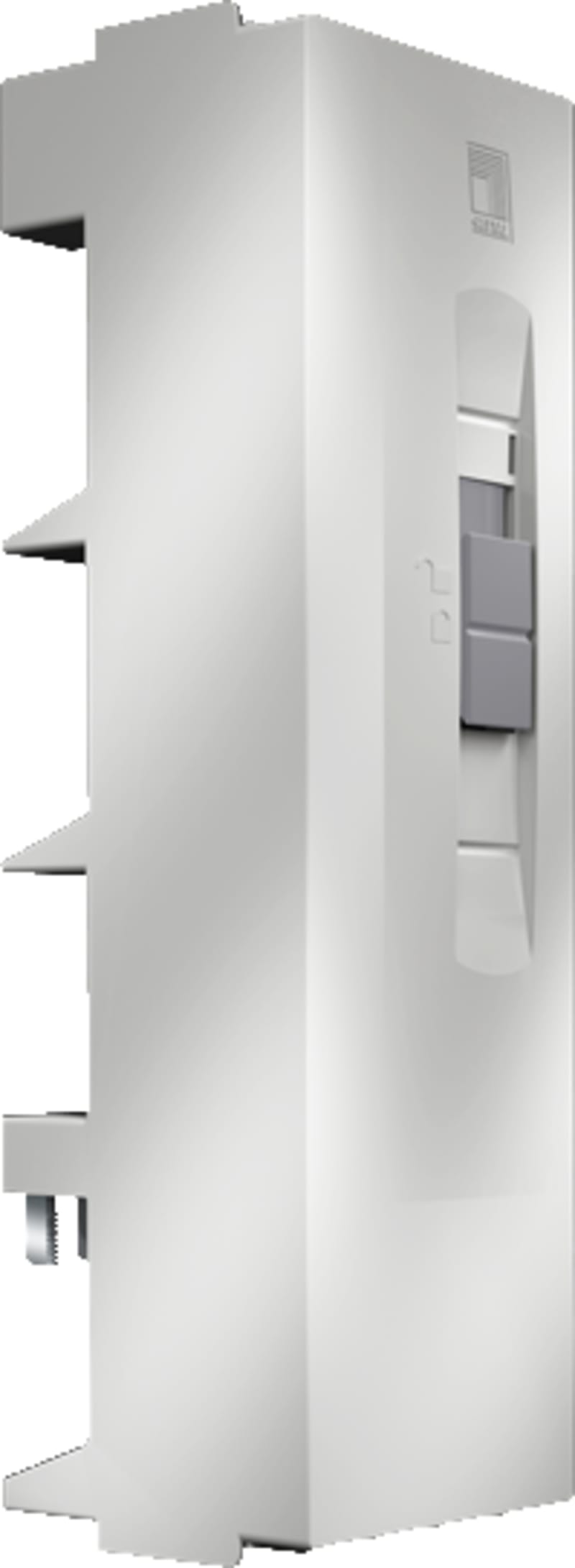

Connection Adapter 125A, 690V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342224 Manufacturer description: SV Connection adaptor, 125 A, 690 V, 4-pole, cable outet top/ bottom, round conductor connection 10-35 mm², clamping area WH:; 10x7,8 mm. For connection round conductors. For rails m. 60 mm senter-for-senter distance. 2,5mm² for 10mm².
Technical Specifications
- Manufacturer part number (MPN)
- 9342224
- EAN / GTIN
- 4028177536807
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Model designation
- SV 9342.224
- Product type
- Connection Adapters
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 4~
- Electrical UL ratings (SCCR)
- 50 kA - 600 V, fuse class K5 max. 125 A, JDDZ/7; 65 kA - 480 V, circuit breaker max. 125 A, DIVQ/7; 65 kA - 600 V, fuse class J max. 400 A, JDDZ/7
- Cable outlet
- Top/bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 4-pole
- Dimensions
- Width: 75 mm; Height: 270 mm
- Suitable for busbars
- Height: 5, 10 mm
- For busbar thickness
- 25 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.199 kg
- Gross weight
- 0.632 kg
- Copper weight (kg per piece)
- 0.07
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 125 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 75 mm
- Rail width
- 10 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177536807
- SAP 1000335485
- Code 81084348
Product Documentation
