Rittal

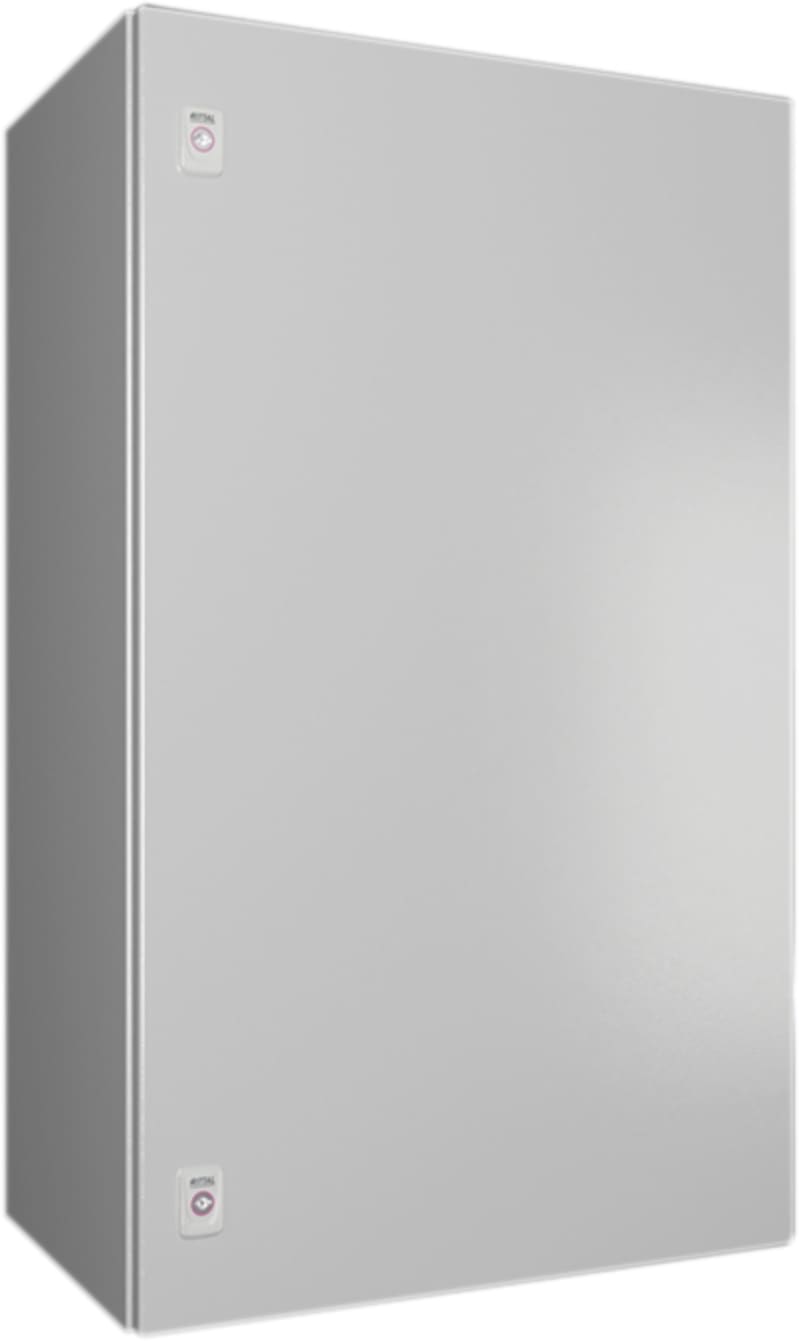

Compact enclosure AX 600X1000X400
Part number1091000EAN / GTIN4028177813137HS code9403.99
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1091000 Manufacturer description: AX wall-mounted enclosure, WHD: 600x1000x400 mm, carbon steel, with mounting panel, single-door, with two cam locks. AX Compact enclosure, BHD: 600x1000x400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1091000
- EAN / GTIN
- 4028177813137
- Sales unit
- pcs
- Model designation
- AX 1091.000
- Product type
- Basic enclosure AX, carbon steel
- Material
- Housing: Carbon steel; Door: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and door: Dipcoat primed, powder-coated on the outside, textured paint; Mounting panel: Zinc-plated
- Color
- RAL 7035
- Supply includes
- Housing with door(s); Flange (gland) plate(s) in enclosure base; Mounting panel; Punched door strip; Lock: 3 mm double-bit
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 4; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 12
- IK code
- IK10
- Dimensions
- Width: 600 mm; Height: 1,000 mm; Depth: 400 mm
- Material thickness - door
- 2 mm
- Material thickness - enclosure
- 1.5 mm
- Material thickness – mounting plate
- 2.5 mm
- Dimensions of mounting plate (W x H)
- 545 mm x 975 mm
- Interchangeable door catch
- Yes
- Lock
- Lock version: Cam; No. of locks: 2; Lock Insert: 3 mm double-bit
- Gland plate
- Size: 7; Qty.: 1
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 44.5 kg
- Gross weight
- 45 kg
- PCF/VE (cradle-to-gate)
- 163.84 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- Bureau Veritas; DNV; Lloyds Register; UL + C-UL (listed)
- Width
- 600 mm
- Height
- 1000 mm
- Depth
- 400 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 2
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 2500 N
- Max. permitted load of the door(s) according to IEC 62208
- 400 N
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177813137
- SAP 1200365346
- Code 82404756
Product Documentation
