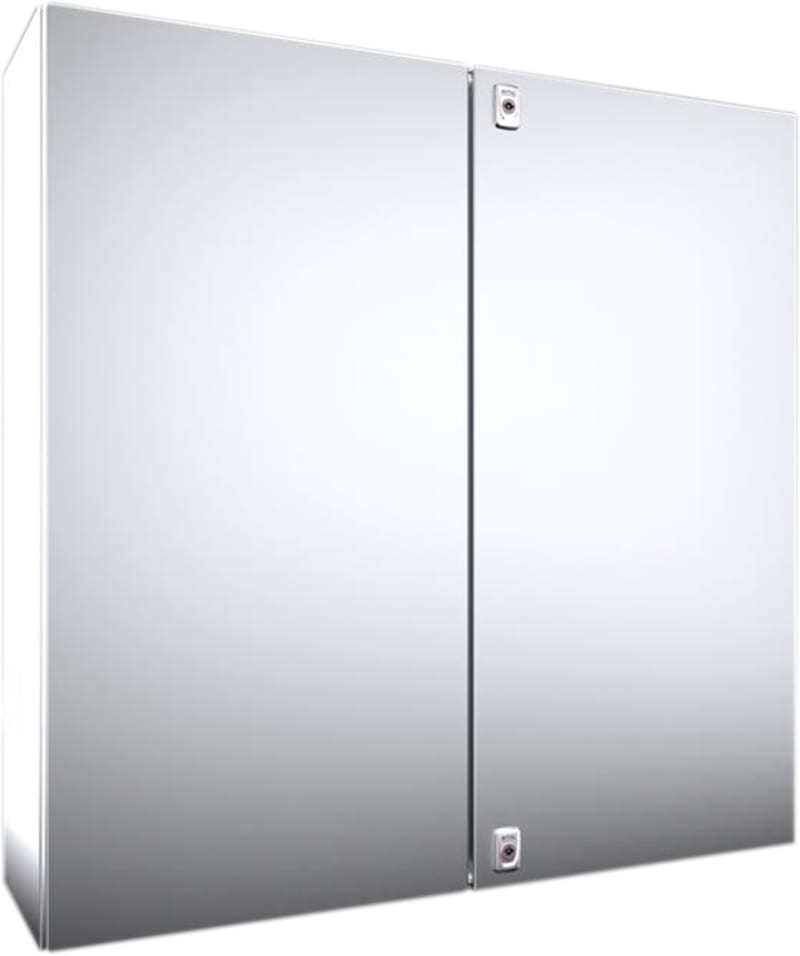

Compact enclosure AX 1000X100X300 Rf
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1018000 Manufacturer description: AX wall-mounted enclosure, WHD: 1000x1000x300 mm, 304 stainless steel, with mounting panel, two-door, with two cam locks. AX Compact enclosure, BHD: 1000x1000x300 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1018000
- EAN / GTIN
- 4028177815049
- Sales unit
- pcs
- Model designation
- AX 1018.000
- Product type
- Basic enclosure AX, stainless steel
- Material
- Housing: Stainless steel; Door: Stainless steel, all-round foamed-in PU seal; Mounting plate: Carbon steel; Stainless steel 1.4301 (AISI 304)
- Surface finish
- Housing and door: Brushed, grain 400, peak-to-valley height; < 0.8 µm; Mounting panel: Zinc-plated
- Supply includes
- Housing with door(s), swing angle 130°; Mounting panel; Lock: 3 mm double-bit
- Protection category NEMA
- NEMA 1; NEMA 12
- Protection category IP to EN 60 529
- IP 55
- Type rating according to UL 50E
- Type 1; Type 12
- IK code
- IK10
- Dimensions
- Width: 1,000 mm; Height: 1,000 mm; Depth: 300 mm
- Material thickness - door
- 2 mm
- Material thickness - enclosure
- 1.5 mm
- Material thickness – mounting plate
- 2.5 mm
- Dimensions of mounting plate (W x H)
- 945 mm x 975 mm
- Lock
- Lock version: Cam; No. of locks: 2; Lock Insert: 3 mm double-bit; Material lock: Die-cast zinc
- Base material
- Stainless steel 1.4301 (AISI 304)
- Packaging unit
- 1 pc(s).
- Net weight
- 60.5 kg
- Gross weight
- 64 kg
- PCF/VE (cradle-to-gate)
- 209.29
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 300 mm
- With mounting plate
- Yes
- Number of doors
- 2
- Number of locks
- 2
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 2500 N
- Max. permitted load of the door(s) according to IEC 62208
- 400 N
- Floor standing wall model
- No
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177815049
- SAP 1200365326
- Code 82404754
Product Documentation
More from Rittal
Rittal
Rittal 3383500 TopTherm Blue e Roof-Mounted Cooling Unit 1000 W
Rittal
Junction box KX 500X200X120 (1505000)
Rittal
Busbarholder vertical 3/4 pole
9686100
Rittal
Rittal SV OM Adapter 32 A 690 V 3-Pole Spring Clamp
9340550
Rittal
E-box KX 300X400X155
1577000
Rittal
PDU metered 32A/1P 16XSCHUKO
7979214
Rittal
PC Enclosure System SE m.tastskuff, small monta
5366350
Rittal

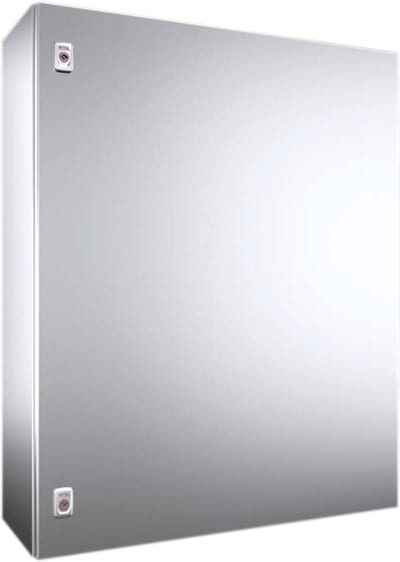

Compact enclosure AX 800X1000X300 Rf
