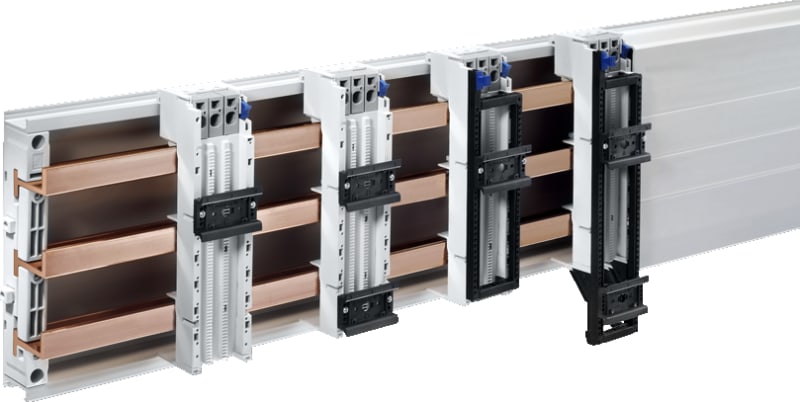

Rittal SV OM Adapter 32 A 690 V 3-Pole Spring Clamp

Rittal SV 9340.550 is an OM busbar adapter rated 32 A at 690 V for three-pole applications on 60 mm centre-to-centre busbar systems. The tension spring clamp accepts round conductors of 1.5-6 mm². Housing width is 45 mm and height 208 mm, with a support frame and PinBlock for TS 45C support rail.

Manufacturer part number (MPN)

9340550

EAN / GTIN

4028177502635

Sales unit

pcs

Package quantity

18 pcs

Model designation

SV 9340.550

Product type

OM adapter

Version

with tension spring clamp

Material

Polyamide; Fire protection corresponding to UL 94-V0

Color

Chassis: RAL 7035

Rated operating voltage

690 V, 3~

For bar systems with center-to- center spacing

60 mm

Support rail type

Support frame, 1 x TS 45C, PinBlock

Number of poles

3-pole

PinBlock

Yes

Dimensions

Width: 45 mm; Height: 208 mm

Connection of round conductors

1.5 ‐ 6 mm²

Support rails Qty/height

1 / 10 mm

Suitable for busbars

Height: 5, 10 mm

Support frame (W x H)

45 mm x 170 mm

Packaging unit

1 pc(s).

Net weight

0.238 kg

Gross weight

0.29 kg

Copper weight (kg per piece)

0.027

Customs tariff number

85369095

ETIM 9

EC001531

ECLASS 8.0

27370304

Approvals

ABS; DNV; Lloyds Register

Rated current

32 A

Mounting rail armament

None

Rated current In

32 A

Min. busbar thickness

5 mm

Max. busbar thickness

10 mm

Width of the adaptor

45 mm

Rail width

45 mm

Busbar distance

60 mm

Country of origin

Germany

HS Code

8536.90

• EAN 4028177502635
• SAP 1000116757
• Code 8614843
