Product Description

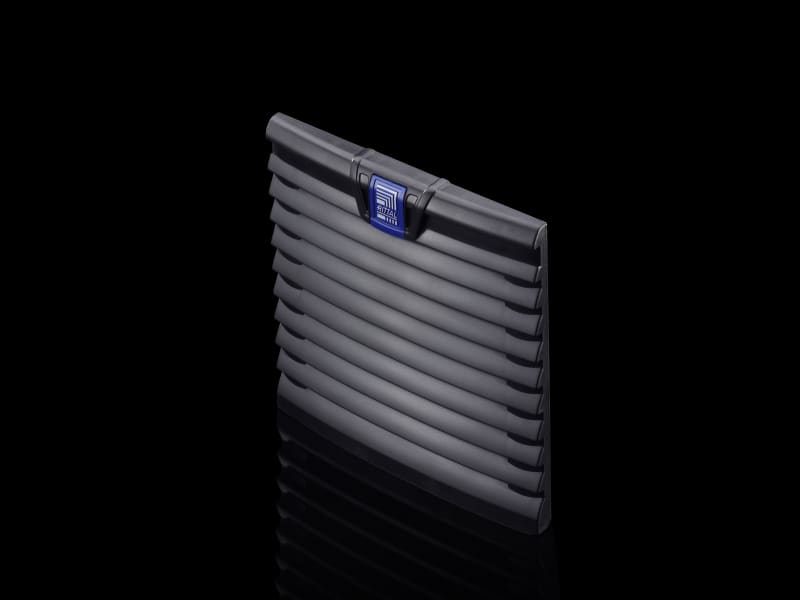

Rittal SK 3238.208 outlet filter for use with the SK 3238.1xx inlet filter family, mounted at the top or bottom of an enclosure to provide convection ventilation. ABS housing in RAL 9005 with chopped-fibre filter mat, 148.5 x 148.5 x 24 mm, up to IP 56 depending on filter medium and hood. Country of origin Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 3238208
- EAN / GTIN
- 4028177663466
- Sales unit
- pcs
- Model designation
- SK 3238.208
- Product type
- Outlet Filters
- Material
- ABS
- Color
- RAL 9005
- Supply includes
- Outlet Filters; Chopped fiber filter mat
- Mounting cut-out
- Width of opening: 124 mm; Cut-out height: 124 mm
- Suitable for Model No.
- SK 3238.1xx
- Dimensions
- Width: 148.5 mm; Height: 148.5 mm; Depth: 24 mm
- Protection category NEMA
- Type 1 with pleated filter; Type 12 with fleece filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.17 kg
- Gross weight
- 0.18 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- UL + C-UL - FTTA; UR + C-UR (recognized)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177663466
- SAP 1200596680
- Code 82973221
Product Documentation
