Rittal

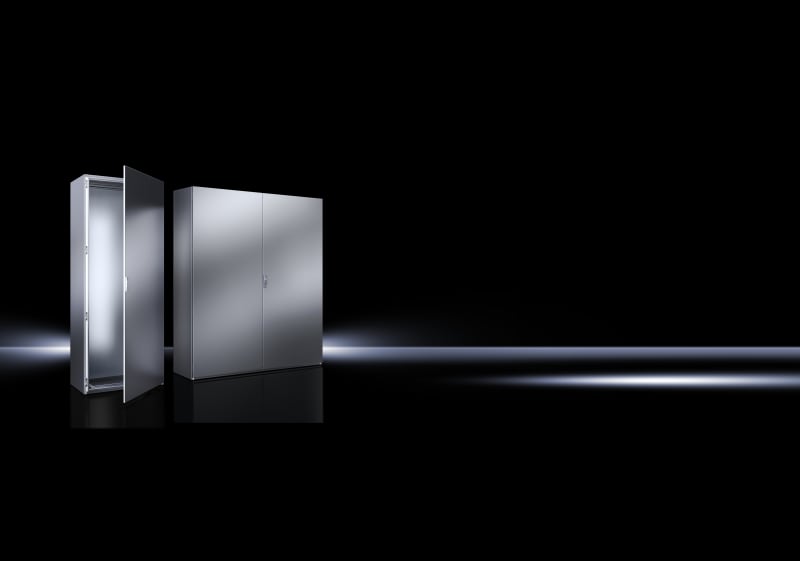

System Enclosure VX SE 600X1800X500 RF
Part number5851600EAN / GTIN4028177959378HS code8302.41
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5851600 VX SE Free-standing kapslingssytem, 600x1800x500 mm, Stainless steel, with mounting plate, single door.
Technical Specifications
- Manufacturer part number (MPN)
- 5851600
- EAN / GTIN
- 4028177959378
- Sales unit
- pcs
- Model designation
- SE 5851.600
- Product type
- VX SE enclosure system
- Material
- Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed; Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed; Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed; Base plates: Stainless steel 1.4301 (AISI 304)
- 1.5 mm; Mounting panel
- Carbon steel, 3.0 mm
- Surface finish
- Housing, door and rear panel: Brushed, grain 400; Base plates: Uncoated; Mounting panel: Zinc-plated
- Supply includes
- Housing, solid top and sides; Door(s); Right-hand door catch on single-door enclosures may be swapped to the left; Rear panel, detachable; Mounting panel; Base Plates; Lock: 3 mm double-bit; 2 punched rails, 18 x 39 mm
- Dimensions
- Width: 600 mm; Height: 1,800 mm; Depth: 500 mm
- Dimensions of mounting plate (W x H)
- 499 mm x 1,696 mm
- Protection category IP to EN 60 529
- IP 55
- Protection category NEMA
- NEMA 3R; NEMA 12
- Type rating according to UL 50E
- Type 1; Type 2; Type 3; Type 3R; Type 12
- IK code
- IK10
- Base material
- Stainless steel 1.4301 (AISI 304)
- Packaging unit
- 1 pc(s).
- Net weight
- 102.3 kg
- Gross weight
- 103.75 kg
- PCF/VE (cradle-to-gate)
- 320.05
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Stainless steel
- Width
- 600 mm
- Height
- 1800 mm
- Depth
- 500 mm
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- Yes
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 900 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
