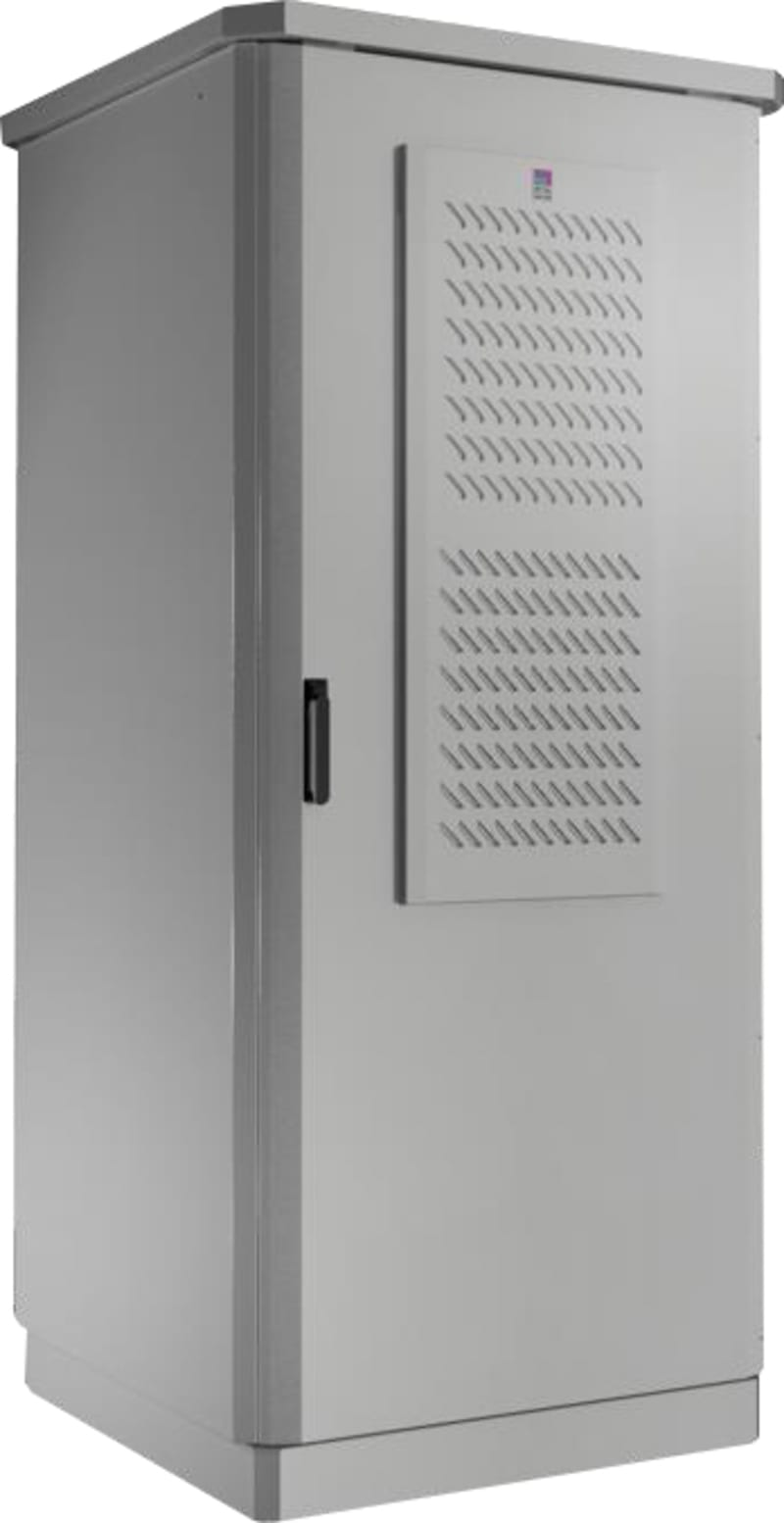

Rittal CS TopTec Outdoor Enclosure 800 x 1800 x 800 mm with Climate Cut-Out
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal CS 9888.550 TopTec is a double-walled outdoor enclosure of 800 x 1800 x 800 mm with a factory cut-out for a 1.5 kW outdoor climate control unit. The stainless-steel frame and powder-coated aluminium panels give IP55 / NEMA 3R / 12 protection and IK10 impact strength for exposed installations, with a rain canopy extending on all sides and a 100 mm transport plinth. Ships preconfigured with door, side and rear panels, swing-lever handle and semi-cylinder lock.
Technical Specifications
- Manufacturer part number (MPN)
- 9888550
- EAN / GTIN
- 4028177962699
- Sales unit
- pcs
- Model designation
- CS 9888.550
- Product type
- CS Toptec
- Version
- With cut-out for outdoor climate control unit 5118.21 BTU/h
- Material
- Housing frame: Stainless steel 1.4301 (AISI 304); Enclosure panels and base/plinth panels: Aluminum
- AlMg3; Rain canopy
- Aluminum
- Surface finish
- Powder-coated; UV-resistant pure polyester
- Color
- RAL 7035
- Supply includes
- Double-walled outdoor housing, fully preconfigured; Enclosure frame with 25 mm system perforation in roof and base frames as well as vertical profiles with 2 mounting levels; Front door with door stay, swing lever handle and semi-cylinder, lock; BJ20027; Side panels left and right; Rear panel; Rain canopy; Base/plinth with screw-fastened flange plates and screw-fastened trim panels front and rear
- Dimensions
- Width: 800 mm; Height: 1,800 mm; Depth: 800 mm
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 3R; NEMA 12
- IK code
- IK10
- Note on Model No.
- To close the cutout, a climate control unit or adapter plate is needed
- Base material
- Aluminum
- Packaging unit
- 1 pc(s).
- Net weight
- 115 kg
- Gross weight
- 122 kg
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Grey
- Width
- 894 mm
- Height
- 1945 mm
- Depth
- 894 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- Yes
- Wall fastening possible
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- Yes
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 360 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
