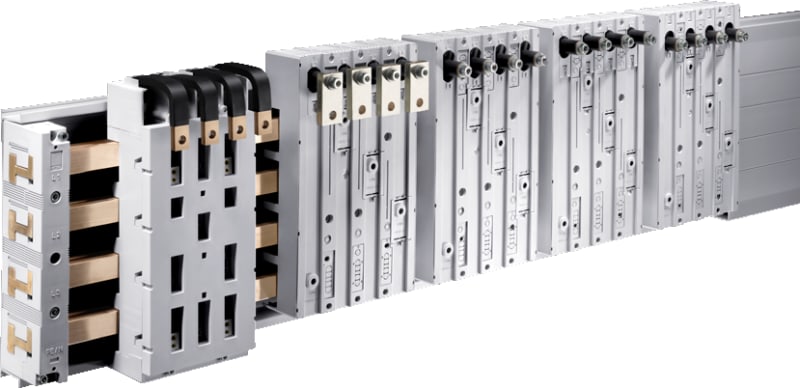

App.adapter CB 250A 690V 4P n
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9345614 Manufacturer description: SV Circuit-breaker component adaptor, 250 A, 690 V, 4-pole, cable outlet bottom, with connection straps. Device Adapter CB 250A 690V cable output below.
Technical Specifications
- Manufacturer part number (MPN)
- 9345614
- EAN / GTIN
- 4028177679993
- HS code
- 8544.42
- Sales unit
- pcs
- Model designation
- SV 9345.614
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Supply includes
- Connection straps; Sliding Blocks
- Rated operating voltage
- 690 V, 4~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7
- Cable outlet
- Bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 4-pole
- Dimensions
- Width: 140 mm; Height: 310 mm
- Suitable for busbars
- Height: 5, 10 mm
- To fit manufacturer (model)
- ABB (T3S, XT3); Eaton (NZM2-4/250 A); Schneider Electric (NS(X)100, NS(X)160, NS(X)250); Schrack (MC2); Siemens (VL160X, VL160, VL250, 3RV10 63, 3VA12/20/21/22, 3VA61/62)
- Packaging unit
- 1 pc(s).
- Net weight
- 2.405 kg
- Gross weight
- 2.526 kg
- Copper weight (kg per piece)
- 1.134
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177679993
- SAP 1000633950
- Code 8151179
Product Documentation
