Product Description

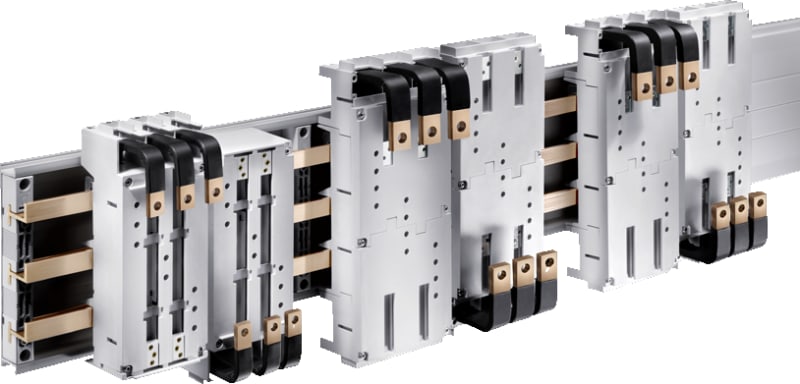

Rittal 9345710 Manufacturer description: SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet bottom, with connection straps. Device Adapter CB 630A 690V cable output below.
Technical Specifications
- Manufacturer part number (MPN)
- 9345710
- EAN / GTIN
- 4028177680012
- HS code
- 8544.42
- Sales unit
- pcs
- Model designation
- SV 9345.710
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Supply includes
- Connection straps; Sliding Blocks
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7
- Cable outlet
- Bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Note on Model No.
- The 9342.720 insert strip is also required when using Siemens; VL630 switchgear
- Dimensions
- Width: 140 mm; Height: 345 mm
- Suitable for busbars
- Height: 5, 10 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 3.65 kg
- Gross weight
- 3.8 kg
- Copper weight (kg per piece)
- 2.44
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177680012
- SAP 1000705084
- Code 8190107
Product Documentation
More from Rittal
Rittal
Swing frame VX, large, 40HE 800 (8619023)
Rittal
Swing frame VX stopper std
8619270
Rittal
Floor-Standing Enclosure VX 800X1600X500
8865000
Rittal
Montagestag VX 14X39 800 4/pk
8619730
Rittal

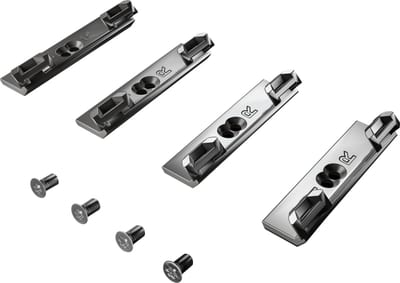

Rittal VX 8618110 Lock Components, Die-Cast Zinc, Pack of 4
Rittal

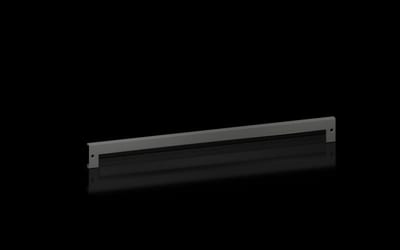

Rittal VX Base Trim Panel with Brush Strip, 1200x100 mm
8660095
Rittal

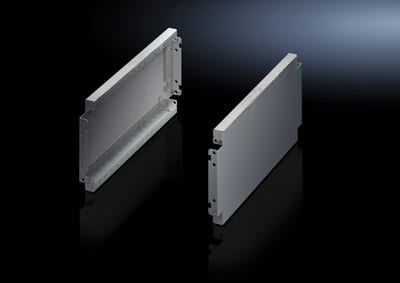

Plinth VX rf side B 200X400
