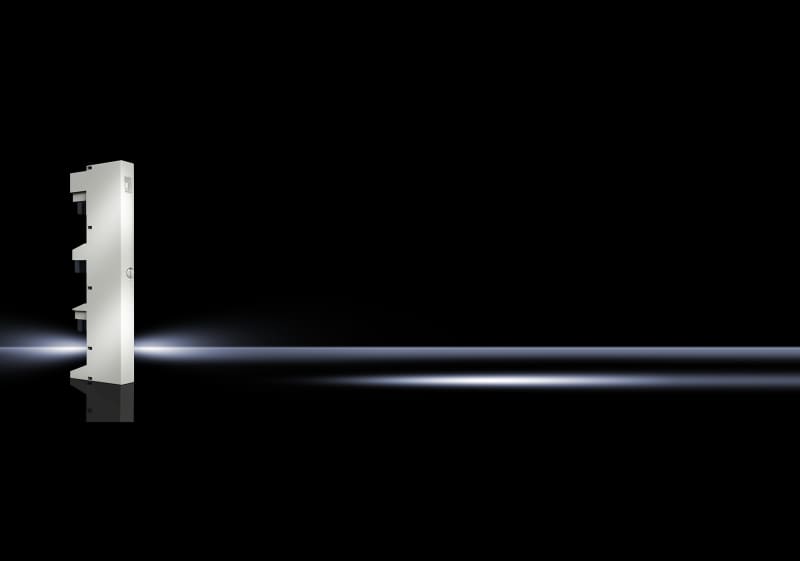

Connection Adapter 63A, RL60
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342210 Manufacturer description: SV Connection adaptor, 63 A, 690 V, 3-pole, cable outet bottom, round conductor connection 2,5-10 mm². For connection round conductors. For rail systems with 60 mm senter-for-senter distance.
Technical Specifications
- Manufacturer part number (MPN)
- 9342210
- EAN / GTIN
- 4028177503601
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Model designation
- SV 9342.210
- Product type
- Connection Adapters
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 600 V, fuse class J max. 60 A, JDDZ/7; 65 kA - 480 V, manual motor controller max. 65 A, NLRV/7
- Cable outlet
- Bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 20 mm; Height: 215 mm
- Suitable for busbars
- Height: 5, 10 mm
- Rated operating voltage (L1 + L2)
- 1000 V (DC)
- Rated operating voltage (L1 + L3)
- 1500 V (DC)
- For busbar thickness
- 10 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.205 kg
- Gross weight
- 0.206 kg
- Copper weight (kg per piece)
- 0.019
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 63 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 20 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177503601
- SAP 1000116790
- Code 8614879
Product Documentation
More from Rittal
Rittal
Mounting Plate Spacer 2000
4591700
Rittal

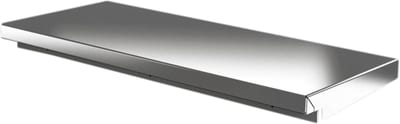

Rain hood AX 1000X300 Rf
2363010
Rittal

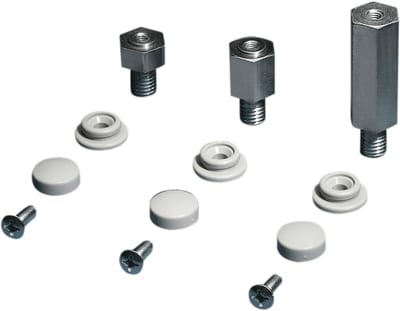

PS-Ceiling Spacer L=10mm
2422000
Rittal

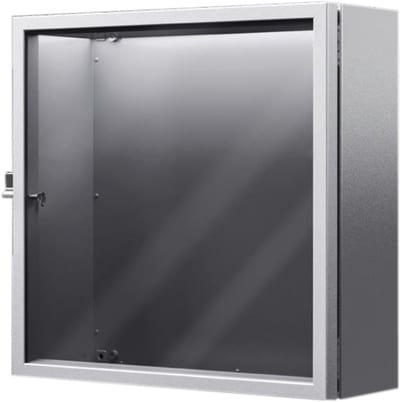

Window FT alu 497X497X62
2763010
Rittal

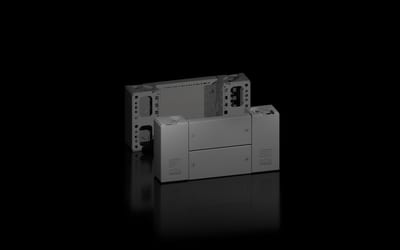

Plinth VX incl. front/rear panel 200X400
8660021
Rittal

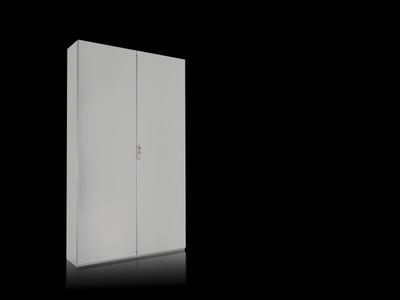

System Enclosure VX SE 1200X2000X300
5825600
Rittal

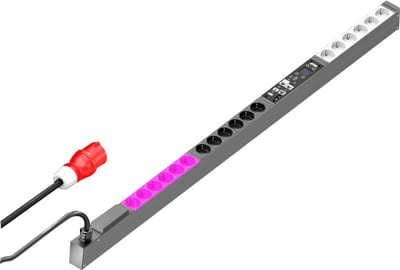

PDU metered 16A/3P 18XSCHUKO
7979233
Rittal

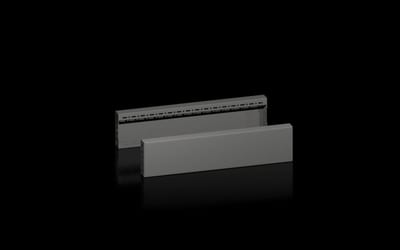

Base panels VX on the side 100X600
