Rittal

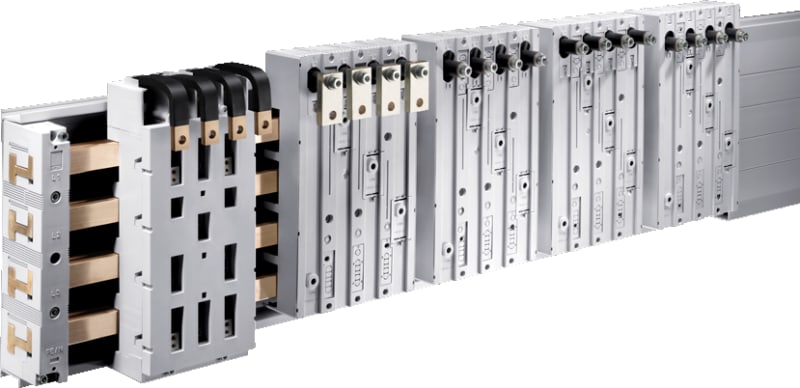

App.adapter CB 400A 690V n
Part number9345730EAN / GTIN4028177680036HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9345730 Manufacturer description: SV Circuit-breaker component adaptor, 400 A, 690 V, 3-pole, cable outlet bottom, with connection straps. Device Adapter CB 400A 690V cable output below.
Technical Specifications
- Manufacturer part number (MPN)
- 9345730
- EAN / GTIN
- 4028177680036
- HS code
- 8544.42
- Sales unit
- pcs
- Model designation
- SV 9345.730
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Supply includes
- Connection straps; Sliding Blocks
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 400 A, DIVQ/7
- Cable outlet
- Bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 140 mm; Height: 345 mm
- Suitable for busbars
- Height: 5, 10 mm
- To fit manufacturer (model)
- Eaton (NZM3, NZM3 UL/400 A); GE (FG400); Mitsubishi (NF400-SEW/HEW/REW); Schneider Electric (NS(X)400, NSJ400); Schrack (MC3); Siemens (VL400, VL400X UL, VL400 UL, 3VA23, 3VA63); Terasaki (E400, S400, H400, L400)
- Packaging unit
- 1 pc(s).
- Net weight
- 2.831 kg
- Gross weight
- 2.963 kg
- Copper weight (kg per piece)
- 1.533
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177680036
- SAP 1000615305
- Code 8307314
Product Documentation
Document preview: Rittal 9345730 — Data Sheet (OEM)
More from Rittal
Rittal

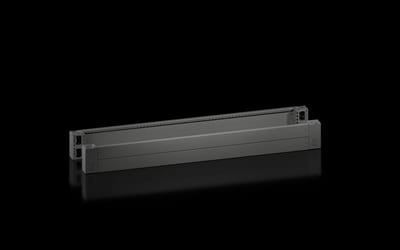

Plinth VX incl. front/rear panel 200X1800
8660027
Rittal

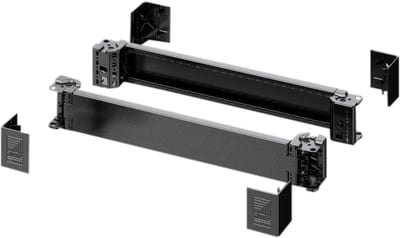

Plinth AX 1000X100 (2820101)
Rittal

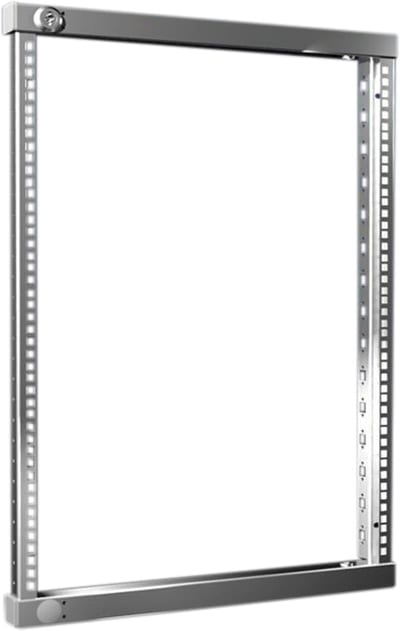

Montagestag VX 14X39 600 4/pk
8619720
Rittal

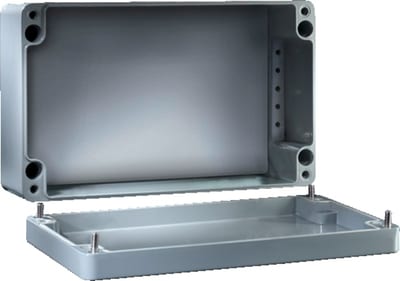

GA Aluminium Box 260X160X90
9113210
Rittal
Komponentadaptere 1-pole 16A 690V L2
9635372
Rittal

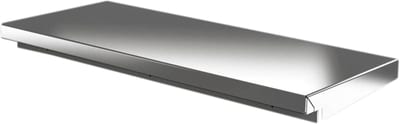

Rain hood AX 380X210 Rf
2472010
Rittal

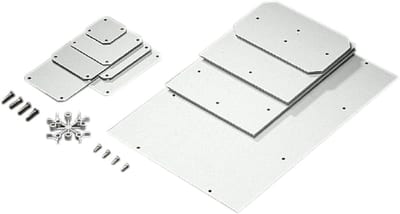

Mounting Plate M.Screws 331X220
9550000
Rittal

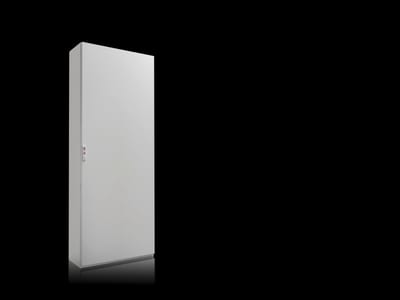

System Enclosure VX SE 800X2000X300
