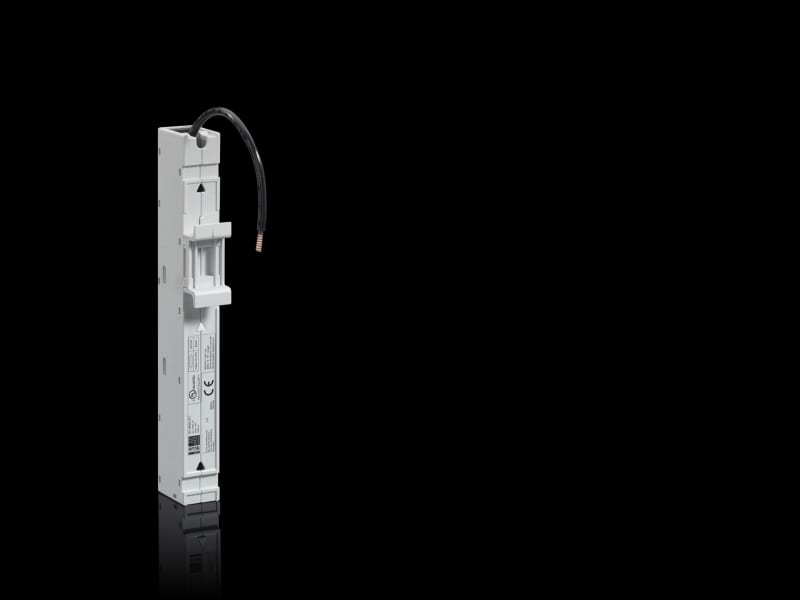

Komponentadaptere 1-pole 16A 690V L2
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9635372 Manufacturer description: SV component adaptor 16 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 14, WH: 18 x 160 mm. Komponentadapter 16 A, 690 V (AC), 1-pole (variant L2), connection cable AWG 14, WH: 18 x 160 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9635372
- EAN / GTIN
- 4028177934580
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Model designation
- SV 9635.372
- Product type
- Component Adapters
- Version
- L2
- Function principle
- For mechanical attachment and direct contacting of electrical equipment on the board
- Material
- Polyamide; Fire behavior corresponding to UL 94
- Color
- RAL 7035
- Rated operating voltage
- 690 V (AC), 1~
- Number of poles
- 1-pole
- Connection cables (AWG)
- AWG 14
- Length of connection cable
- 100 mm
- Support rails Qty/height
- 1 / 10 mm
- Support rail type
- Fixed
- Dimensions
- Width: 18 mm; Height: 160 mm; Depth: 35 mm
- Packaging unit
- 6 pc(s).
- Net weight
- 0.33 kg
- Gross weight
- 0.373 kg
- Copper weight (kg per piece)
- 0.008
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL + C-UL (listed)
- Rated current
- 16 A
- Mounting rail armament
- None
- Rated current In
- 16 A
- Min. busbar thickness
- 0 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 18 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177934580
- SAP 1200596563
- Code 82972161
Product Documentation
More from Rittal
Rittal
Rain hood AX 380X210 Rf
2472010
Rittal
Mounting Plate M.Screws 331X220
9550000
Rittal
System Enclosure VX SE 800X2000X300
5823600
Rittal

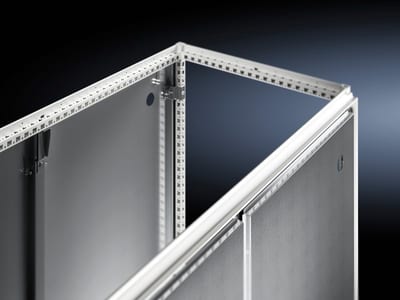

VX IT Partition plate Vert Diff HD 2200*1200
5301303
Rittal

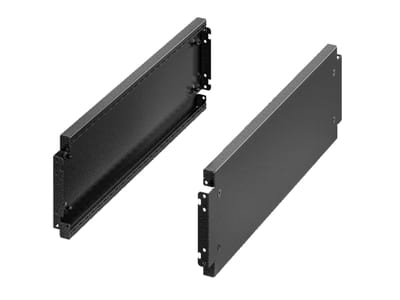

Base plates VX side 200X500
8640042
Rittal
Rittal 4598000 TS Support Strip for 800 mm Door Width
Rittal

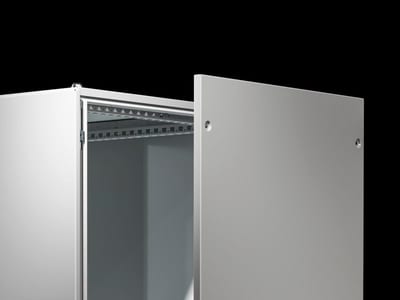

VX IT Sideplatevertikalt split
5301242
Rittal

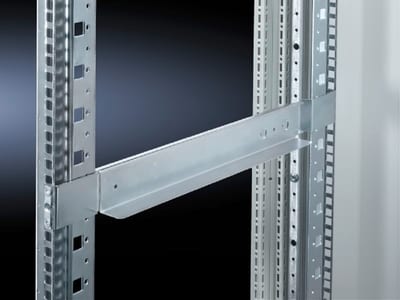

VX IT Gliderail for HD 2HE 425mm
