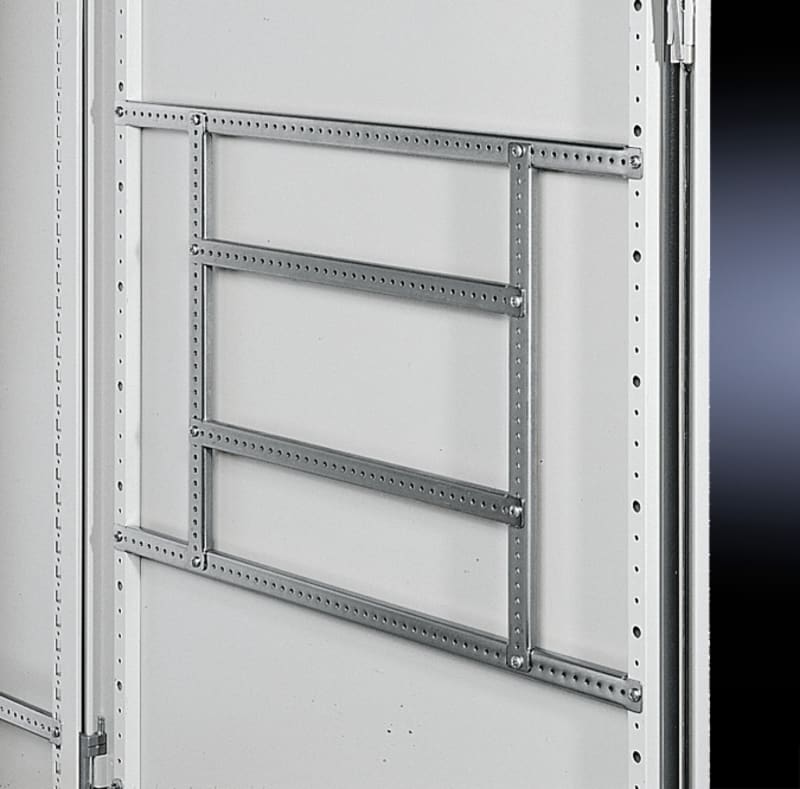

Rittal 4598000 TS Support Strip for 800 mm Door Width
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 4598000 is a TS support strip for TS, VX SE, TP and related enclosure ranges, sized for an 800 mm door width and 690 mm in length. Manufactured from zinc-plated carbon steel with a 4.5 mm hole diameter on a 25 mm pattern, and supplied with assembly components. Cross-section 25 x 13 mm, net weight 6.78 kg, sold in a pack of 20. Model designation TS 4598.000, colour RAL 9006, manufactured in Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 4598000
- EAN / GTIN
- 4028177103801
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- TS 4598.000
- Product type
- Support Strip
- Technical specifications
- 4.5 mm diameter hole on a 25 mm hole pattern
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Length
- 690 mm
- Suitable for door width
- 800 mm
- Installation options VX
- In door width 800 mm
- Installation options VX SE
- In door width 800 mm
- Installation options AX
- In door width 800 mm, with 3-point locking system in the locking door.; In enclosure height 800 mm, in conjunction with rail for interior installation AX
- Installation options AX plastic
- In door width 800 mm
- Installation options PC
- In door width 800 mm
- Installation options TS
- In door width 800 mm
- Packaging unit
- 20 pc(s).
- Net weight
- 6.78 kg
- Gross weight
- 7.225 kg
- PCF/VE (cradle-to-gate)
- 32.59 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ETIM 8
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Grid profile
- Suitable for enclosure building width
- 800 mm
- Width
- 690 mm
- Height
- 25 mm
- Depth
- 13 mm
- RAL-number
- 9006
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7318.19
Cross References
- EAN 4028177103801
- SAP 1000111059
- Code 8983125
Product Documentation
More from Rittal
Rittal
VX IT Sideplatevertikalt split
5301242
Rittal
VX IT Gliderail for HD 2HE 425mm
5302031
Rittal
PDU switched 16A/3P 42XC13
7979342
Rittal
Mounting plate KX 375X785
1573800
Rittal

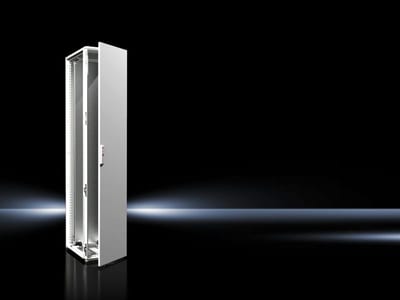

Floor-standing cabinet VX 600X2000X800
8608000
Rittal

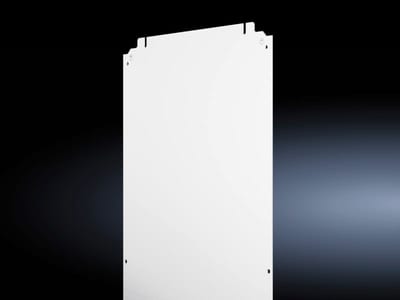

Mounting plate KX 125X285
1561800
Rittal

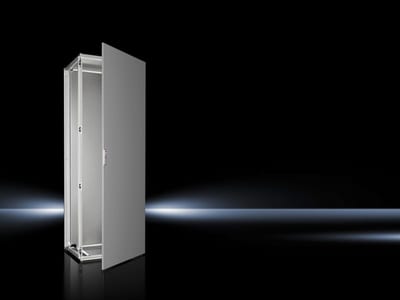

Floor-Standing Enclosure VX 800X2200X600
