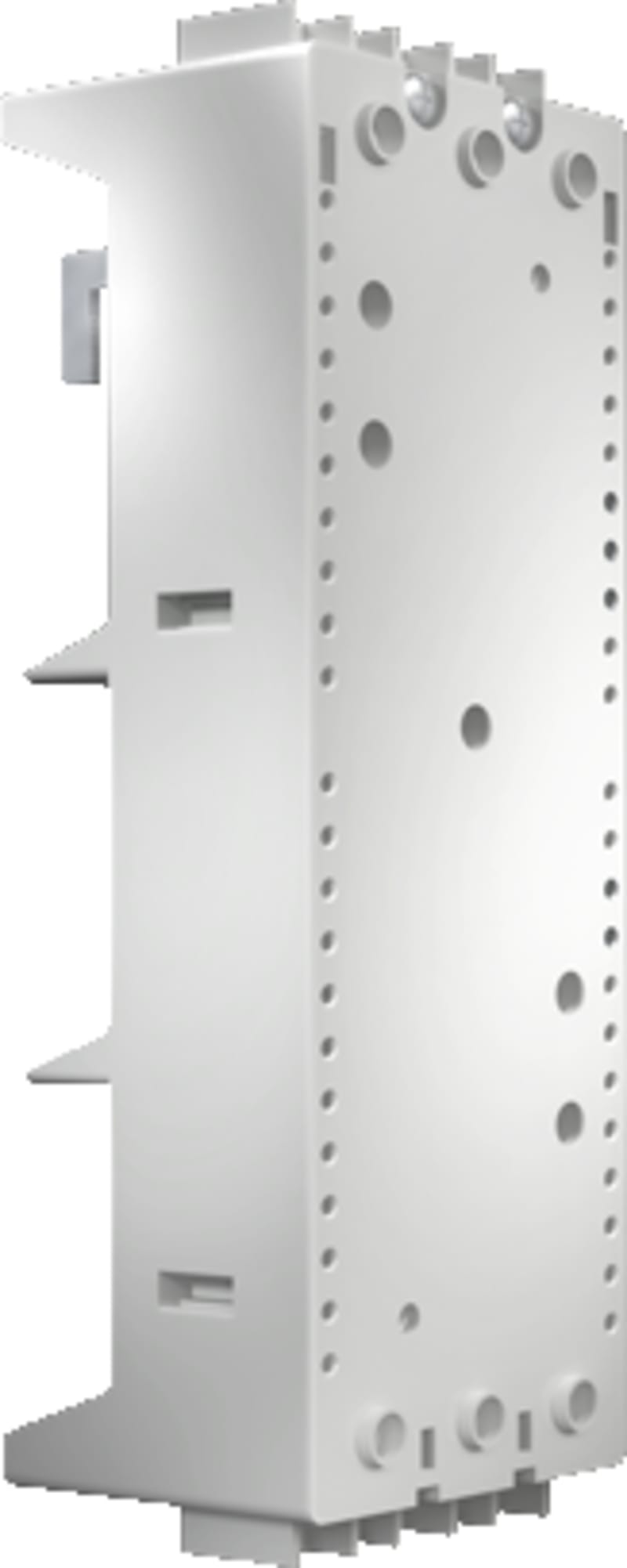

Device Adapter 100A, RL60 (9342410)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342410 Manufacturer description: SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm. Device Adapter 100A, RL60.
Technical Specifications
- Manufacturer part number (MPN)
- 9342410
- EAN / GTIN
- 4028177503762
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- SV 9342.410
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Type of connection (electrical)
- Box terminal
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, manual motor controller max. 100 A, NLRV/7
- Cable outlet
- Bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 72 mm; Height: 210 mm
- Connection of round conductors
- 10 ‐ 35 mm²
- Suitable for busbars
- Height: 5, 10 mm
- To fit manufacturer (model)
- ABB (MS 495, MS 496, MS 497); Eaton (PKZ2); Schneider Electric (GV3ME80); Siemens (S3)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.57 kg
- Gross weight
- 0.576 kg
- Copper weight (kg per piece)
- 0.114
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 100 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 72 mm
- Rail width
- 10 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177503762
- SAP 1000116801
- Code 81069455
Product Documentation
More from Rittal
Rittal

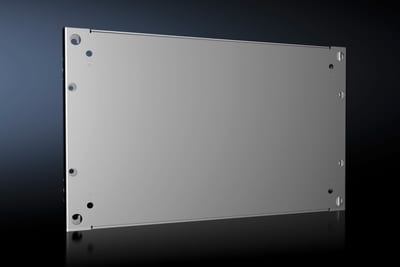

Partial Mounting Plate VX 600X400
8617510
Rittal

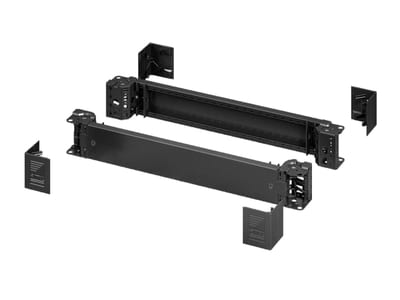

Base plate VX front / rear 850X100
8640004
Rittal
Swing frame VX, large, 22HE 600
8619010
Rittal

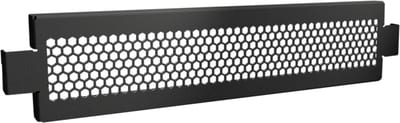

Panels VX ventilated 600X100
8620090
Rittal

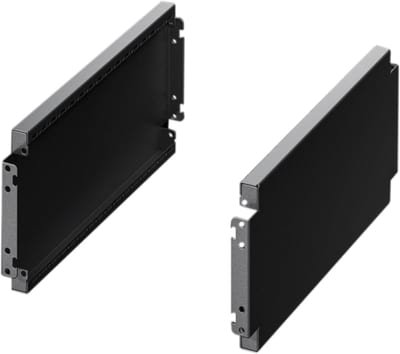

Base panels on the side 200X400
2820420
Rittal

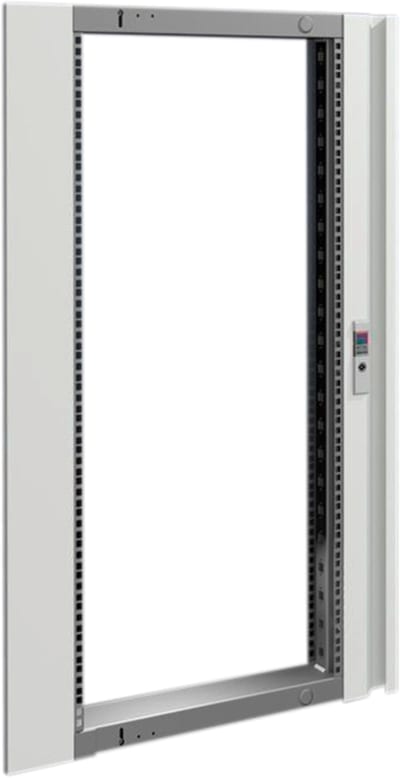

Swing frame VX large, 22HE 800 (8619030)
Rittal

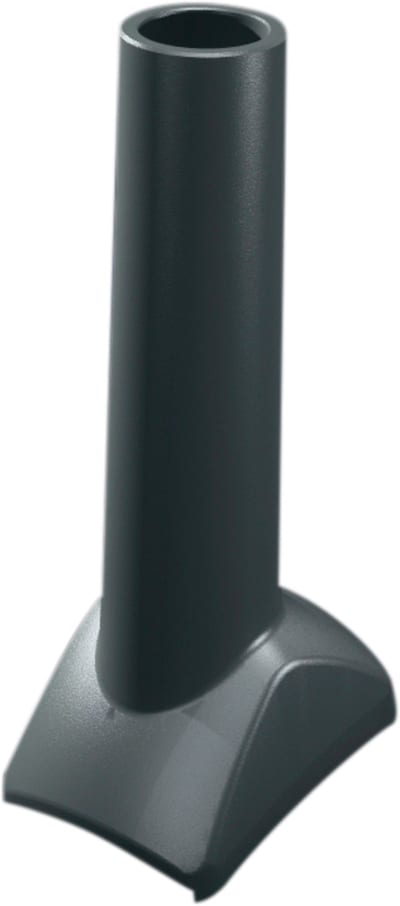

Mounting Element for Signal Tower
