Rittal

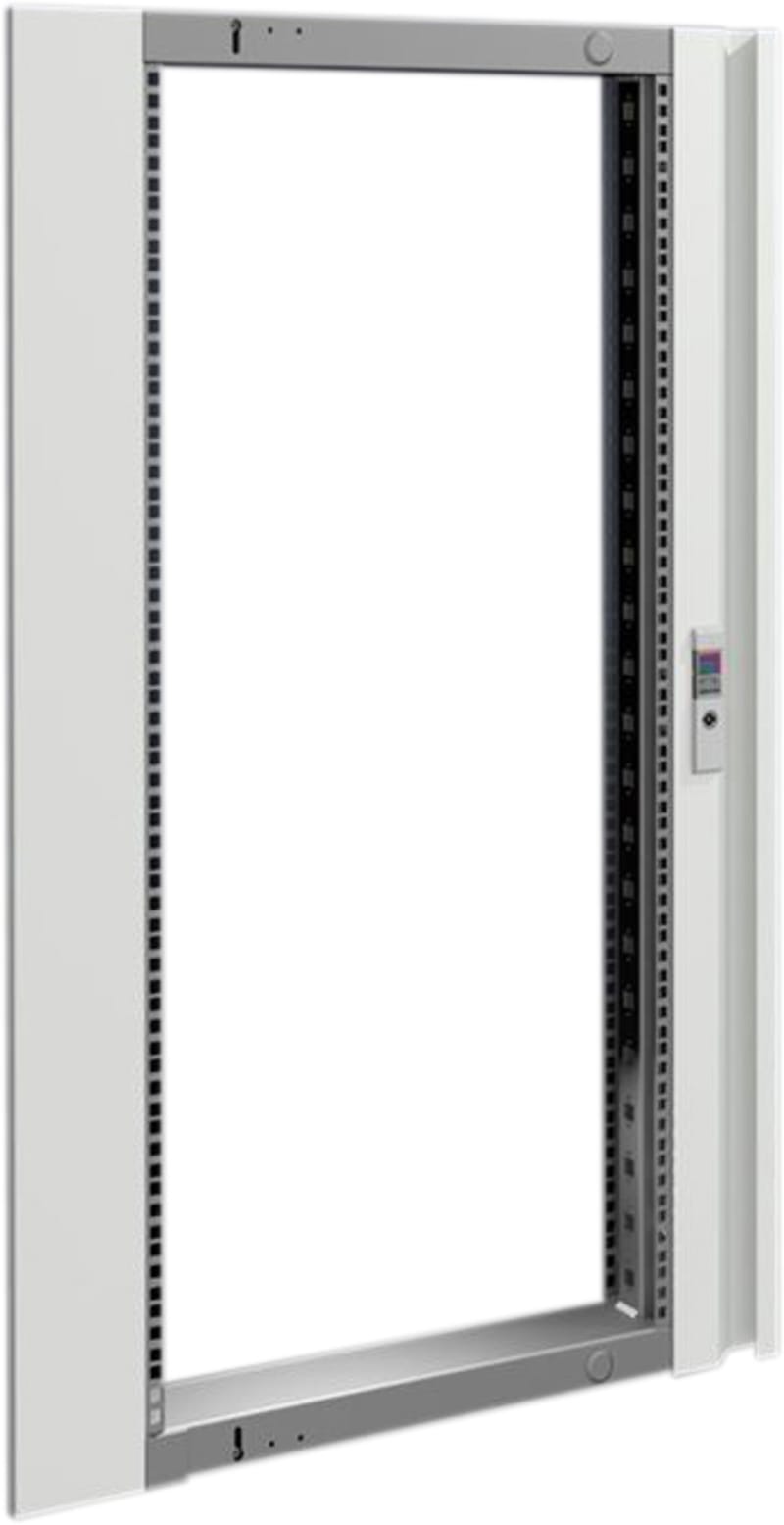

Swing frame VX large, 22HE 800 (8619030)
Part number8619030EAN / GTIN4028177920361HS code9403.99
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8619030 Manufacturer description: VX Swing frame, large, trim panel on both sides, for W: 800 mm, for min. enclosure height: 1200 mm, 22 U. Swing frame VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8619030
- EAN / GTIN
- 4028177920361
- Sales unit
- pcs
- Model designation
- VX 8619.030
- Product type
- Swing frame, large
- Version
- Trim panel on both sides
- Material
- Carbon steel
- Surface finish
- Frame: Zinc-plated; Panel: Spray-finished
- Color
- Trim panel: RAL 7035
- Supply includes
- Includes a locking system, 130° hinge; Parts for attaching to the installation kit
- Mounting tip
- A 23 x 64 mm system chassis may be needed, depending on the installation situation
- Height units
- 22 U
- Packaging unit
- 1 pc(s).
- Net weight
- 13.846 kg
- Gross weight
- 14.575 kg
- Customs tariff number
- 94039910
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building height
- 1200 mm
- Width
- 800 mm
- Height
- 1200 mm
- Colour
- Grey
- RAL-number
- 7035
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177920361
- SAP 1200107104
- Code 81956169
Product Documentation
Document preview: Rittal 8619030 — Data Sheet (OEM)
More from Rittal
Rittal
Mounting Element for Signal Tower
6206900
Rittal
Swing frame VX, large, 36HE 800 (8619032)
Rittal
Base plate VX front / rear 1800X100
8640009
Rittal
Termination Hatch VX 800X300
8620501
Rittal
Enclosure Bracket fast Ø130mm
6206320
Rittal
Partial Mounting Plate VX 1200X500
8617630
Rittal

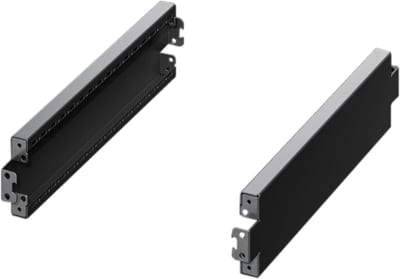

Base panels on the side 100X300
2820310
Rittal

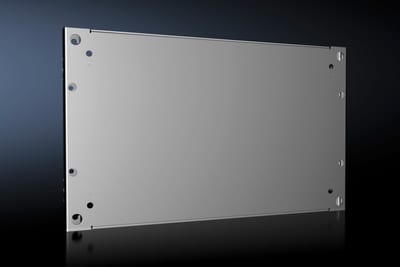

Partial Mounting Plate VX 800X400
