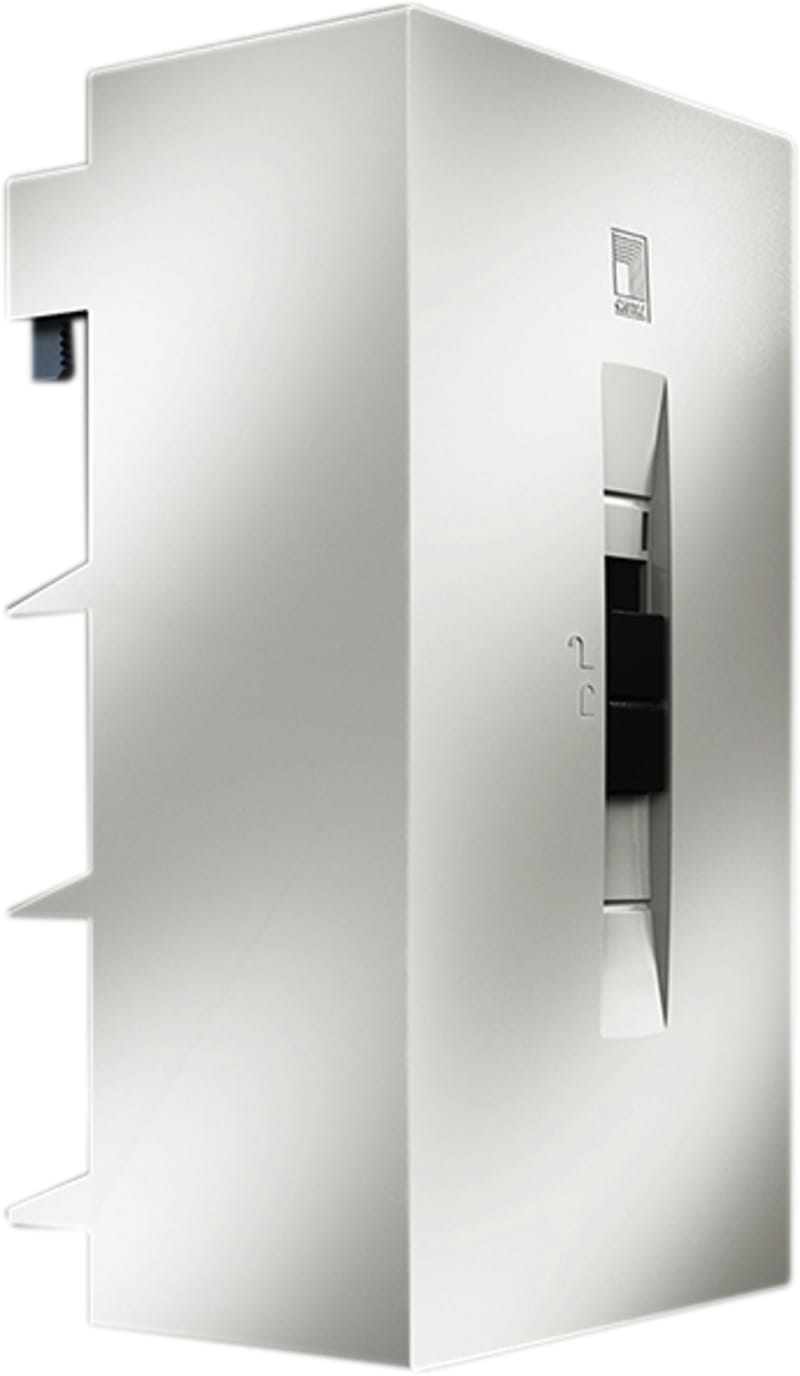

Connection Adapter 800A (9342280)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342280 Manufacturer description: SV Connection adaptor, 800 A, 690 V, 3-pole, cable outet top/ bottom, round conductor connection 95-300 mm², clamping area; WH: 33x20 mm. For connection round conductors or lam. copper busbars. For rails m. 60 mm senter-for-senter spacer.
Technical Specifications
- Manufacturer part number (MPN)
- 9342280
- EAN / GTIN
- 4028177503663
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Model designation
- SV 9342.280
- Product type
- Connection Adapters
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 3~
- Cable outlet
- Top/bottom
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Dimensions
- Width: 129 mm; Height: 246 mm
- Suitable for busbars
- Height: 5, 10 mm
- For busbar thickness
- 185 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 1.98 kg
- Gross weight
- 2.07 kg
- Copper weight (kg per piece)
- 0.358
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register
- Rated current
- 800 A
- Mounting rail armament
- None
- Rated current In
- 800 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 129 mm
- Rail width
- 33 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177503663
- SAP 1000116797
- Code 8614886
Product Documentation
More from Rittal
Rittal

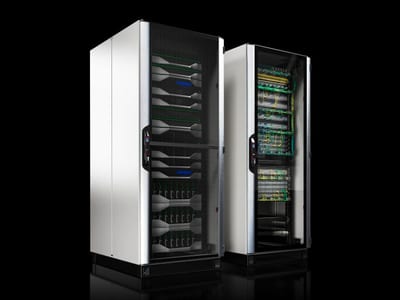

VX IT dyn 600X2000X1000 vent
5308813
Rittal

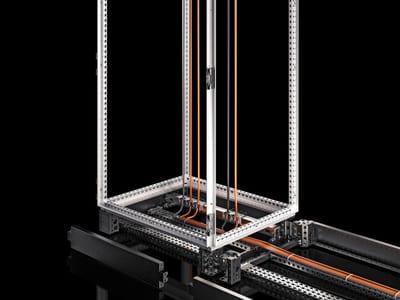

Cablebur TX CableNet 120X2000X300
7888310
Rittal

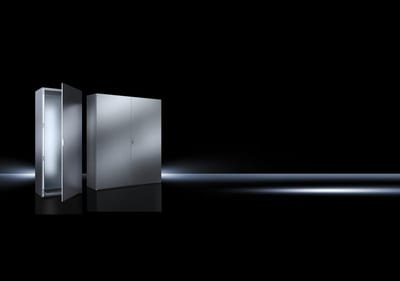

System Enclosure VX SE 800X1800X500 RF
5852600
Rittal
Sealing Insert for Cable Gland 15 mm, SZ AX 2580.115
2580115
Rittal

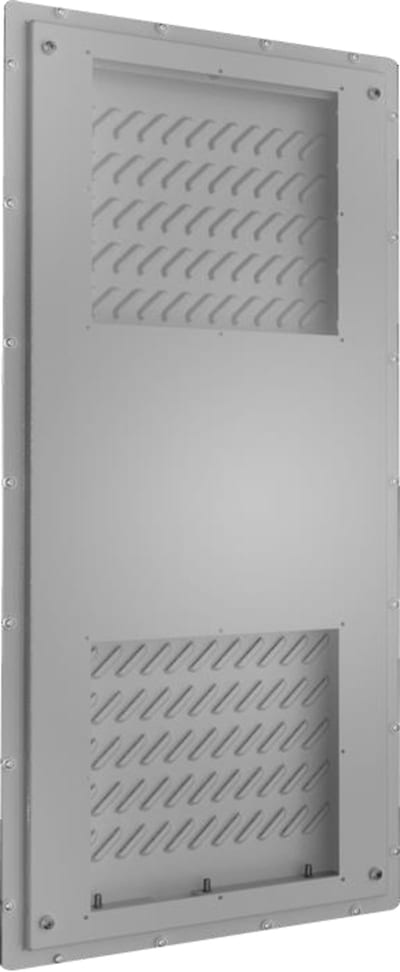

Adapter plate CS for klimaanlegg
9828110
Rittal

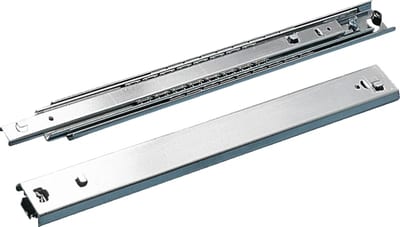

Teleskoprail F.400D Shelf
7061000
Rittal

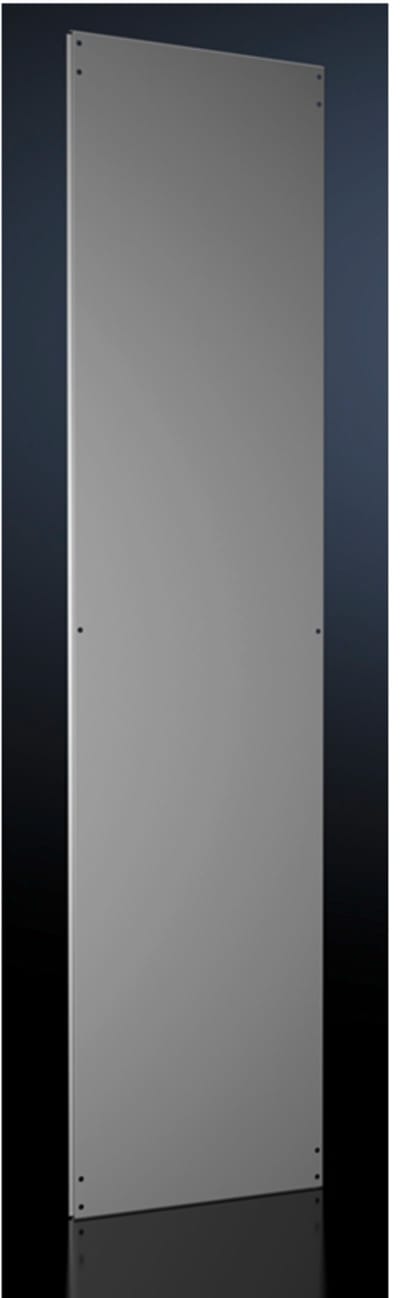

Partition VX HD 2200X600
