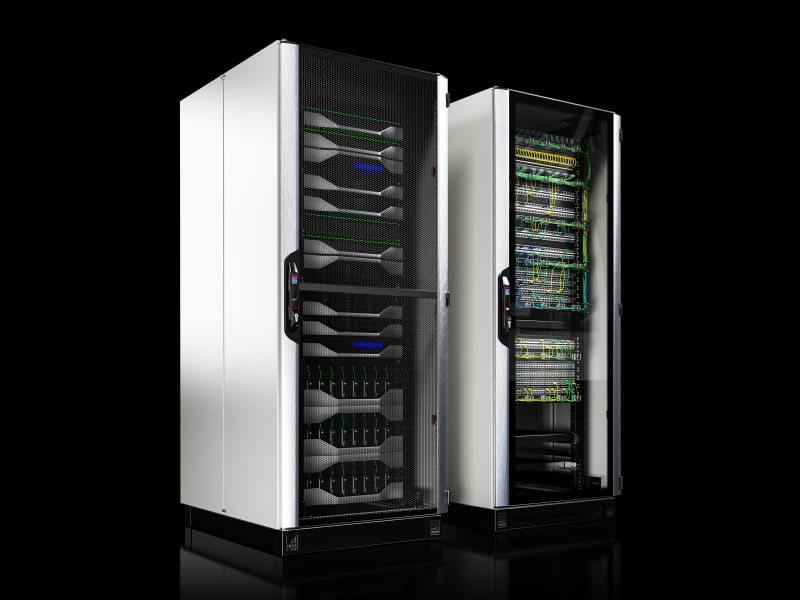

VX IT dyn 600X2000X1000 vent

Rittal 5308813 Manufacturer description: VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD:; 600 x 2000 x 1000 mm, 42 U. VX IT, ventilated, 19 "mounting angle dynamic, RAL7035, WHD 600x2000x1000mm, 42U.

Manufacturer part number (MPN)

5308813

EAN / GTIN

4028177945050

Sales unit

pcs

Model designation

VX 5308.813

Product type

Network/server rack VX IT

Material

Sheet steel; Aluminium; Front door: Aluminium

1.25 mm; Rear door

Sheet steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior installation: Spray-finished; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished

General colour

RAL 7035

Colour

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005; Interior installation, vent grille at the front: RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX enclosure frame with doors and roof plate; Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges; Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided

180° hinges; Lock front and rear

Comfort handle for profile half-cylinders and security lock 3524 E; Mounting angles, 482.6 mm (19"); Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out.; 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet; Roof plate, multi-piece, with cable entry in the corner sections front and rear

Dimensions

Width: 600 mm; Height: 2,000 mm; Depth: 1,000 mm

Units

42 U

Distance between levels as delivered

700 mm

Design

dynamic

Roof design

multi-piece, with cable entry in the corner sections front and rear

Rear door design

Sheet steel door, vented, vertically divided, 180° hinges

Front door design

Aluminium/sheet steel door, vented, one-piece, 180° hinges

Mounting angle design

Dynamic 482.6 mm (19") mounting angles in the VX IT

Base design

Open

Mounting angles position

482.6 mm (19") level, front and rear

Load capacity

18,000 N

Basic material

Sheet steel

Net weight

75.3 kg

Gross weight

85.7 kg

PCF per pack (cradle-to-gate)

206 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

600 mm

Height

2000 mm

Depth

1000 mm

Number of height units

42

Max. load capacity

1800 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20
