air/water heat veksler 3000W
Pricing
Request a quote
We reply within 24 hours
Product Description

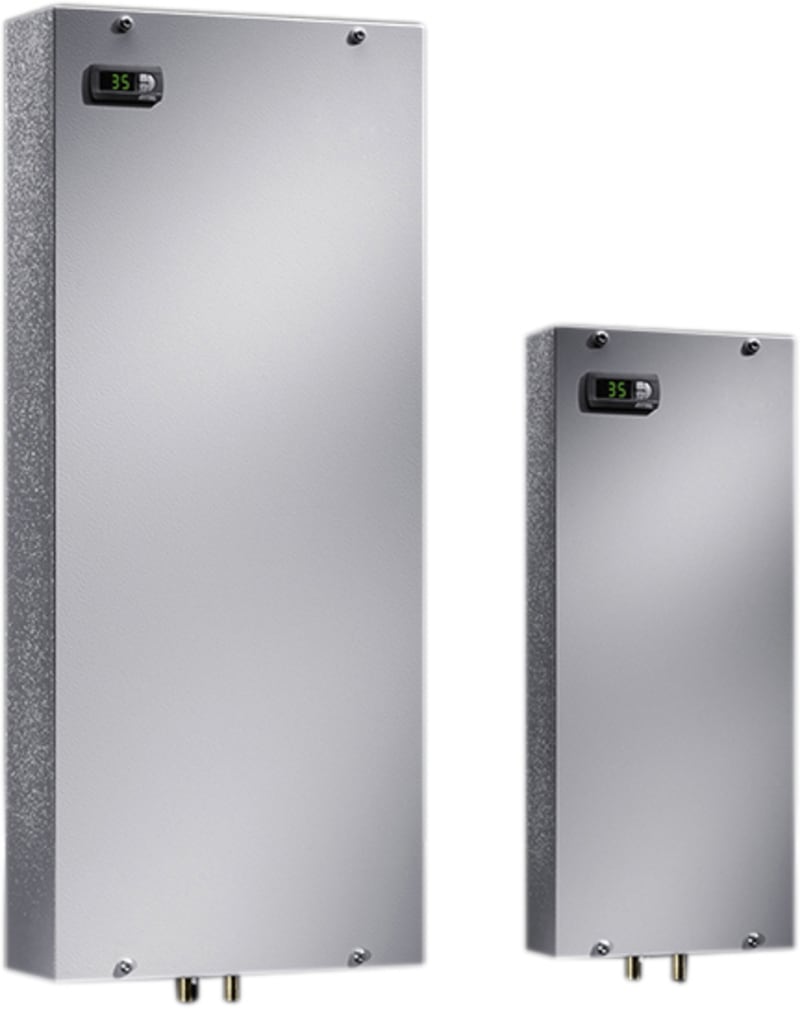

Rittal 3374100 Manufacturer description: SK Air/water heat exchanger, wall-mounted, 10236 BTU/h, 230 V, 1~, 50/60 Hz, basic controller, water-carrying parts: copper/brass, WHD: 400 x 950 x 145 mm. SK air/water heat veksler 3000W.
Technical Specifications
- Manufacturer part number (MPN)
- 3374100
- EAN / GTIN
- 4028177495692
- Sales unit
- pcs
- Model designation
- SK 3374.100
- Product type
- Air-Water Heat Exchangers
- Version
- wall-mounted; Water-carrying parts copper/brass (Cu/CuZn)
- Color
- RAL 7035
- Supply includes
- Wired ready for connection; Drilling template; Sealing and assembly components
- Total cooling output
- L 35 W 10 at 400 l/h: 3 kW; L 35 W 10 at 400 l/h: 10,236 BTU/h
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 169 W; At 60 Hz: 232 W
- Permissible operating pressure (p. max.)
- 1: 10 bar; 14.5: 145 PSI
- Duty cycle
- 100 %
- Cooling medium
- Water (see Internet for specifications)
- Water inlet temperature
- 1 °C...30 °C; 34 °F...86 °F
- Water connections
- ½" connector sleeve; G ⅜" external thread
- Temperature control
- Basic controller (factory setting +35 °C)
- Operating temperature range
- 1 °C...70 °C; 34 °F...158 °F
- Dimensions
- Width: 400 mm; Height: 950 mm; Depth: 145 mm
- Setting range
- 20 °C...55 °C; 68 °F...131 °F
- Protection category IP to EN 60 529
- IP 55
- Protection category NEMA
- UL Type 1; UL Type 3R; UL Type 12
- Packaging unit
- 1 pc(s).
- Net weight
- 23.043 kg
- Gross weight
- 24.256 kg
- Customs tariff number
- 84158300
- ETIM 9
- EC002515
- ETIM 8
- EC002515
- ECLASS 8.0
- 27180712
- Add-on type
- Wall surface mounted
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Voltage type
- AC
- Nominal cooling performance L35W10 400l/h
- 3000 W
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8415.83
Cross References
- EAN 4028177495692
- SAP 1000488554
- Code 8803520
Product Documentation
