Rittal
Innsk.fan 3ST. 230V (AC)
Part number3342230EAN / GTIN4028177041523HS code8414.51
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

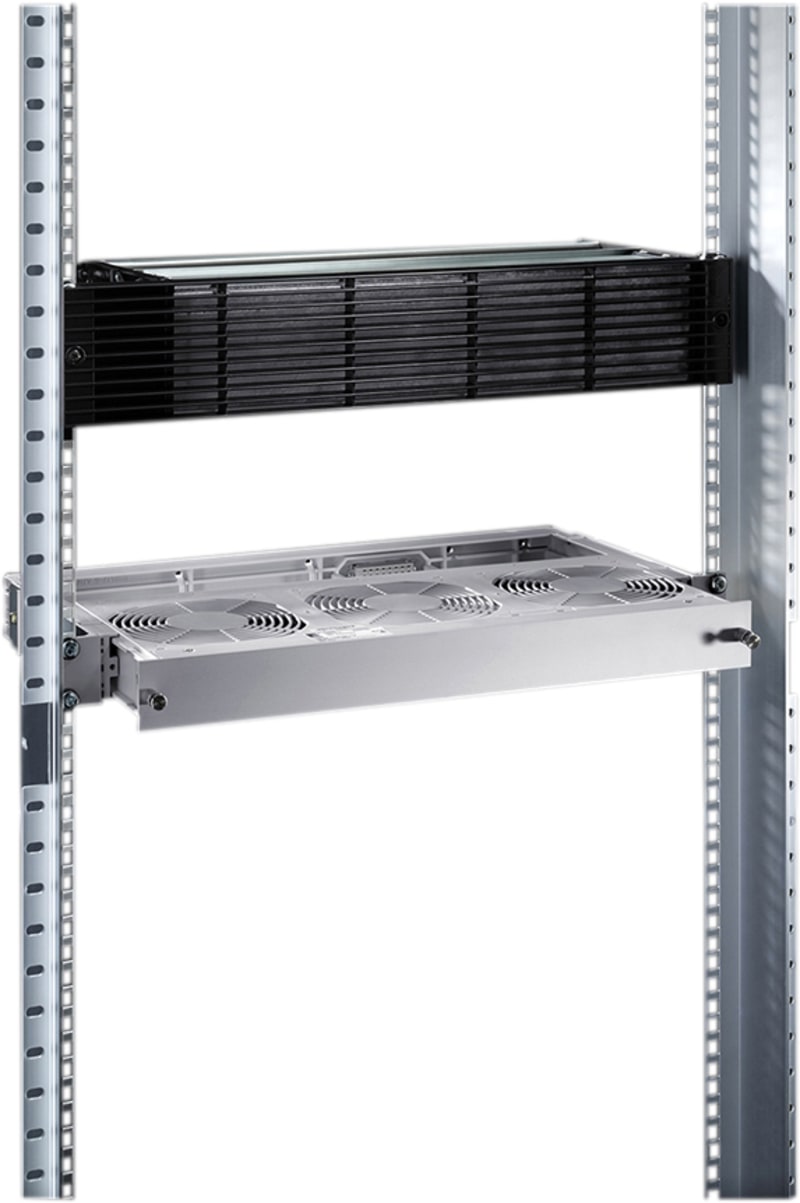

Rittal 3342230 Manufacturer description: SK rack-mounted fan, for 482.6 mm (19), 282.5 cfm 230 V, 1~, 50/60 Hz, WHD: 482.6 x 44 x 200 mm. Innskyvningsvifte 3 pcs 230V (AC), 480 m^3/h.
Technical Specifications
- Manufacturer part number (MPN)
- 3342230
- EAN / GTIN
- 4028177041523
- Sales unit
- pcs
- Model designation
- SK 3342.230
- Product type
- Rack-mounted fans for 482.6 mm
- Color
- RAL 7035
- Supply includes
- Wired unit ready for connection; Incl. terminal strip and assembly components
- Air throughput (unimpeded air flow)
- 480 m³/h; 282.5 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Dimensions
- Width: 482.6 mm; Height: 44 mm; Depth: 200 mm
- Distance between fan axes
- 105 mm
- Noise pressure level
- At 50 Hz: 51 dB(A)
- Operating temperature range
- -10 °C...55 °C; 14 °F...131 °F
- Packaging unit
- 1 pc(s).
- Net weight
- 2.58 kg
- Gross weight
- 2.743 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- UR + C-UR (recognized); VDE
- Mounting method
- Screw mounting
- Colour
- Grey
- Width
- 482.6 mm
- Height
- 44 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- Yes
- Number of fans
- 1
- EMC-version
- No
- With filter
- No
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 480 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Noise emission
- 0 dB(A)
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.51
Cross References
- EAN 4028177041523
- SAP 1000522610
- Code 8987523
Product Documentation
Document preview: Rittal 3342230 — Data Sheet (OEM)
More from Rittal
Rittal
Mounting Rail VX 18X38 400
8617700
Rittal

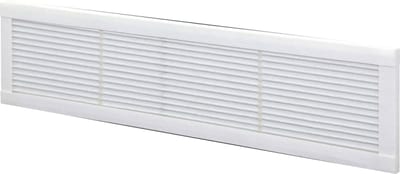

Foldefilter for Blue e+
3285700
Rittal

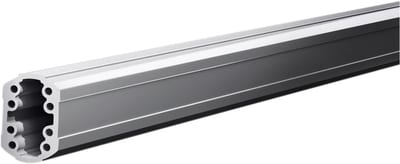

Rittal CP 60 Support Section, Solid Aluminium, 500 mm
6206050
Rittal

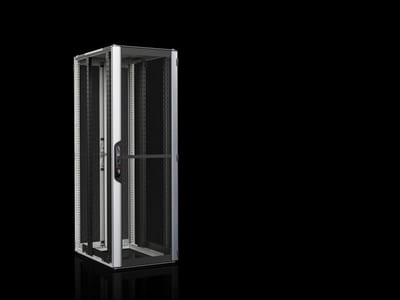

VX IT dyn 600X2200X1000
5313813
Rittal

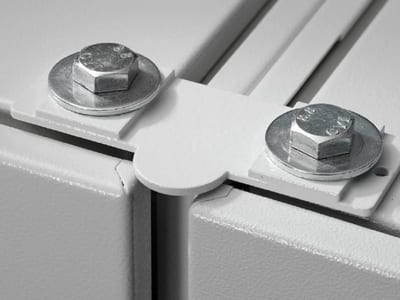

VX IT External Mounting Bracket
5301310
Rittal

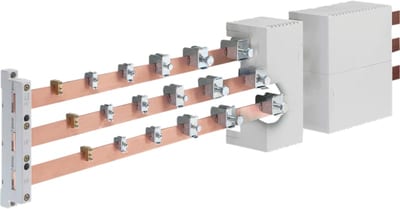

For.terminal 35-70mm 3-5mm CU
3453500
Rittal

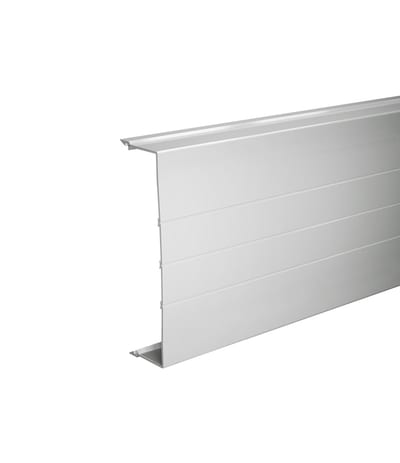

Cover Profile RL60 2 pcs (9340200)
