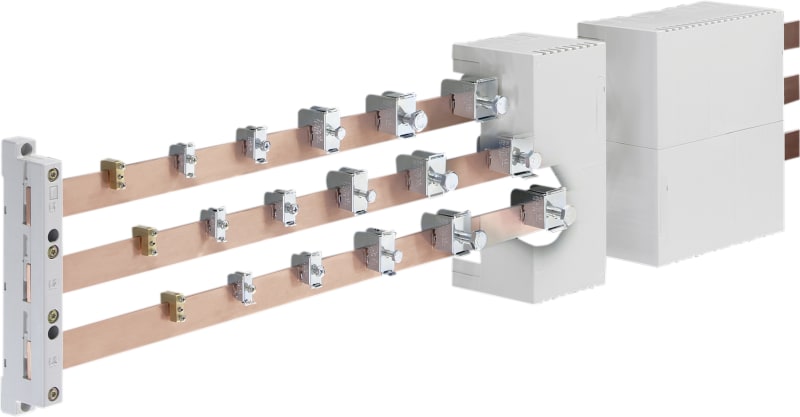

For.terminal 35-70mm 3-5mm CU
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3453500 Manufacturer description: SV Conductor connection clamp, 35-70 mm², clamping area WH:; 16,5x15 mm, for bar thickness 5 mm. For connection of round conductors and laminated copper busbars.
Technical Specifications
- Manufacturer part number (MPN)
- 3453500
- EAN / GTIN
- 4028177042704
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Model designation
- SV 3453.500
- Product type
- Conductor terminal
- Material
- Carbon steel
- Surface finish
- Zinc-plated, passivated
- Connection of round conductors
- 35 ‐ 70 mm²
- For busbar thickness
- 5 mm
- Packaging unit
- 15 pc(s).
- Net weight
- 1.515 kg
- Gross weight
- 1.62 kg
- PCF/VE (cradle-to-gate)
- 6.4 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 85369010
- ETIM 9
- EC000001
- ETIM 8
- EC000001
- ECLASS 8.0
- 27141146
- Max. conductor cross section
- 70 mm²
- Busbar thickness
- 35–70 mm
- Suitable for strip conductor connection
- No
- Suitable for round conductor connection
- No
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 70 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4028177042704
- SAP 1000111268
- Code 81235601
