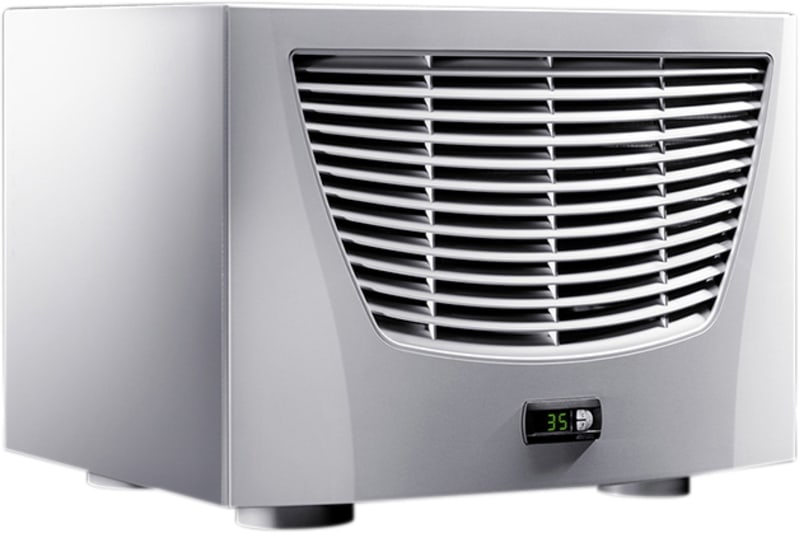

Air/water-varmeveksl.ceiling 2.5kW (3209100)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3209100 Manufacturer description: SK Air/water heat exchanger, roof-mounted, 8530 BTU/h 230 V, 1~, 50/60 Hz, basic controller, water-carrying parts: copper/brass, WHD:; 597 x 417 x 475 mm. Air/water-heat exchanger ceiling-mounted, 2.5kW.
Technical Specifications
- Manufacturer part number (MPN)
- 3209100 EAN / GTIN: 4028177429819 Sales unit: pcs Model designation: SK 3209.100 Product type: Air-Water Heat Exchangers Version: roof-mounted; Water-carrying parts copper/brass (Cu/CuZn) Color: RAL 7035 Supply includes: Wired ready for connection (plug-in terminal strip); Drilling template; Sealing mat; Fasteners Total cooling output: L 35 W 10 at 400 l/h: 2.5 kW; L 35 W 10 at 400 l/h: 8,530 BTU/h Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz Rated power Pel: At 50 Hz: 95 W; At 60 Hz: 110 W Permissible operating pressure (p. max.): 1: 10 bar; 14.5: 145 PSI Type of connection (electrical): Plug-in terminal strip Duty cycle: 100 % Cooling medium: Water (see Internet for specifications) Water inlet temperature: 1 °C...30 °C; 34 °F...86 °F Water connections: ½" connector sleeve; G ⅜" external thread Temperature control: Basic controller (factory setting +35 °C) Operating temperature range: 1 °C...70 °C; 34 °F...158 °F Dimensions: Width: 597 mm; Height: 417 mm; Depth: 475 mm Protection category: IP 65 available on request Setting range: 20 °C...55 °C; 68 °F...131 °F Protection category IP to EN 60 529: IP 55 Packaging unit: 1 pc(s). Net weight: 33.25 kg Gross weight: 35 kg Customs tariff number: 84158300 ETIM 9: EC002515 ETIM 8: EC002515 ECLASS 8.0: 27180712 Approvals: CSA; UR + C-UR (recognized) Add-on type: Roof structure Operating voltage AC 50 Hz: 207–253 V Operating voltage AC 60 Hz: 207–253 V Voltage type: AC Nominal cooling performance L35W10 400l/h: 2500 W Country of origin: Italy
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177429819
- SAP 1000633891
- Code 8315096
Product Documentation
