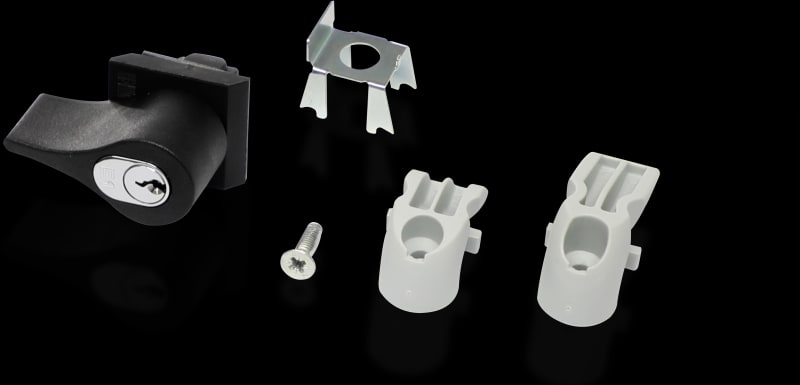

Rittal SZ 2577.010 Plastic Toggle Handle with E1 Lock Insert for AX/KX Enclosures

Rittal SZ 2577.010 is a fibreglass-reinforced polyamide toggle handle in RAL 9011 for AX and KX enclosures, supplied with an E1 lock insert. The set includes the plastic handle, PU seal, zinc-plated clamping piece, AX and KX locking lugs and an assembly screw; the key is not supplied. With an E1 lock the key can only be removed when the lock is closed, so only one handle can be used per enclosure.

Manufacturer part number (MPN)

2577010

EAN / GTIN

4028177952423

Sales unit

pcs

Model designation

SZ 2577.010

Product type

Plastic Handles

Material

Enclosure made of fiber-glass reinforced polyamide; Locking lug: plastic; Seal: PU; Clamping piece: carbon steel, zinc-plated

Color

RAL 9011

Supply includes

Supplied without key; Plastic handle; Seal; Clamping piece; AX locking lug; KX locking lug; Assembly screw

Note on Model No.

With an E1 lock, the key can only be removed when the lock is closed. This means that only one 2577.010 plastic handle can be used per enclosure. A 2533.100 plastic handle without lock can then be used for a possible second cam.

Lock

Lock Insert: E1 lock

Packaging unit

1 pc(s).

Net weight

0.111 kg

Gross weight

0.111 kg

Customs tariff number

39269097

ETIM 9

EC000327

Padlock locking

No

Toggle

Yes

Type of handle

Toggle handle

Type of closure

Cylinder

Espagnolette locking (3-point locking)

No

Country of origin

Germany

HS Code

3926.30

• EAN 4028177952423
• SAP 1200596559
• Code 82972175
