Rittal

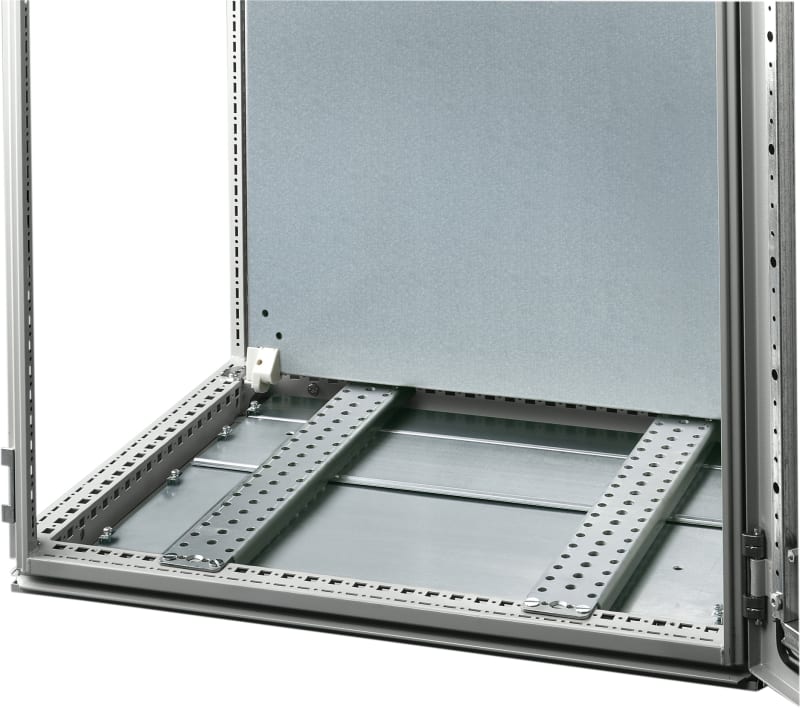

Support Rail F for Enclosure Depth 600 mm, TS 4396.000
Part number4396000EAN / GTIN4028177100398HS code9403.20
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 4396000 (TS 4396.000) support rail 75 mm for enclosure depth 600 mm; pack of 4.
Technical Specifications
- Manufacturer part number (MPN)
- 4396000
- EAN / GTIN
- 4028177100398
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- TS 4396.000
- Product type
- Support rail 75 x 20 mm
- Version
- Slotted
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options
- On the inner mounting level, on VX enclosure profile; On the vertical TS enclosure section via snap-on nuts 8800.806 or via adapter rail for VX compatibility, offset in the height, via TS punched rail 25 x 38 mm; On the horizontal TS enclosure section: in the width, in the depth; On the horizontal VX SE enclosure section in the width at the bottom and top, or in the depth at the bottom and top using snap-on nut 8800.808
- Packaging unit
- 4 pc(s).
- Net weight
- 6.232 kg
- Gross weight
- 6.58 kg
- PCF/VE (cradle-to-gate)
- 30.99 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC001285
- ETIM 8
- EC001285
- ECLASS 8.0
- 27189261
- Model
- Grid profile
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building depth
- 600 mm
- Width
- 540 mm
- Depth
- 600 mm
- RAL-number
- 7035
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177100398
- SAP 1000320557
- Code 8845598
Product Documentation
Document preview: Rittal 4396000 — Data Sheet (OEM)
