Rittal
VX IT empty 600X1200X600
Part number5326190EAN / GTIN4028177945463HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

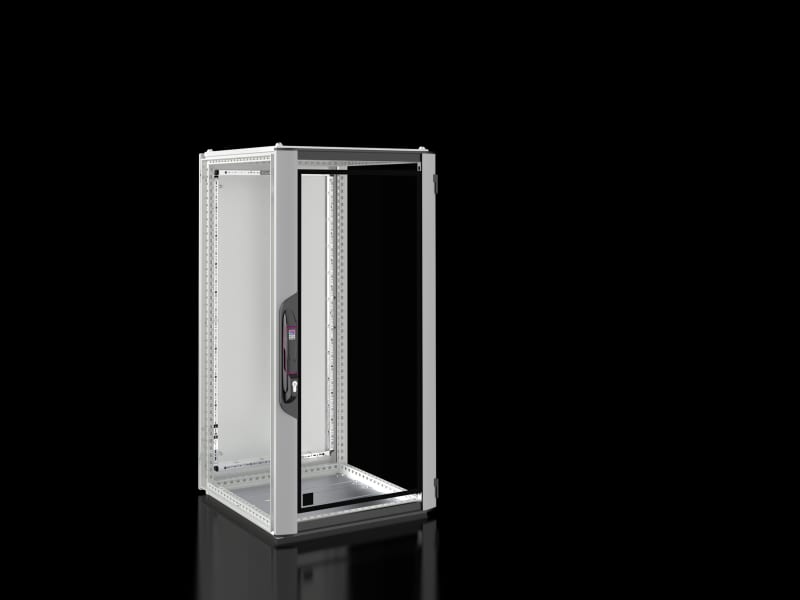

Rittal 5326190 Manufacturer description: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 1200 x 600 mm, 24 U, IP 55. VX IT, solid, IP55, empty housing, RAL7035, WHD 600x1200x600mm, 24U.
Technical Specifications
- Manufacturer part number (MPN)
- 5326190
- EAN / GTIN
- 4028177945463
- Sales unit
- pcs
- Model designation
- VX 5326.190
- Product type
- Network/server rack VX IT
- Material
- Sheet steel; Aluminium; Glazed door: Single-pane safety glass
- 3 mm; Front door
- Aluminium
- 1.25 mm; Rear door
- Sheet steel, 1.5 mm
- Surface finish
- Enclosure frame: Dipcoat-primed; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished
- General colour
- RAL 7035
- Colour
- Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections
- RAL 9005; Handle and hinges
- RAL 9005
- Supply includes
- VX enclosure frame with doors and roof plate; Glazed aluminium door at the front, 180° hinges; Sheet steel rear door, solid, one-piece
- 130° hinges; Lock front and rear
- Comfort handle for profile half-cylinders and security lock 3524 E; Roof plate, one-piece, solid; Base tray with gland plate, multi-piece, solid; Baying seal and sealing kit for gland plates (supplied loose); 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet
- Dimensions
- Width: 600 mm; Height: 1,200 mm; Depth: 600 mm
- Units
- 24 U
- Roof design
- one-piece, solid
- Rear door design
- Sheet steel door, solid, one-piece, 130° hinges
- Front door design
- Glazed aluminium door, solid, one-piece, 180° hinges
- Mounting angle design
- without
- Base design
- Base tray with gland plate, multi-piece, solid
- Mounting angles position
- without
- Protection category to IEC 60 529
- IP 55 only in conjunction with baying seal or screw-fastened side panels
- IK Code
- IK08
- Basic material
- Sheet steel
- Net weight
- 49.62 kg
- Gross weight
- 50.8 kg
- PCF per pack (cradle-to-gate)
- 125.2 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002499
- ECLASS 8.0
- 27180207
- Certificates
- Negative Certificate; Surface finish; Protection category
- Approvals
- UL + C-UL (listed)
- Mounting level
- None
- Type of profile rail
- None
- Number of doors
- 2
- Type of ventilation
- Passive
- Width
- 600 mm
- Height
- 1200 mm
- Depth
- 600 mm
- Max. load capacity
- 1500 kg
- With roof plate
- Yes
- With earthing
- No
- With front door
- Yes
- With sidewall
- No
- Demountable
- No
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177945463
- SAP 1200493152
- Code 82690978
Product Documentation
Document preview: Rittal 5326190 — Data Sheet (OEM)
More from Rittal
No image
Rittal
Rittal DK 5501.685 pull-out component shelf, 19-Inch, 50 kg
5501685
Rittal
Floor-standing cabinet VX 600X2000X600
8606000
Rittal
Bus-cabinet KX 800X300X155
1613000
Rittal
Cable Trunking VX L 2000
8800755
Rittal
Rittal AX 2580.000 SZ Sealing Insert for Cable Gland, Small, Modular
2580000
Rittal

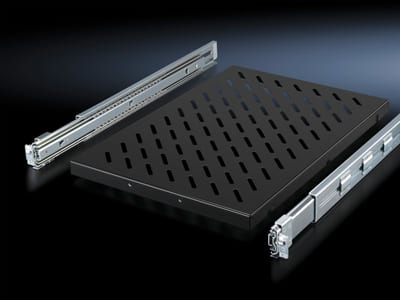

Withdrawable shelf for 19" (5501675)
Rittal

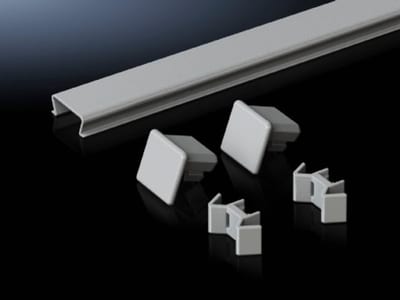

Ceilingmellomstykke for TS D800
