Rittal

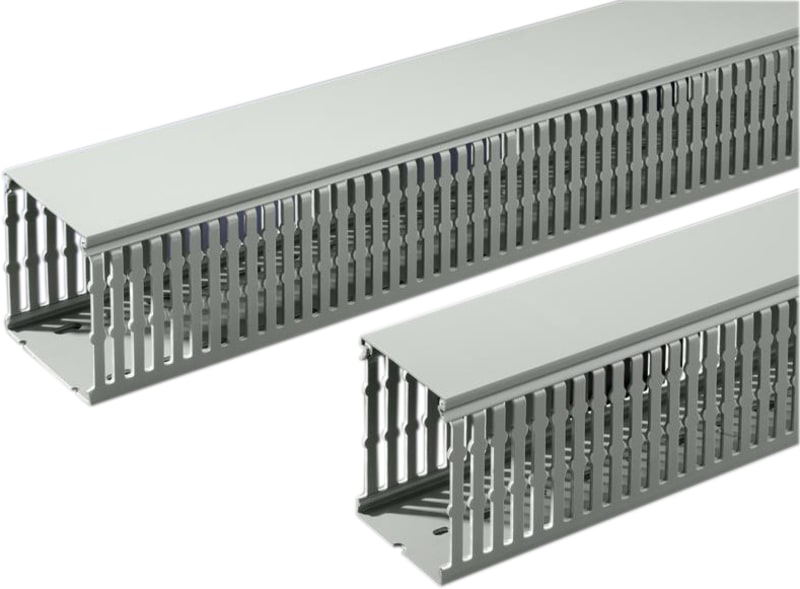

Cable Trunking VX L 2000
Part number8800755EAN / GTIN4028177919648HS code7318.29
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8800755 Cable Trunking VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8800755
- EAN / GTIN
- 4028177919648
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Model designation
- TS 8800.755
- Product type
- Cable duct
- Version
- for mounting plates for mounting on VX system perforation
- Material
- Hard PVC; Flame-resistant, self-extinguishing; Temperature resistant to +60 °C
- Color
- Similar to RAL 7030
- Supply includes
- Cable duct with cover
- Bar width
- 5.5 mm
- Slot width
- 4.5 mm
- Installation options
- With DIN punchings for direct mounting on the enclosure section or on surfaces such as mounting plates.; If the rear mounting plate is aligned flush with the enclosure frame (installation position ± 0 mm), then the horizontal cable ducts will be flush against the cable ducts mounted on the enclosure section; 50 mm wide cable duct for separately positioned VX25 enclosures with side wall on the left and right vertical sections adjacent to the mounting plate
- Dimensions
- Width: 50 mm; Depth: 80 mm; Length: 2,000 mm
- Packaging unit
- 18 pc(s).
- Net weight
- 18.9 kg
- Customs tariff number
- 39259020
- ETIM 9
- EC000012
- ECLASS 8.0
- 27400703
- Width
- 50 mm
- Halogen free
- No
- Height
- 80 mm
- Flexible
- No
- Type of side wall
- Slotted
- RAL-number
- 7030
- Self-extinguishing
- Yes
- Length
- 2000 mm
- Type of fastening
- Bottom perforation
- Usable cross section
- 50 mm²
- Distance of slots
- 5.5 mm
- Slit width
- 4.5 mm
- With cover
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7318.29
Cross References
- EAN 4028177919648
- SAP 1200107028
- Code 81963732
Product Documentation
Document preview: Rittal 8800755 — Data Sheet (OEM)
