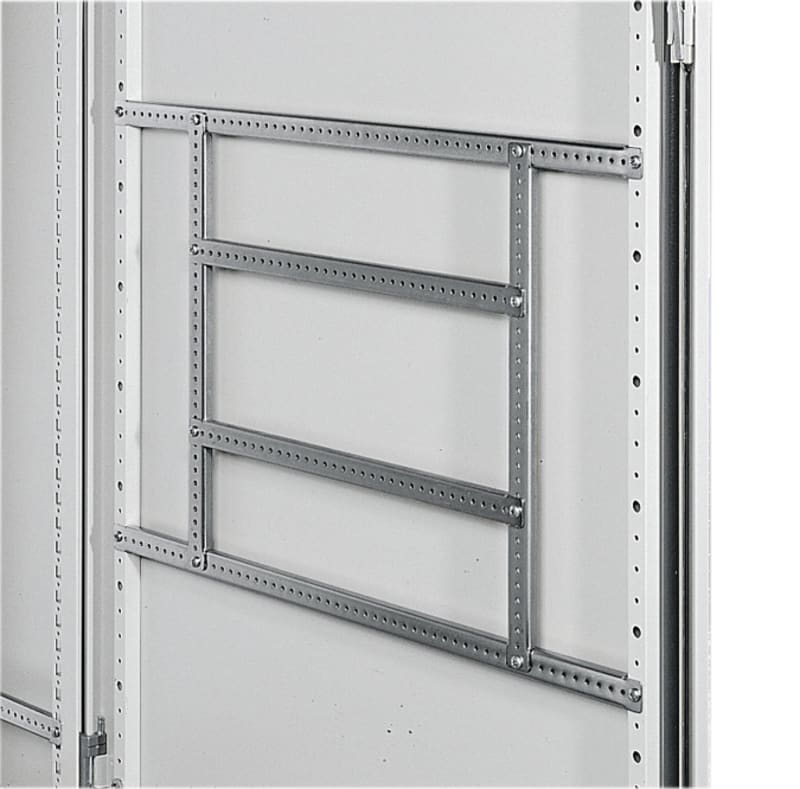

Rittal 4596000 TS Support Strip 490 mm for TS/VX SE/TP Door Width 600 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 4596000 is a TS support strip in zinc-plated carbon steel with a 4.5 mm hole on a 25 mm pattern, 490 mm in length. It is designed for the inner mounting level of TS, VX SE and TP enclosures at door widths of 600 mm and depth/width 500 mm, and is also referenced across AX, PC and IW installation options. Supplied in packs of 20 with assembly components; model designation TS 4596.000.
Technical Specifications
- Manufacturer part number (MPN)
- 4596000
- EAN / GTIN
- 4028177103764
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- TS 4596.000
- Product type
- Support Strip
- Technical specifications
- 4.5 mm diameter hole on a 25 mm hole pattern
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Length
- 490 mm
- Suitable for door width
- 600 mm
- Installation options VX
- In door width 600 mm
- Installation options VX SE
- In door width 600 mm; In enclosure width/depth 500 mm, on the inner mounting level
- Installation options AX
- In door width 500 mm, with 3-point locking system in the locking door; In enclosure width 500 mm and in enclosure height 600 mm, in conjunction with rail for interior installation AX
- Installation options AX stainless steel
- In enclosure width + 500 mm; In enclosure height 600 mm
- Installation options AX plastic
- In door width 600 mm
- Installation options for 3-part AX
- In enclosure depth 673 mm or in the width of the wall section
- Installation options PC
- In door width 600 mm
- Installation options IW
- In door width 600 mm
- Installation options TS
- In door width 600 mm; In enclosure width/depth 500 mm, on the inner mounting level
- Packaging unit
- 20 pc(s).
- Net weight
- 4.06 kg
- Gross weight
- 5.1 kg
- PCF/VE (cradle-to-gate)
- 23.32 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ETIM 8
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Grid profile
- Suitable for enclosure building width
- 500 mm
- Suitable for enclosure building height
- 500 mm
- Suitable for enclosure building depth
- 500 mm
- Width
- 490 mm
- Height
- 25 mm
- Depth
- 500 mm
- RAL-number
- 9006
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177103764
- SAP 1000111057
- Code 81053910
Product Documentation
More from Rittal
Rittal
System chassis VX in 23X64 400
8617110
Rittal
Swing frame VX, small, 3HE 600
8619500
Rittal
Floor Mounting Bracket for VX Base
8660100
Rittal
Sokkeplater VX side 200X800
8640044
Rittal
Partial Mounting Plate VX 600X600
8617530
Rittal
Swing frame VX, small, 9HE 600
8619520
Rittal
App. adapter OM 25A, AWG 12 (9340370)
Rittal
Rittal 5302037 VX IT Set for Separate Frame
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4596000?
- 4596000 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 4596000.
- What is the HS code for 4596000?
- The customs tariff (HS) code for 4596000 is 7326.90.
- Who manufactures 4596000?
- 4596000 is a Rittal product in the Enclosures range.
- Is a datasheet available for 4596000?
- Yes — the 4596000 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4596000?
- The minimum order quantity is 1.
- Is 4596000 available?
- Yes — 4596000 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
