Rittal

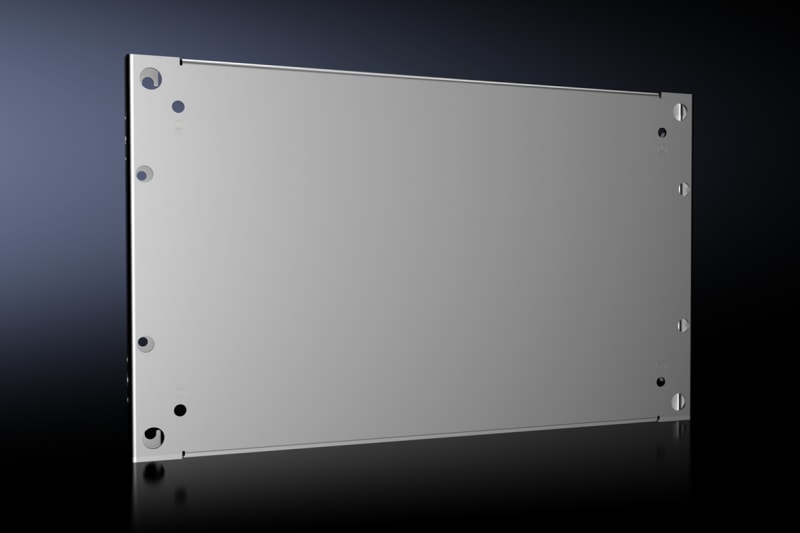

Partial Mounting Plate VX 600X600
Part number8617530EAN / GTIN4028177919389HS code9403.99
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8617530 Manufacturer description: VX Partial mounting plate, dimensions: 500x500 mm. Partial Mounting Plate VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8617530
- EAN / GTIN
- 4028177919389
- Sales unit
- pcs
- Model designation
- VX 8617.530
- Product type
- Partial Mounting Plates
- Material
- Carbon steel, 2.5 mm
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Suitable for door width
- 600 mm
- Installation options
- The installation can be done either standing up as a vertical mounting surface or lying flat as a horizontal floor; Attachment is directly on the enclosure section; It is attached via the system chassis at any mounting level in the enclosure in the case of an advanced design; For multi-level installation of the partial mounting plates one behind the other, they can be made swingable through the hinge attachment for quick access to the levels behind them
- Dimensions
- Width: 500 mm; Depth: 500 mm
- Suitable for enclosure type
- VX; VX SE; PC
- Packaging unit
- 1 pc(s).
- Net weight
- 6.5 kg
- Gross weight
- 6.8 kg
- PCF/VE (cradle-to-gate)
- 24.3 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC000213
- ECLASS 8.0
- 27409216
- Width
- 500 mm
- Height
- 500 mm
- Perforated
- No
- Surface protection
- Galvanised
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177919389
- SAP 1200107035
- Code 81956076
Product Documentation
