Rittal

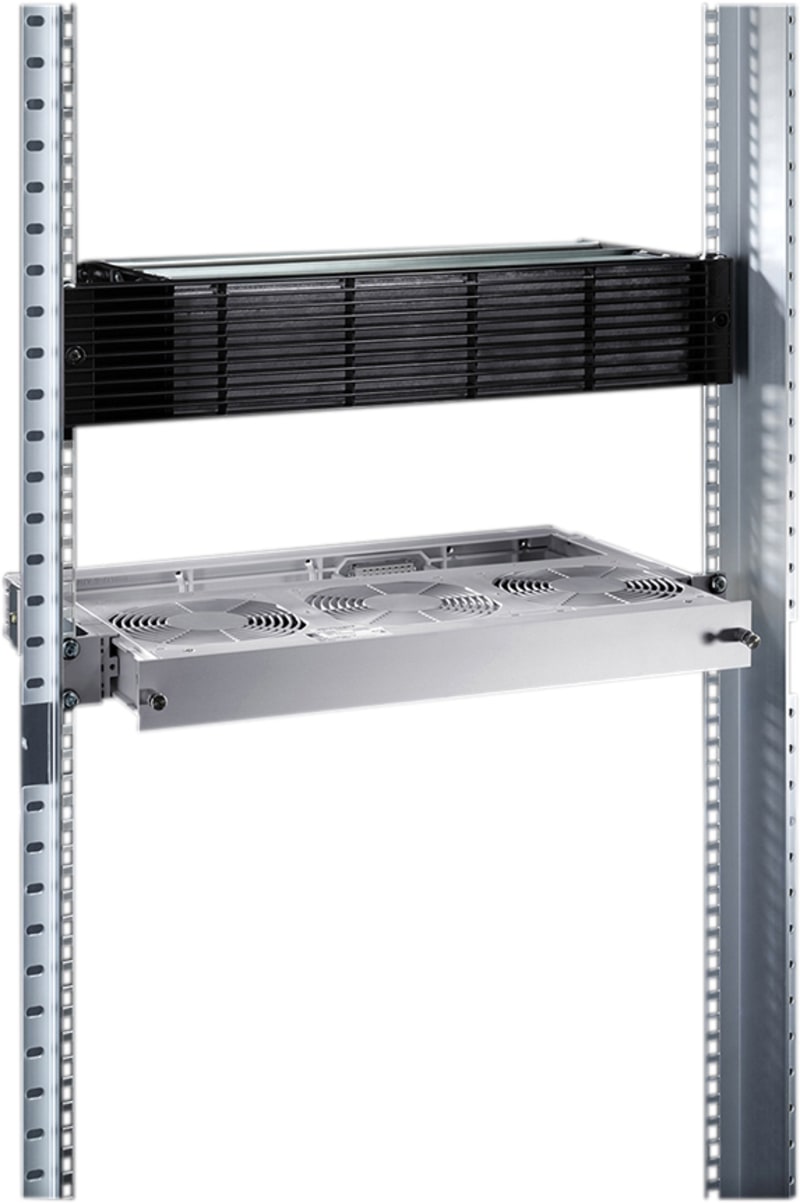

19'' Pressure Fan 2HE
Part number3144000EAN / GTIN4028177037137HS code8414.51
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3144000 Manufacturer description: SK tangential fan, for 482.6 mm (19), 188.3 cfm 230 V, 50/60 Hz, WHD: 482.6 x 88 x 158 mm. 19'' Pressure Fan 2HE.
Technical Specifications
- Manufacturer part number (MPN)
- 3144000
- EAN / GTIN
- 4028177037137
- Sales unit
- pcs
- Model designation
- SK 3144.000
- Product type
- Tangential fans for 482.6 mm (19")
- Color
- RAL 9005
- Supply includes
- Wired unit ready for connection; Filter Mat
- Speed
- 2,245 rpm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 37 W; At 60 Hz: 46 W
- Dimensions
- Width: 482.6 mm; Height: 88 mm; Depth: 163 mm
- Noise pressure level
- At 50 Hz: 52 dB(A); At 60 Hz: 62 dB(A)
- Maximum static pressure difference
- 65 ‐ 70 Pa
- Operating temperature range
- -10 °C...55 °C; 14 °F...131 °F
- Internal circuit at 50 Hz
- 320 m³/h; 188.3 cfm
- Internal circuit at 60 Hz
- 330 m³/h; 194.2 cfm
- Packaging unit
- 1 pc(s).
- Net weight
- 2.2 kg
- Gross weight
- 2.4 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Colour
- Grey
- Width
- 4826 mm
- Height
- 88 mm
- Depth
- 163 mm
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- Yes
- Number of fans
- 1
- EMC-version
- No
- With protective cover
- No
- With filter
- No
- Rated power
- 37 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 320 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Noise emission
- 0 dB(A)
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.51
Cross References
- EAN 4028177037137
- SAP 1000508069
- Code 8357503
Product Documentation
Document preview: Rittal 3144000 — Data Sheet (OEM)
